Three-dimensional particle streak velocimetry based on optical coherence tomography for assessing preimplantation embryo movement in mouse oviduct in vivo.

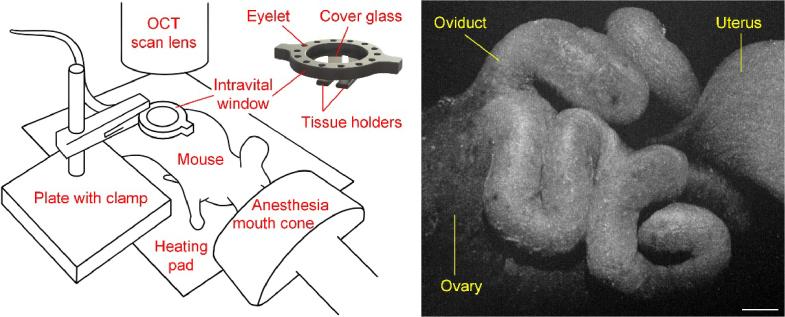

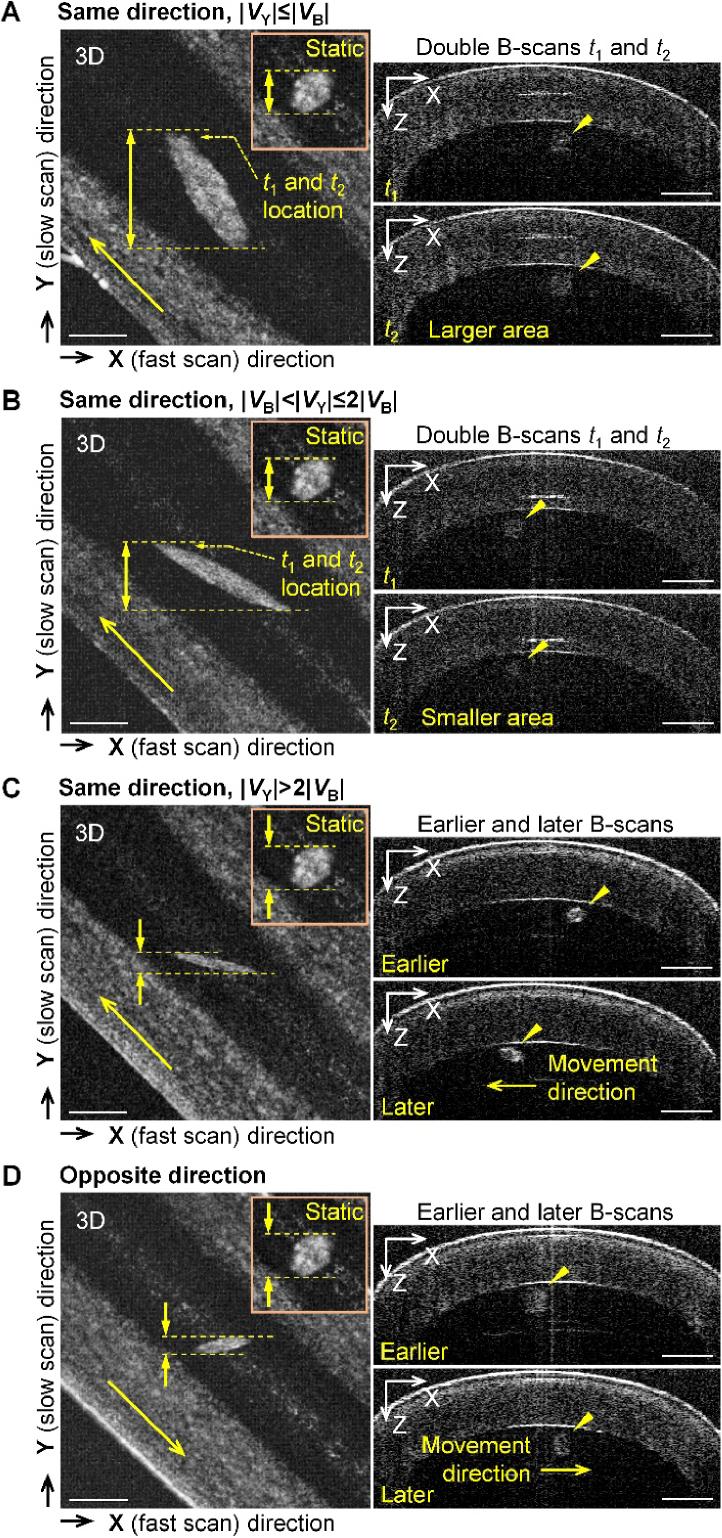

The mammalian oviduct (or fallopian tube) is a tubular organ hosting reproductive events leading to pregnancy. Dynamic 3D imaging of the mouse oviduct with optical coherence tomography (OCT) has recently emerged as a promising approach to study the hidden processes vital to elucidate the role of oviduct in mammalian reproduction and reproductive disorders. In particular, with an intravital window, OCT imaging is a powerful solution to studying how the oviduct transports preimplantation embryos towards the uterus for pregnancy, a long-standing question that is critical for uncovering the functional cause of tubal ectopic pregnancy. However, simultaneously tracking embryo movement and acquiring large-field-of-view images of oviduct activity in 3D has been challenging due to the generally limited volumetric imaging rate of OCT. A lack of OCT-based 3D velocimetry method for large, sparse particles acts as a technical hurdle for analyzing the mechanistic process of the embryo transport. Here, we report a new particle streak velocimetry method to address this hurdle. The method relies on the 3D streak of a moving particle formed during the acquisition of a single OCT volume, where double B-scans are acquired at each B-scan location to resolve ambiguity in assessing the movement of particle. We validated this method with the gold-standard, direct volumetric particle tracking in a flow phantom, and we demonstrated its applications for simultaneous velocimetry of embryos and imaging of oviduct. This work sets the stage for quantitative understanding of the oviduct transport function , and the method fills in a gap in OCT-based velocimetry, providing the potential to enable new applications in 3D flow imaging.
