pulmonary mucus hydration assay using rotational and translational diffusion of gold nanorods with polarization-sensitive optical coherence tomography.

SIGNIFICANCE

Assessing the nanostructure of polymer solutions and biofluids is broadly useful for understanding drug delivery and disease progression and for monitoring therapy.

AIM

Our objective is to quantify bronchial mucus solids concentration (wt. %) during hypertonic saline (HTS) treatment via nanostructurally constrained diffusion of gold nanorods (GNRs) monitored by polarization-sensitive optical coherence tomography (PS-OCT).

APPROACH

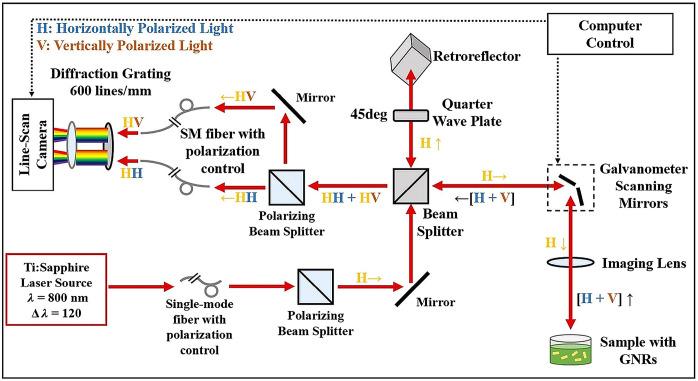

Using PS-OCT, we quantified GNR translational () and rotational () diffusion coefficients within polyethylene oxide solutions (0 to 3 wt. %) and human bronchial epithelial cell (hBEC) mucus (0 to 6.4 wt. %). Interpolation of and data is used to develop an assay to quantify mucus concentration. The assay is demonstrated on the mucus layer of an air-liquid interface hBEC culture during HTS treatment.

RESULTS

In polymer solutions and mucus, and monotonically decrease with increasing concentration. is more sensitive than to changes above 1.5 wt. % of mucus and exhibits less intrasample variability. Mucus on HTS-treated hBEC cultures exhibits dynamic mixing from cilia. A region of hard-packed mucus is revealed by measurements.

CONCLUSIONS

The extended dynamic range afforded by simultaneous measurement of and of GNRs using PS-OCT enables resolving concentration of the bronchial mucus layer over a range from healthy to disease in depth and time during HTS treatment .
