Li Jiangnan, Zhang Xinran, Fan Mengtian, Chen Yinlin, Ma Yujie, Smith Gemma L, Vitorica-Yrezabal Iñigo J, Lee Daniel, Xu Shaojun, Schröder Martin, Yang Sihai
Department of Chemistry, University of Manchester, Manchester, M13 9PL, U.K.
College of Chemistry and Molecular Engineering, Beijing National Laboratory for Molecular Sciences, Peking University, Beijing 100871, China.
J Am Chem Soc. 2024 May 22;146(20):14048-14057. doi: 10.1021/jacs.4c02405. Epub 2024 May 7.

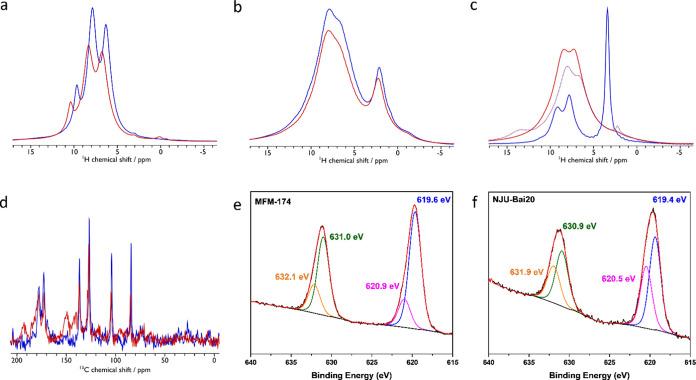

Optimization of active sites and stability under irradiation are important targets for sorbent materials that might be used for iodine (I) storage. Herein, we report the direct observation of I binding in a series of Cu(II)-based isostructural metal-organic frameworks, MFM-170, MFM-172, MFM-174, NJU-Bai20, and NJU-Bai21, incorporating various functional groups (-H, -CH, - NH, -C≡C-, and -CONH-, respectively). MFM-170 shows a reversible uptake of 3.37 g g and a high packing density of 4.41 g cm for physiosorbed I. The incorporation of -NH and -C≡C- moieties in MFM-174 and NJU-Bai20, respectively, enhances the binding of I, affording uptakes of up to 3.91 g g. In addition, an exceptional I packing density of 4.83 g cm is achieved in MFM-174, comparable to that of solid iodine (4.93 g cm). crystallographic studies show the formation of a range of supramolecular and chemical interactions [I···N, I···HN] and [I···C≡C, I-C═C-I] between -NH, -C≡C- sites, respectively, and adsorbed I molecules. These observations have been confirmed via a combination of solid-state nuclear magnetic resonance, X-ray photoelectron, and Raman spectroscopies. Importantly, γ-irradiation confirmed the ultraresistance of MFM-170, MFM-174, and NJU-Bai20 suggesting their potential as efficient sorbents for cleanup of radioactive waste.
对于可能用于碘(I)储存的吸附剂材料而言,优化活性位点以及在辐照下的稳定性是重要目标。在此,我们报告了在一系列基于Cu(II)的同构金属有机框架MFM - 170、MFM - 172、MFM - 174、NJU - Bai20和NJU - Bai21中碘结合的直接观察结果,这些框架分别包含各种官能团(-H、-CH、-NH、-C≡C-和-CONH-)。MFM - 170对物理吸附的碘显示出3.37 g/g的可逆吸附量和4.41 g/cm³的高堆积密度。分别在MFM - 174和NJU - Bai20中引入-NH和-C≡C-部分增强了碘的结合,吸附量高达3.91 g/g。此外,MFM - 174中实现了4.83 g/cm³的异常碘堆积密度,与固体碘的堆积密度(4.93 g/cm³)相当。晶体学研究表明,-NH、-C≡C-位点与吸附的碘分子之间分别形成了一系列超分子和化学相互作用[I···N、I···HN]和[I···C≡C、I - C═C - I]。这些观察结果已通过固态核磁共振、X射线光电子能谱和拉曼光谱的组合得到证实。重要的是,γ辐照证实了MFM - 170、MFM - 174和NJU - Bai20具有超抗性,表明它们有潜力作为清理放射性废物的高效吸附剂。
