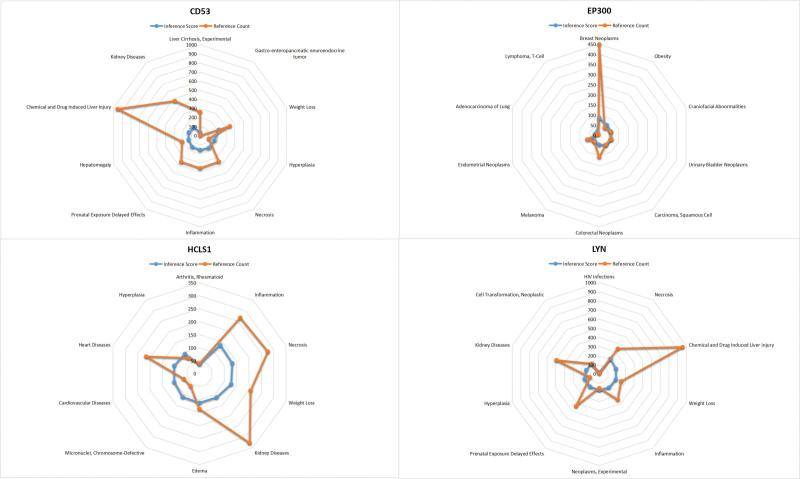

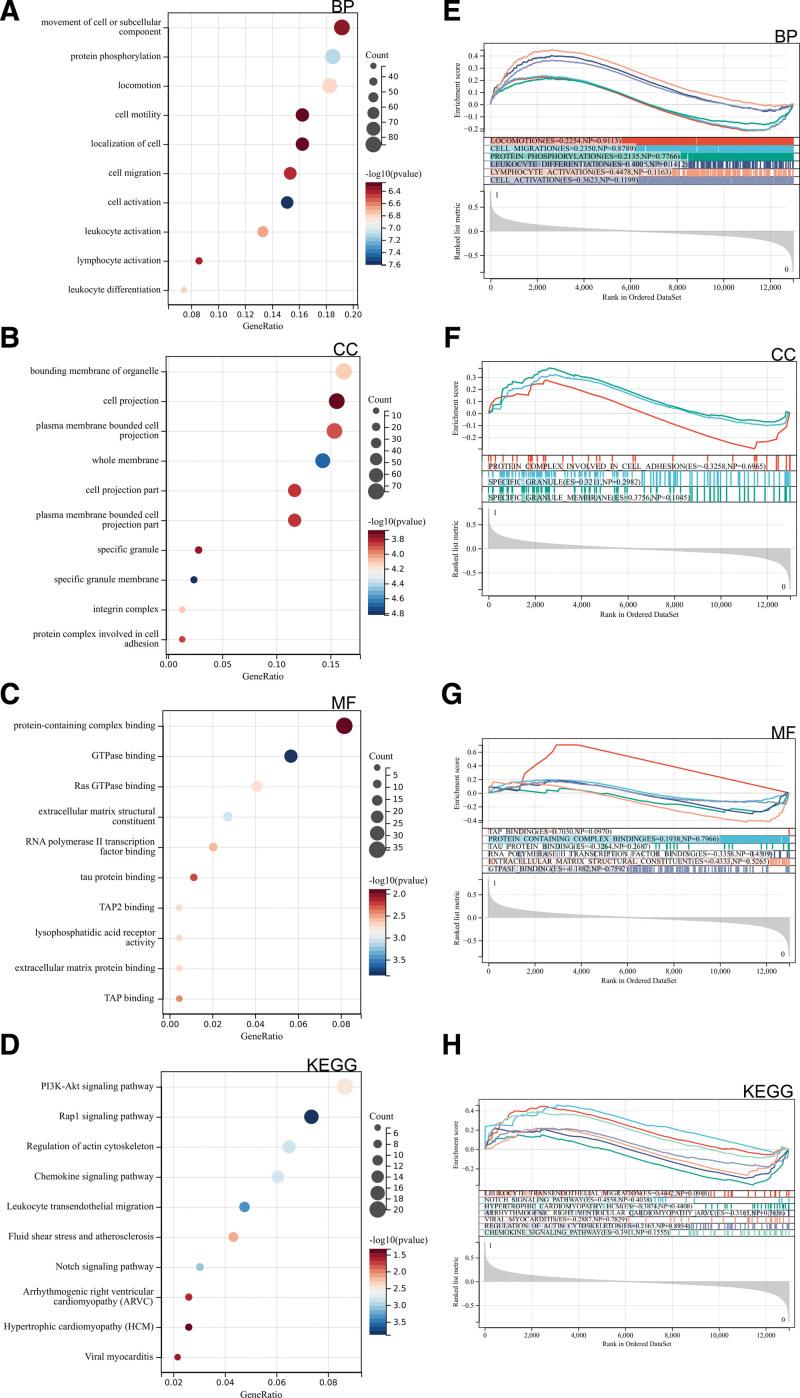

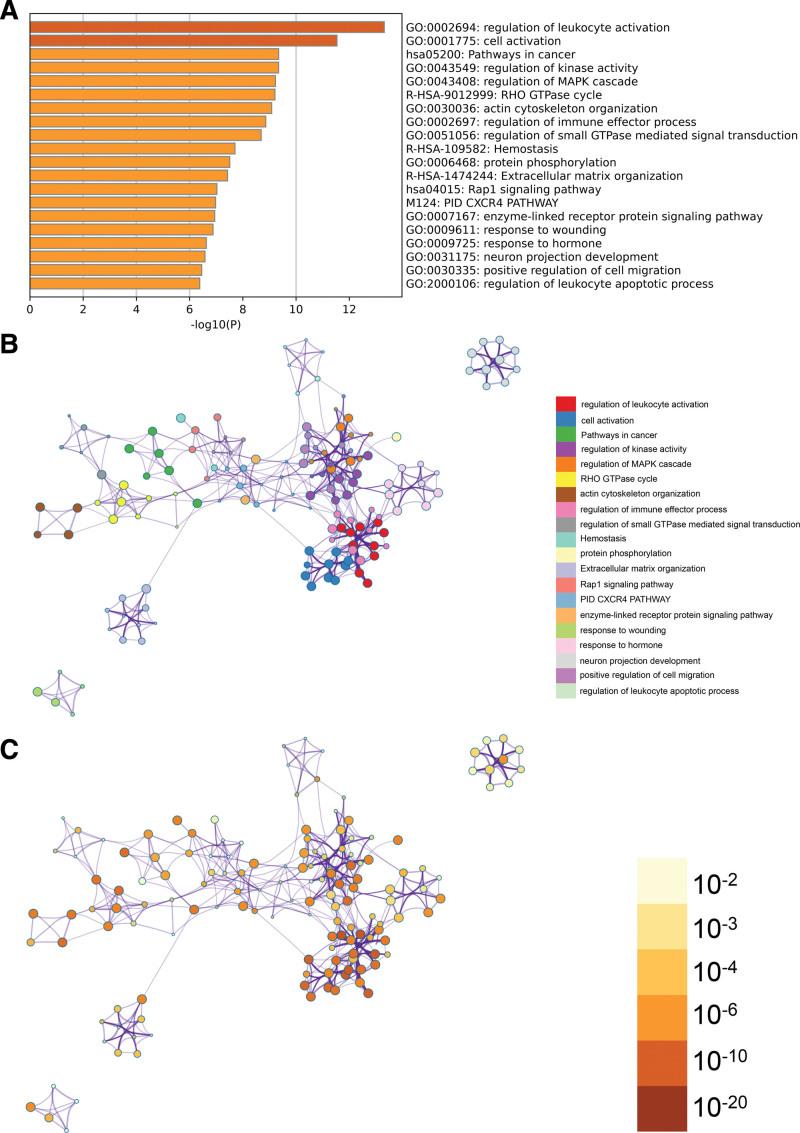

The correlation between hematopoietic cell-specific lyn substrate 1 (HCLS1) expression levels and heart failure (HF) remains unclear. HF datasets GSE192886 and GSE196656 profiles were generated from GPL24676 and GPL20301 platforms in gene expression omnibus (GEO) database and differentially expressed genes (DEGs) were obtained, which was followed by weighted gene co-expression network analysis, protein-protein interaction (PPI) networks, functional enrichment analysis and comparative toxicogenomics database (CTD) analysis. Heatmaps of gene expression levels were plotted. TargetScan was used to screen miRNAs regulating central DEGs. A total of 500 DEGs were found and mainly concentrated in leukocyte activation, protein phosphorylation, and protein complexes involved in cell adhesion, PI3K Akt signaling pathway, Notch signaling pathway, and right ventricular cardiomyopathy. PPI network identified 15 core genes (HCLS1, FERMT3, CD53, CD34, ITGAL, EP300, LYN, VAV1, ITGAX, LEP, ITGB1, IGF1, MMP9, SMAD2, RAC2). Heatmap shows that 4 genes (EP300, CD53, HCLS1, LYN) are highly expressed in HF tissue samples. We found that 4 genes (EP300, CD53, HCLS1, LYN) were associated with heart diseases, cardiovascular diseases, edema, rheumatoid arthritis, necrosis, and inflammation. HCLS1 is highly expressed in HF and maybe its target.
