Neuron Circuit Based on a Split-gate Transistor with Nonvolatile Memory for Homeostatic Functions of Biological Neurons.

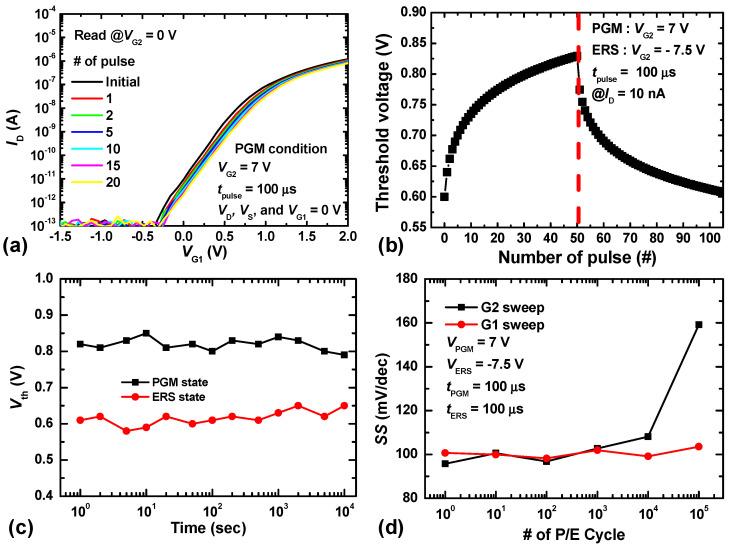

To mimic the homeostatic functionality of biological neurons, a split-gate field-effect transistor (S-G FET) with a charge trap layer is proposed within a neuron circuit. By adjusting the number of charges trapped in the SiN layer, the threshold voltage (V) of the S-G FET changes. To prevent degradation of the gate dielectric due to program/erase pulses, the gates for read operation and V control were separated through the fin structure. A circuit that modulates the width and amplitude of the pulse was constructed to generate a Program/Erase pulse for the S-G FET as the output pulse of the neuron circuit. By adjusting the V of the neuron circuit, the firing rate can be lowered by increasing the V of the neuron circuit with a high firing rate. To verify the performance of the neural network based on S-G FET, a simulation of online unsupervised learning and classification in a 2-layer SNN is performed. The results show that the recognition rate was improved by 8% by increasing the threshold of the neuron circuit fired.
