Denžić Lugomer Marija, Bilandžić Nina, Pavliček Damir, Novosel Tiana
Laboratory for Analytical Chemistry and Residues, Veterinary Department Križevci, Croatian Veterinary Institute, 48260 Križevci, Croatia.
Laboratory for Residues, Department of Veterinary Public Health, Croatian Veterinary Institute, 10000 Zagreb, Croatia.
Foods. 2024 Aug 2;13(15):2451. doi: 10.3390/foods13152451.

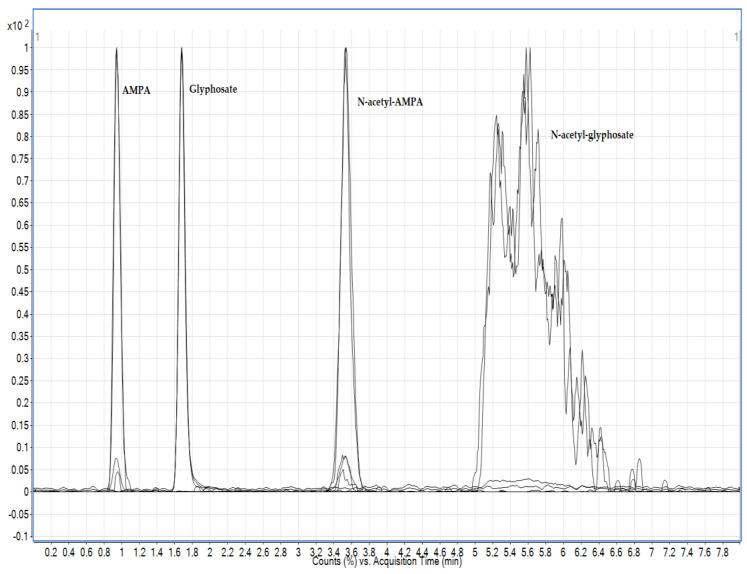

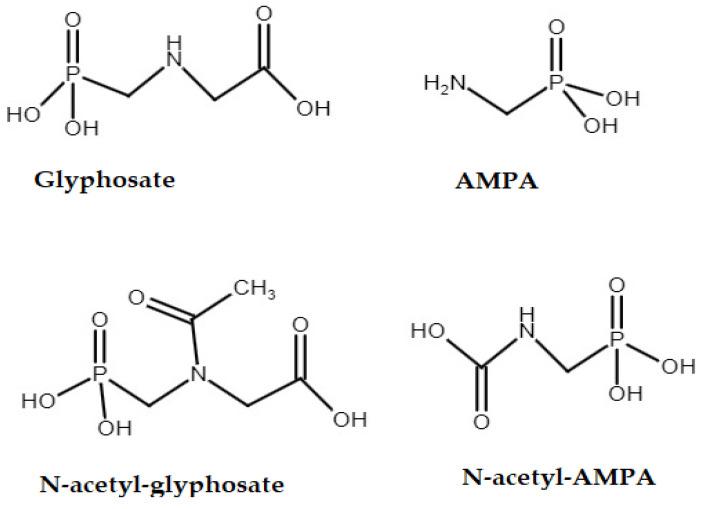

Glyphosate is the most used herbicide in agriculture. Its major metabolite is AMPA (aminomethylphosphonic acid), but N-acetyl-AMPA and N-acetylglyphosate are also metabolites of interest. For risk assessment, a general residue definition was proposed as the sum of glyphosate, AMPA, N-acetyl-glyphosate and N-acetyl-AMPA, expressed as glyphosate. A confirmatory method for glyphosate in fat, liver and kidneys, as well as a confirmatory method for AMPA and N-acetyl-glyphosate in all matrices, are still missing. In this paper, we present a method for the quantitative determination of glyphosate residues and its metabolites AMPA, N-acetyl-AMPA and N-acetyl-glyphosate by liquid chromatography-mass spectrometry (LC-MS/MS) in adipose tissue, liver, eggs, milk and honey without derivatization. Different chromatographic columns were tested, with the Hypercarb column providing the best results. The analytes were eluted with mobile phases of acidified water with 1.2% formic acid and 0.5% formic acid in acetonitrile. Sample purification procedures were also optimized by varying the solvent extraction mixtures (water, methanol and mixture ψ (methanol, water) = 1:1, each with the addition of 1% formic acid (/)), using different sorbents in solid phase extraction (SPE) (polymeric cationic (PCX) and anionic (PAX)) and using dispersive solid phase extraction (dSPE) (C18 and PSA) by modifying the extraction procedures. Finally, the analytes were extracted from the samples with 1% formic acid in water (/). Milk and adipose tissue were purified by the addition of dichloromethane, while liver and egg samples were purified by SPE with a mixed cation exchange sorbent and ultrafiltration with cut-off filters. The proposed analytical procedures were validated according to SANTE/11312/2021 guidelines: linearity, limits of quantification, precision and accuracy were determined for all matrices. The limits of quantification (LOQs) ranged from 0.025 to 0.2 mg kg. Precision, expressed as relative standard deviation, was <20%, while accuracy, expressed as analytical recovery, ranged from 70% to 120%. During method validation, the measurement uncertainty was estimated to be <50% for all analytes. Good validation parameters according to the SANTE document were achieved for all analytes. Therefore, the method can be considered reliable and sensitive enough for routine monitoring of polar pesticides. The application of the accredited method in routine analysis will provide data that are useful for the re-evaluation of risk assessment studies in foods of animal origin.
草甘膦是农业中使用最广泛的除草剂。其主要代谢物是氨甲基膦酸(AMPA),但N-乙酰-AMPA和N-乙酰草甘膦也是值得关注的代谢物。为进行风险评估,提出了一个通用残留定义,即草甘膦、AMPA、N-乙酰草甘膦和N-乙酰-AMPA的总和,以草甘膦表示。目前仍缺少脂肪、肝脏和肾脏中草甘膦的确证方法,以及所有基质中AMPA和N-乙酰草甘膦的确证方法。在本文中,我们介绍了一种通过液相色谱-质谱联用(LC-MS/MS)对脂肪组织、肝脏组织、鸡蛋、牛奶和蜂蜜中的草甘膦残留及其代谢物AMPA、N-乙酰-AMPA和N-乙酰草甘膦进行定量测定的方法,无需衍生化。测试了不同的色谱柱,其中Hypercarb柱效果最佳。使用含1.2%甲酸的酸化水和含0.5%甲酸的乙腈作为流动相洗脱分析物。还通过改变溶剂萃取混合物(水、甲醇以及ψ(甲醇,水)=1:1的混合物,每种都添加1%甲酸)、在固相萃取(SPE)中使用不同的吸附剂(聚合阳离子(PCX)和阴离子(PAX))以及通过修改萃取程序使用分散固相萃取(dSPE)(C18和PSA)对样品净化程序进行了优化。最后,用含1%甲酸的水从样品中提取分析物。牛奶和脂肪组织通过添加二氯甲烷进行净化,而肝脏和鸡蛋样品则通过使用混合阳离子交换吸附剂的SPE和用截留滤器进行超滤来净化。根据SANTE/11312/2021指南对所提出的分析程序进行了验证:测定了所有基质的线性、定量限、精密度和准确度。定量限(LOQ)范围为0.025至0.2 mg/kg。以相对标准偏差表示的精密度<20%,而以分析回收率表示的准确度范围为70%至120%。在方法验证过程中,估计所有分析物的测量不确定度<50%。所有分析物均根据SANTE文件获得了良好的验证参数。因此,该方法对于极性农药的常规监测可认为是可靠且灵敏的。认可方法在常规分析中的应用将为重新评估动物源性食品中的风险评估研究提供有用的数据。
