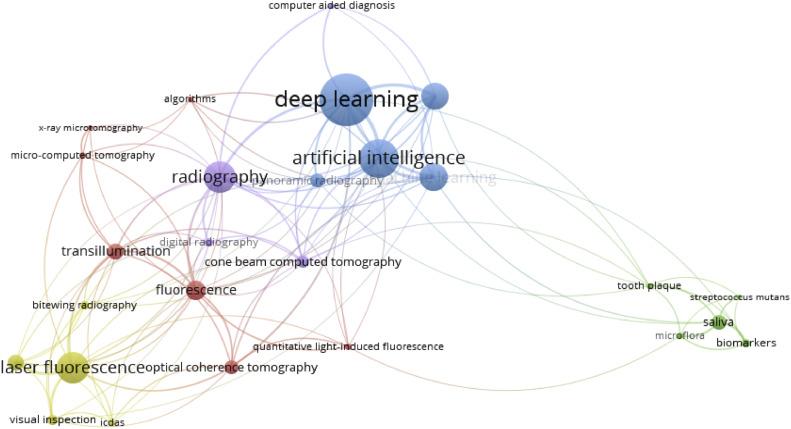

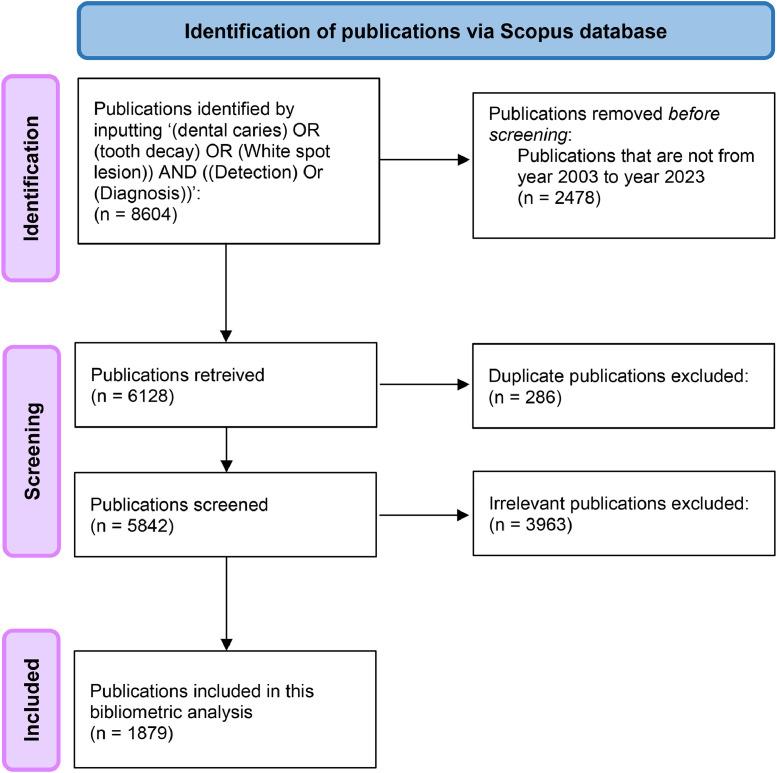

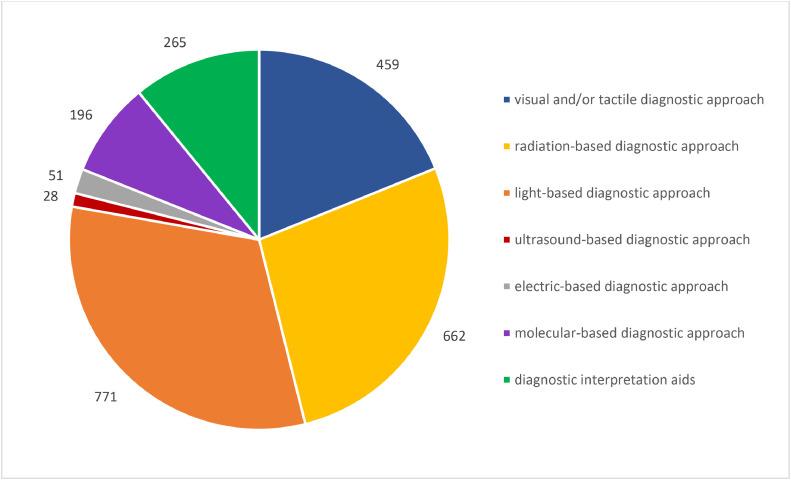

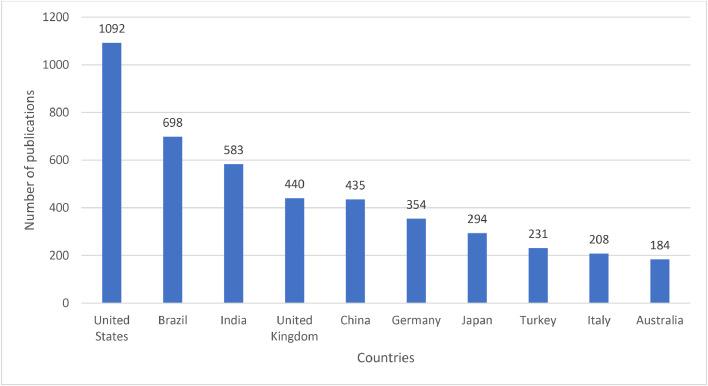

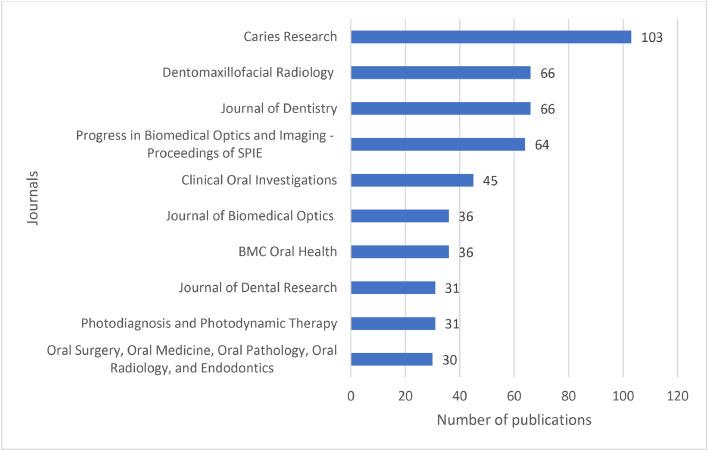

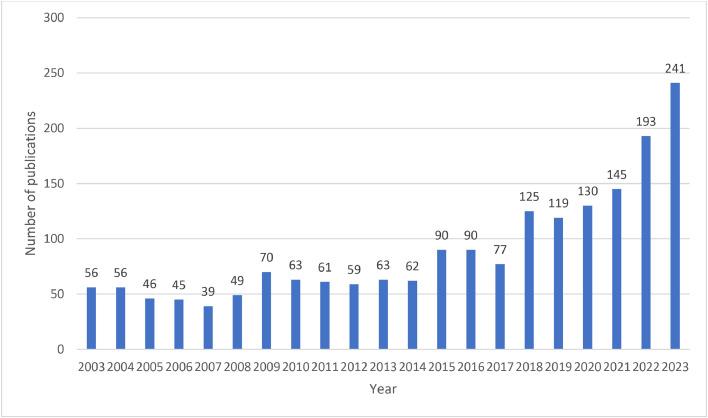

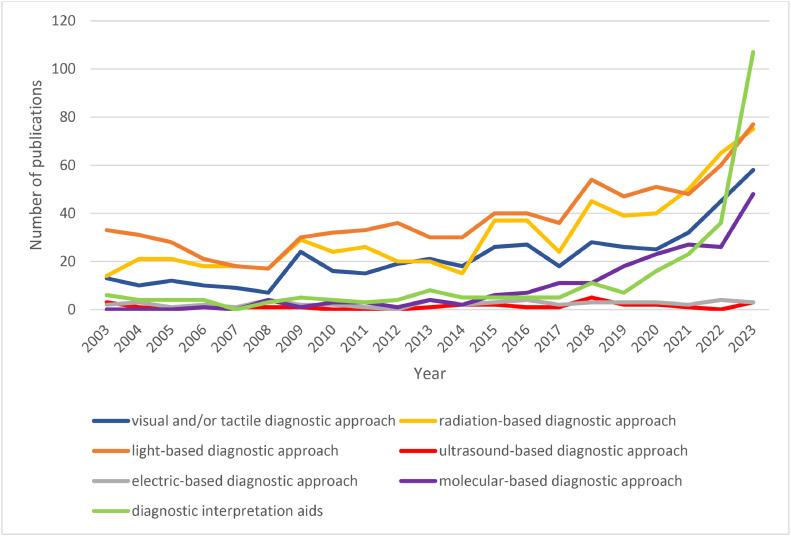

This study aims to provide an overview of the global research trends in the detection and diagnosis of dental caries in the past 20 years. A literature search was conducted in the Scopus Database to retrieve studies on the diagnostic approaches for dental caries published from January 2003 to December 2023. The diagnostic approaches in the retrieved studies were examined and the studies were categorized according to the diagnostic approaches investigated. Bibliometric data including journals, countries, affiliations, authors, and numbers of citations of the publications were summarised. The publications' keyword co-occurrence was analysed using VOSviewer. This bibliometric analysis included 1879 publications investigating seven categories of caries diagnostic approaches, including visual and/or tactile (n = 459; 19%), radiation-based (n = 662; 27%), light-based (n = 771; 32%), ultrasound-based (n = 28; 1%), electric-based (n = 51; 2%), molecular-based (n = 196; 8%) diagnostic approaches, as well as AI-based diagnostic interpretation aids (n = 265; 11%). An increase in the annual number of publications on caries diagnostic approaches was observed in the past 20 years. Caries Research (n = 103) presented the highest number of publications on caries diagnostic approaches. The country with the highest number of publications was the United States (n = 1092). The University of São Paulo was the institution that published the highest number of articles (n = 195). The publication with the highest citation has been cited 932 times. VOS viewer revealed that the most frequently occurring keywords were 'Deep Learning', 'Artificial Intelligence', 'Laser Fluorescence' and 'Radiography'. This bibliometric analysis highlighted an emerging global research trend in the detection and diagnosis approaches for dental caries in the past 20 years. An evident increase in publications on molecular-based caries diagnostic approaches and AI-based diagnostic interpretation aids was perceived over the last 5 years.
