基于β-氧化铅/单壁碳纳米管电极的高性能电化学肌酸酐传感器。

High-Performance Electrochemical Creatinine Sensors Based on β-Lead Dioxide/Single-Walled Carbon Nanotube Electrodes.

机构信息

Department of Bionano Engineering, Center for Bionano Intelligence Education and Research, Hanyang University, Ansan 426-791, Republic of Korea.

Division of Advanced Materials Engineering, Center for Advanced Materials and Parts of Powders (CAMP2), Kongju National University, 1223-24, Cheonan-daero, Seobuk-gu, Cheonan-si, Chungcheongnam-do 31080, Republic of Korea.

出版信息

Anal Chem. 2024 Oct 8;96(40):15941-15949. doi: 10.1021/acs.analchem.4c02985. Epub 2024 Sep 23.


DOI:10.1021/acs.analchem.4c02985
PMID:39313954
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11465222/
Abstract

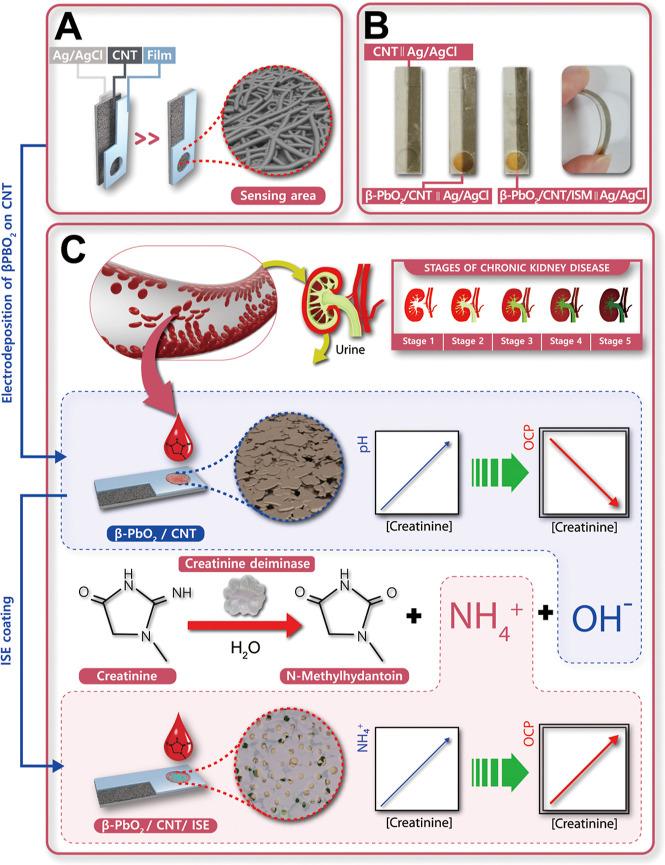

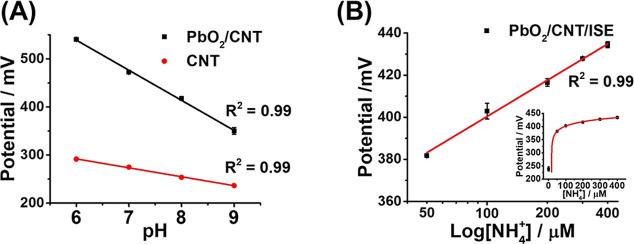

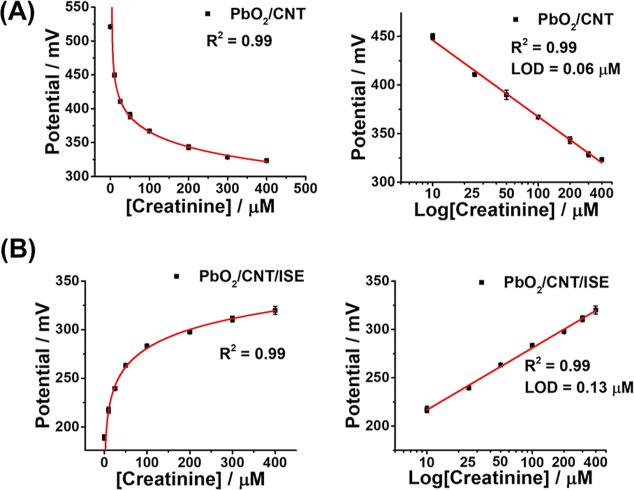

Creatinine is an important biomarker of kidney function and muscular metabolism. In this paper, we developed the β-lead dioxide/single-walled carbon nanotube (β-PbO/CNT) and the β-PbO/CNT ion-selective electrode (β-PbO/CNT/ISE), which were used as highly sensitive potentiometric sensors for creatinine detection. The fabricated electrodes exhibited highly pH-sensitive characteristics due to the synergistic effect of the electrochemical properties of CNT and β-PbO. Moreover, an ammonium-ion-selective membrane coating allowed the β-PbO/CNT electrode to be NH-selective for direct detection of the ammonium ion. By exploiting the electrochemical characteristics of these electrodes, the creatinine assay was established through the one-step selective conversion of creatinine by creatinine deiminase, in which the OH and NH generated by the enzymatic reaction were detected using β-PbO/CNT and β-PbO/CNT/ISE electrodes as pH- and NH-responsive sensors, respectively. The total creatinine assay can be completed within ∼5 min. The assay results from β-PbO/CNT and β-PbO/CNT/ISE showed excellent sensitivity values of -75.56 and 64.62 mV in the detection range of 10-400 μM with a fast response (20 s), and the limits of detection were calculated to be 0.06 and 0.13 μM, respectively. Moreover, the developed creatinine sensor showed high selectivity against 11 interfering bio/chemical species with negligible interferences (selectivity coefficient <10) and excellent repeatability (>97% within 25 cycles) and long-term stability for 4 weeks of storage. In addition, the feasibility and practicality of the device were successfully demonstrated in human serum tests, with recoveries of 95-104% for PbO/CNT and 92-110% for PbO/CNT/ISE.

摘要

肌酸酐是肾功能和肌肉代谢的重要生物标志物。在本文中,我们开发了β-氧化铅/单壁碳纳米管(β-PbO/CNT)和β-PbO/CNT 离子选择性电极(β-PbO/CNT/ISE),它们可用作肌酐检测的高灵敏度电位传感器。由于 CNT 和β-PbO 的电化学性质的协同作用,所制备的电极表现出高度的 pH 敏感性特征。此外,由于铵离子选择性膜涂层的存在,β-PbO/CNT 电极对铵离子具有 NH 选择性,可用于直接检测铵离子。利用这些电极的电化学特性,通过肌酸脱氨酶的一步选择性转化建立了肌酸的测定方法,其中通过酶促反应生成的 OH 和 NH 分别使用β-PbO/CNT 和β-PbO/CNT/ISE 电极作为 pH 和 NH 响应传感器进行检测。总肌酸测定可在约 5 分钟内完成。β-PbO/CNT 和β-PbO/CNT/ISE 的测定结果显示,在 10-400 μM 的检测范围内具有出色的灵敏度值(-75.56 和 64.62 mV),响应时间快(20 s),检测限分别计算为 0.06 和 0.13 μM。此外,开发的肌酸传感器对 11 种生物/化学干扰物质具有高选择性,干扰(选择性系数 <10)可忽略不计,并且具有出色的重复性(25 次循环内 >97%)和长达 4 周的储存期的长期稳定性。此外,该设备在人体血清测试中的可行性和实用性得到了成功验证,对于 PbO/CNT 和 PbO/CNT/ISE,回收率分别为 95-104%和 92-110%。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/9f5b5edd879f/ac4c02985_0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/d93025140fad/ac4c02985_0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/714a77dc7ed0/ac4c02985_0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/75900b20e8dc/ac4c02985_0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/ea8567c4051c/ac4c02985_0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/9f5b5edd879f/ac4c02985_0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/d93025140fad/ac4c02985_0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/714a77dc7ed0/ac4c02985_0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/75900b20e8dc/ac4c02985_0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/ea8567c4051c/ac4c02985_0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1bbe/11465222/9f5b5edd879f/ac4c02985_0005.jpg
