Effect of stretching ratio on the structure and enactment of porous PVDF-HFP hollow fiber membranes for CO absorption.

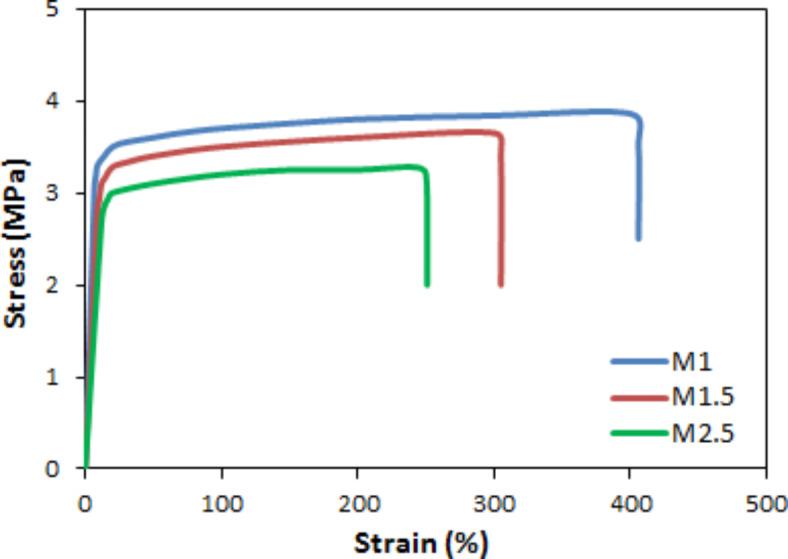

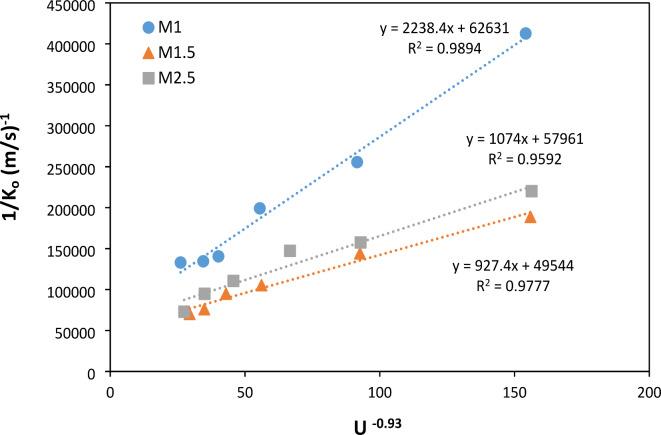

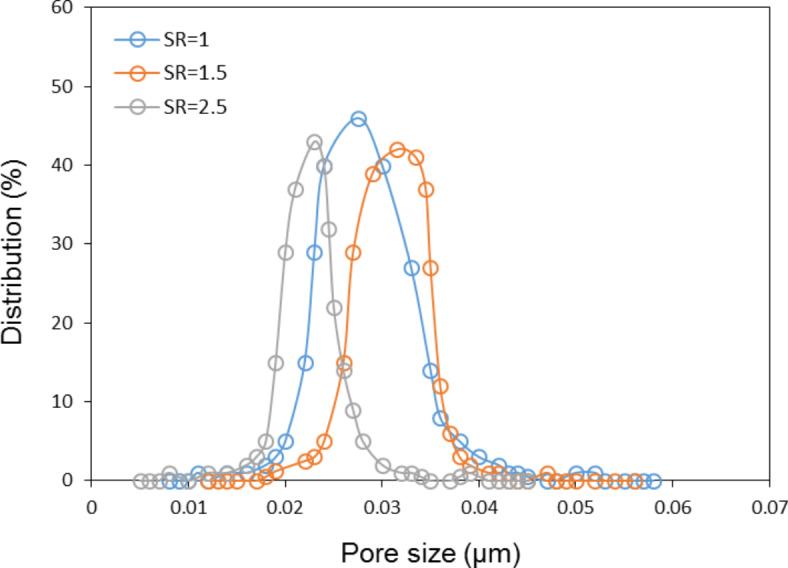

Carbon dioxide (CO) is responsible for increment of the Earth surface temperature and the subsequent environmental issues. In this regard, membrane contactor is one of the emerging technologies that can be applied for controlling CO emission. More specifically, the intrinsic structure of membrane plays an important role to govern the performance of CO absorption. In this study, considering stretching ratio (SR) as a key factor to affect membrane structural properties, highly porous poly(vinylidene fluoride-co-hexafluoropropylene) (PVDF-HFP) hollow fiber membranes were fabricated by a non-solvent induced phase separation method. The results showed that the membrane dimension and thickness were significantly reduced by optimizing the SR. The optimum membrane structure was found at SR of 1.5 where the mean pore size, CO permeance, collapsing pressure and liquid entry pressure of 0.032 μm, 3440 GPU, 550 kPa and 500 kPa were achieved, respectively. The prepared membranes showed open structure with overall porosity of more than 80%. The upgraded membrane at SR of 1.5 presented the maximum CO absorption flux of 9.8 × 10 mol/m s and the minimum mass transfer resistance of 49,544 (m/s). Furthermore, a stable CO absorption performance was achieved during 80 h continuous operation with a flux decline of only about 9%. The findings of this work demonstrated that by applying a cost-effective fabrication method, we can potentially enhance the PVDF-HFP membrane properties for CO adsorption without requiring an additional post-modification step.
