Assessment of Sub-micrometer-Sized Particles with Practical Activities in an Underground Coal Mine.

UNLABELLED

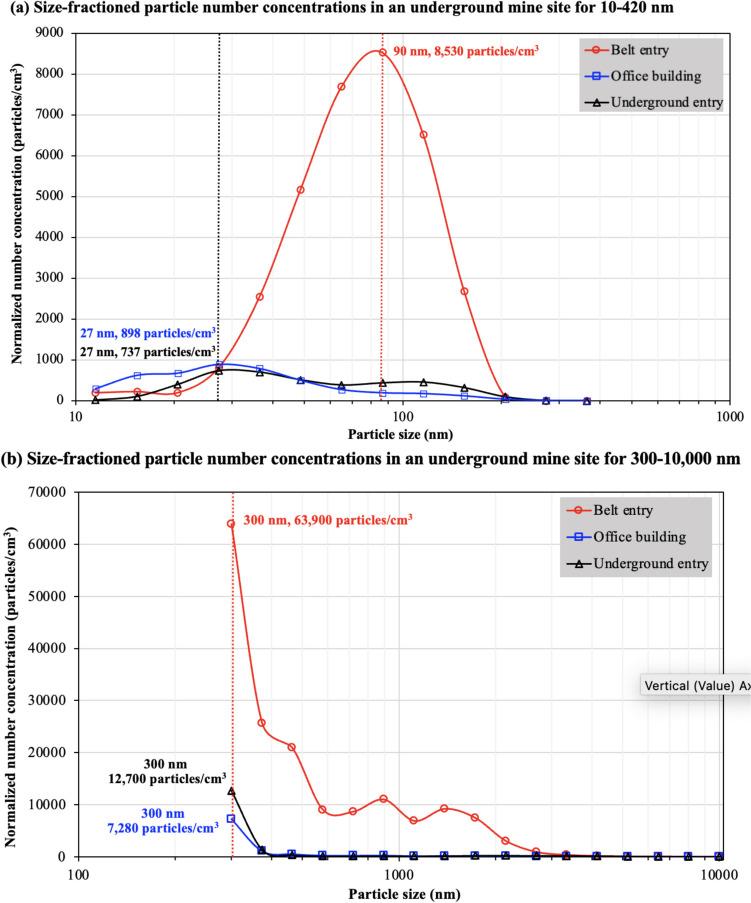

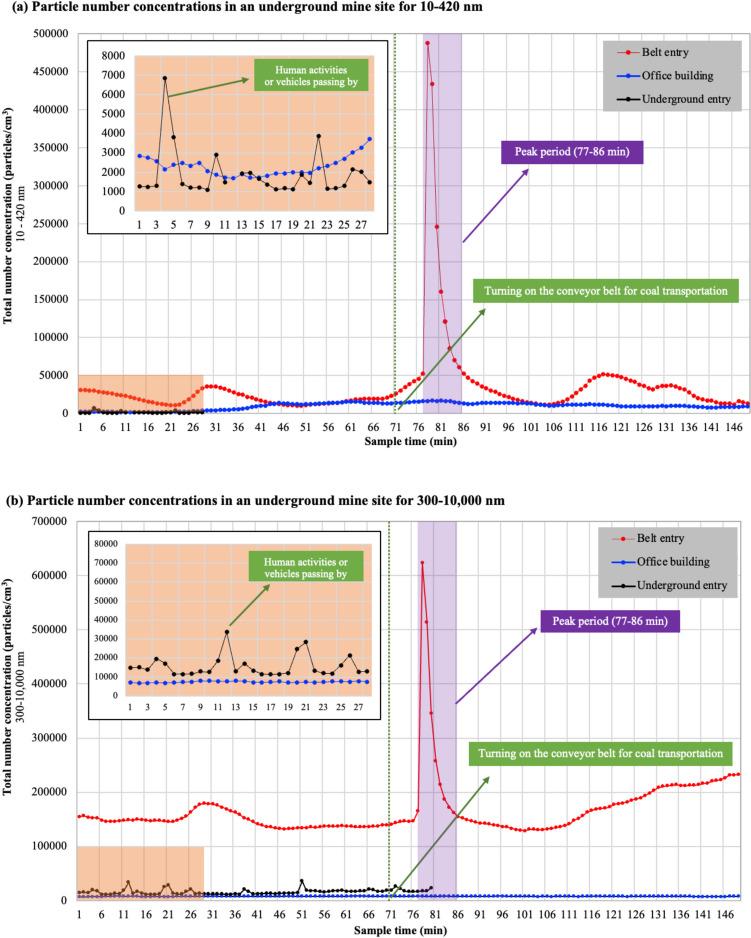

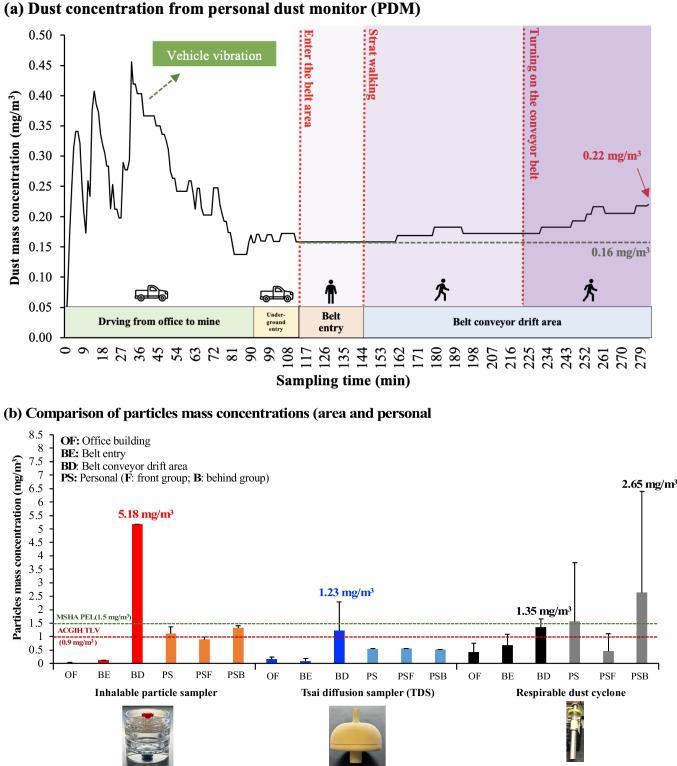

This assessment was designed to explore and characterize the airborne particles, especially for the sub-micrometer sizes, in an underground coal mine. Airborne particles present in the breathing zone were evaluated by using both (1) direct reading real-time instruments (RTIs) to measure real-time particle number concentrations in the workplaces and (2) gravimetric samplers to collect airborne particles to obtain mass concentrations and conduct further characterizations. Airborne coal mine particles were collected via three samplers: inhalable particle sampler (37 mm cassette with polyvinyl chloride (PVC) filter), respirable dust cyclone (10 mm nylon cyclone with 37 mm Zefon cassette and PVC filter), and a Tsai diffusion sampler (TDS). The TDS, a newly designed sampler, is for collecting particles in the nanometer and respirable size range with a polycarbonate filter and grid. The morphology and compositions of collected particles on the filters were characterized using electron microscopy (EM). RTIs reading showed that the belt entry had a greatly nine-times higher total particle number concentration in average (~ 34,700 particles/cm) than those measured at both the underground entry and office building (~ 4630 particles/cm). The belt entry exhibited not only the highest total particle number concentration, but it also had different particle size fractions, particularly in the submicron and smaller sizes. A high level of submicron and nanoparticles was found in the belt conveyor drift area (with concentrations ranging from 0.54 to 1.55 mg/m among three samplers). The data support that small particles less than 300 nm are present in the underground coal mine associated with dust generated from practical mining activities. The chemical composition of the air particles has been detected in the presence of Ca, Cu, Si, Al, Fe, and Co which were all found to be harmful to miners when inhaled.

SUPPLEMENTARY INFORMATION

The online version contains supplementary material available at 10.1007/s42461-024-01140-w.
