Deep learning models for differentiating three sinonasal malignancies using multi-sequence MRI.

PURPOSE

To develop MRI-based deep learning (DL) models for distinguishing sinonasal squamous cell carcinoma (SCC), adenoid cystic carcinoma (ACC) and olfactory neuroblastoma (ONB) and to evaluate whether the DL models could improve the diagnostic performance of Senior radiologist (SR) and Junior radiologist (JR).

METHODS

This retrospective analysis consisted of 465 patients (229 sinonasal SCCs, 128 ACCs and 108 ONBs). The training and validation cohorts included 325 and 47 patients and the independent external testing cohort consisted of 93 patients. MRI images included T2-weighted image (T2WI), contrast-enhanced T1-weighted image (CE-T1WI) and apparent diffusion coefficient (ADC). We analyzed the conventional MRI features to choose the independent predictors and built the conventional MRI model. Then we compared the macro- and micro- area under the curves (AUCs) of different sequences and different DL networks to formulate the best DL model [artificial intelligence (AI) model scheme]. With AI assistance, we observed the diagnostic performances between SR and JR. The diagnostic efficacies of SR and JR were assessed by accuracy, Recall, precision, F1-Score and confusion matrices.

RESULTS

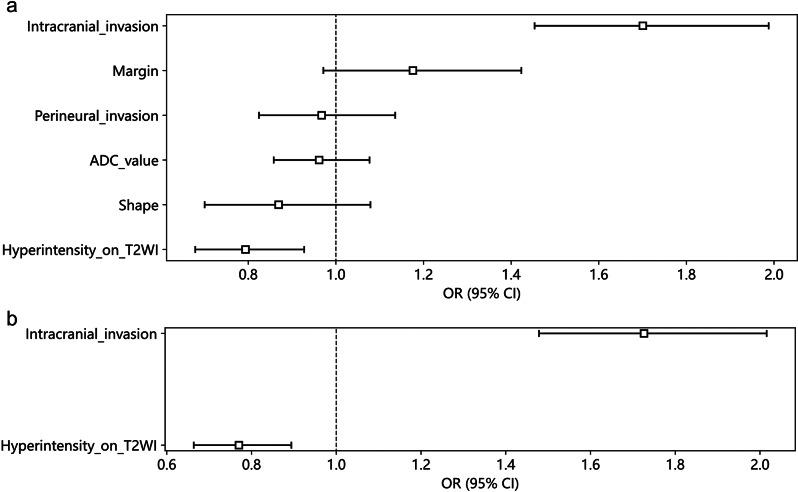

The independent predictors of conventional MRI included intensity on T2WI and intracranial invasion of sinonasal malignancies. With ExtraTrees (ET) classier, the conventional MRI model owned AUC of 78.8%. For DL models, ResNet101 network showed better performance than ResNet50 and DensNet121, especially for the mean fusion sequence (macro-AUC = 0.892, micro-AUC = 0.875, Accuracy = 0.810), and also good for the ADC sequence (macro-AUC = 0.872, micro-AUC = 0.874, Accuracy = 0.814). Grad-CAM showed that DL models focused on solid component of lesions. With the best AI scheme (ResNet101-mean sequence-based DL model) assistance, the diagnosis performances of SR (accuracy = 0.957, average Recall = 0.962, precision = 0.955, F1-Score = 0.957) and JR (accuracy = 0.925, average Recall = 0.917, precision = 0.931, F1-Score = 0.923) were significantly improved.

CONCLUSION

The ResNet101 network with mean sequence based DL model could effectively differential between sinonasal SCC, ACC and ONB and improved the diagnostic performances of both senior and junior radiologists.
