Structured Light Projection Using Image Guide Fibers for In Situ Photo-biofabrication.

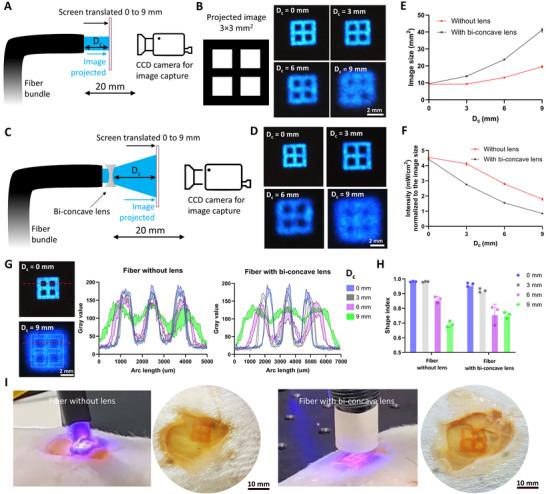

Light-based biofabrication techniques have revolutionized the field of tissue engineering and regenerative medicine. Specifically, the projection of structured light, where the spatial distribution of light is controlled at both macro and microscale, has enabled precise fabrication of complex three dimensional structures with high resolution and speed. However, despite tremendous progress, biofabrication processes are mostly limited to benchtop devices which limit the flexibility in terms of where the fabrication can occur. Here, a Fiber-assisted Structured Light (FaSt-Light) projection apparatus for rapid in situ crosslinking of photoresins is demonstrated. This approach uses image-guide fiber bundles which can project bespoke images at multiple wavelengths, enabling flexibility and spatial control of different photoinitiation systems and crosslinking chemistries and also the location of fabrication. Coupling of different sizes of fibers and different lenses attached to the fibers to project small (several mm) or large (several cm) images for material crosslinking is demonstrated. FaSt-Light allows control over the cross-section of the crosslinked resins and enables the introduction of microfilaments which can further guide cellular infiltration, differentiation, and anisotropic matrix production. The proposed approach can lead to a new range of in situ biofabrication techniques which improve the translational potential of photofabricated tissues and grafts.
