Xue Shixin, Li Mingxiao, Lopez-Rios Raymond, Ling Jingwei, Gao Zhengdong, Hu Qili, Qiu Tian, Staffa Jeremy, Chang Lin, Wang Heming, Xiang Chao, Bowers John E, Lin Qiang
Department of Electrical and Computer Engineering, University of Rochester, Rochester, NY, USA.
Department of Electrical and Computer Engineering, University of California Santa Barbara, Santa Barbara, CA, USA.
Light Sci Appl. 2025 May 30;14(1):209. doi: 10.1038/s41377-025-01872-4.

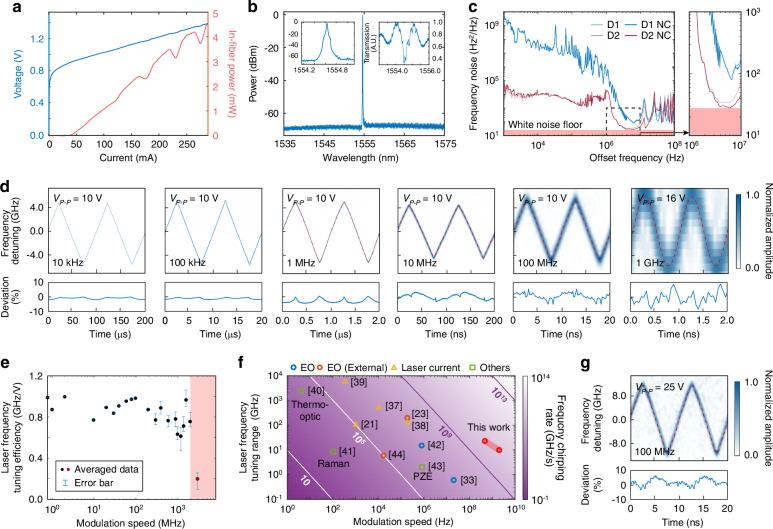

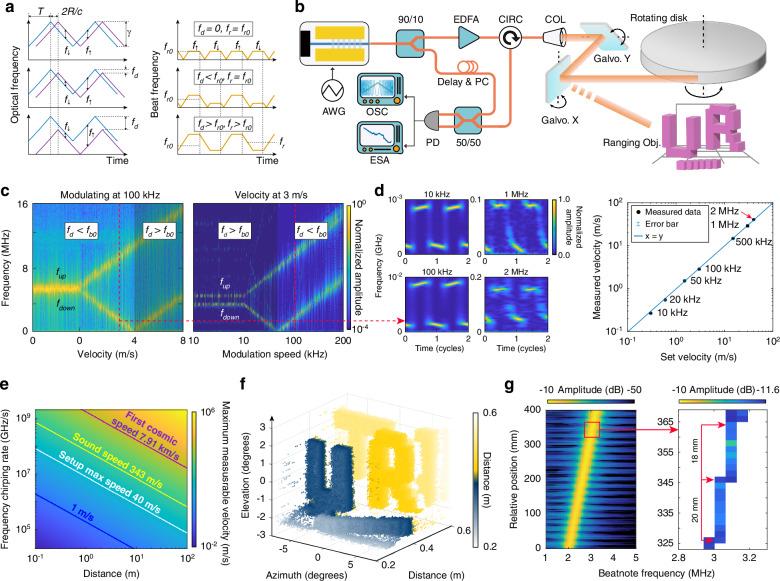

The invention of the laser unleashed the potential of optical metrology, leading to numerous advancements in modern science and technology. This reliance on lasers, however, also introduces a bottleneck for precision optical metrology, as it requires sophisticated photonic infrastructure for precise laser-wave control, leading to limited metrology performance and significant system complexity. Here, we take a key step toward overcoming this challenge by demonstrating a Pockels laser with multifunctional capabilities that elevate optical metrology to a new level. The chip-scale laser achieves a narrow intrinsic linewidth down to 167 Hz and a broad mode-hop-free tuning range up to 24 GHz. In particular, it delivers an unprecedented frequency chirping rate of up to 20 EHz/s and an exceptional modulation bandwidth exceeding 10 GHz, both of which are orders of magnitude greater than those of existing lasers. Leveraging this laser, we successfully achieve velocimetry at 40 m/s over a short distance of 0.4 m, and measurable velocities up to the first cosmic velocity at 1 m away-a feat unattainable with conventional ranging approaches. At the same time, we achieve distance metrology with a ranging resolution of <2 cm. Furthermore, for the first time to our knowledge, we implement a dramatically simplified architecture for laser frequency stabilization by directly locking the laser to an external reference gas cell without requiring additional external light control. This approach enables long-term laser stability with a frequency fluctuation of only ±6.5 MHz over 60 min. The demonstrated Pockels laser combines elegantly high laser coherence with ultrafast frequency reconfigurability and superior multifunctional capability. We envision its profound impact across diverse fields including communication, sensing, autonomous driving, quantum information processing, and beyond.

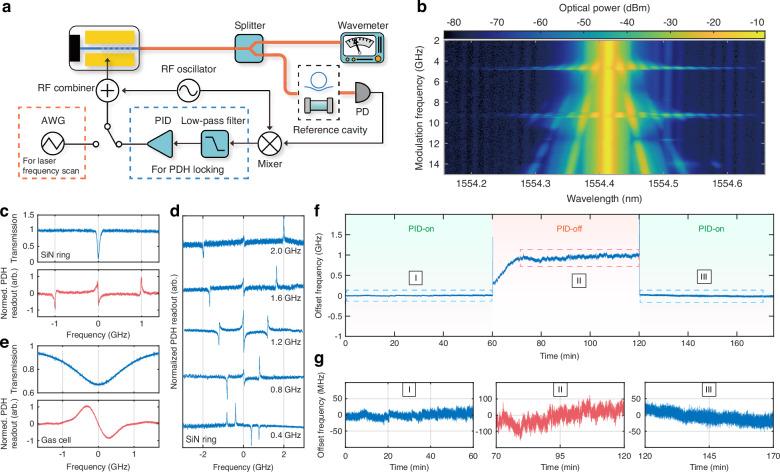

激光的发明释放了光学计量学的潜力,推动了现代科学技术的众多进步。然而,对激光的这种依赖也给精密光学计量带来了瓶颈,因为它需要复杂的光子基础设施来精确控制激光波,导致计量性能受限且系统复杂度显著增加。在此,我们朝着克服这一挑战迈出了关键一步,展示了一种具有多功能的泡克尔斯盒激光,将光学计量提升到了一个新水平。这种芯片级激光实现了低至167 Hz的窄本征线宽和高达24 GHz的宽无模式跳变调谐范围。特别是,它提供了高达20 EHz/s的前所未有的频率啁啾率和超过10 GHz的卓越调制带宽,这两者都比现有激光高出几个数量级。利用这种激光,我们成功地在0.4 m的短距离内实现了40 m/s的测速,并且在1 m远处实现了高达第一宇宙速度的可测量速度——这是传统测距方法无法实现的壮举。同时,我们实现了测距分辨率小于2 cm的距离计量。此外,据我们所知,我们首次通过直接将激光锁定到外部参考气室,实现了一种大幅简化的激光频率稳定架构,无需额外的外部光控制。这种方法实现了长期的激光稳定性,在60分钟内频率波动仅为±6.5 MHz。所展示的泡克尔斯盒激光优雅地将高激光相干性与超快频率可重构性和卓越的多功能能力结合在一起。我们设想它将在通信、传感、自动驾驶、量子信息处理等多个领域产生深远影响。
