Kratky Tim, Kraus Jürgen, Leidinger Paul M, Zeller Patrick, Genuzio Francesca, Sala Alessandro, Menteş Tevfik Onur, Locatelli Andrea, Günther Sebastian
Department of Chemistry, Physical Chemistry with Focus on Catalysis, Technical University of Munich (TUM), Lichtenbergstr 4, Garching 85748, Germany.
Catalysis Research Center, Ernst-Otto-Fischer-Street. 1, Garching 85748, Germany.
ACS Appl Mater Interfaces. 2025 Jul 16;17(28):40937-40950. doi: 10.1021/acsami.5c06939. Epub 2025 Jul 2.

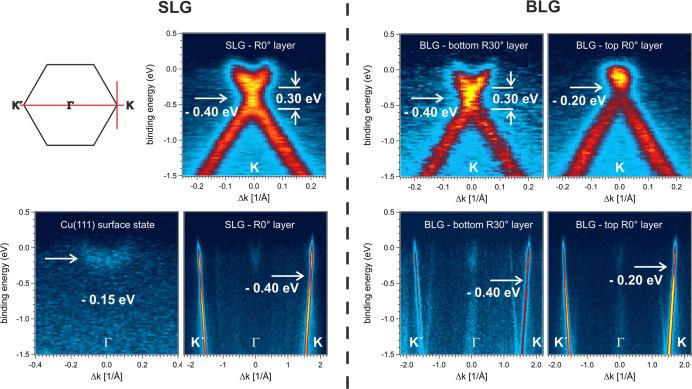

We report on a gentle procedure for the complete electronic decoupling of graphene from Cu. The procedure can be added to the growth protocol of graphene synthesis by chemical vapor deposition making use of the widely unnoticed silicon release from hot wall quartz tube reactors. So far, Si release was observed if the effect was large, so that it deteriorates the grown graphene. However, the effect can also be used to turn the electronic band structure of CVD-grown graphene on Cu into that of free-standing graphene as shown in a combined spectroscopic photoelectron and low energy electron microscopy study. Adding a foil pretreatment to the synthesis protocol in the reactor turns the polycrystalline foil into (111)-textured Cu, and the electronic band structure of CVD-grown graphene on Cu(111) is achieved with n-doping by -0.4 eV and band gap formation of 0.3 eV. If, however, graphene is synthesized on a Si-loaded Cu foil, subsequent oxygen exposure in the reactor segregates the dissolved Si to the surface and converts it to intercalated silica without destroying the covering graphene. The graphene decouples electronically, and the textbook-like electronic band structure of free-standing graphene emerges. The alternating stacking of 30°-rotated layers in thicker graphene leads to electronically noninteracting layers. Moreover, in angle-resolved photoemission, replica bands due to Umklapp processes emerge without the opening of an energy gap.
我们报道了一种将石墨烯与铜完全电子解耦的温和方法。该方法可添加到利用热壁石英管反应器中广泛未被注意到的硅释放的化学气相沉积石墨烯合成生长方案中。到目前为止,只有当硅释放效应较大时才会被观察到,这会使生长的石墨烯质量下降。然而,如在结合光谱光电子和低能电子显微镜研究中所示,该效应也可用于将铜上化学气相沉积生长的石墨烯的电子能带结构转变为独立石墨烯的能带结构。在反应器的合成方案中添加箔预处理可将多晶箔转变为(111)织构的铜,并且在铜(111)上化学气相沉积生长的石墨烯的电子能带结构通过n型掺杂-0.4 eV和形成0.3 eV的带隙得以实现。然而,如果在负载硅的铜箔上合成石墨烯,随后在反应器中进行氧暴露会使溶解的硅偏析到表面并将其转化为插入的二氧化硅,而不会破坏覆盖的石墨烯。石墨烯发生电子解耦,独立石墨烯的教科书式电子能带结构出现。在较厚的石墨烯中,30°旋转层的交替堆叠导致电子非相互作用层。此外,在角分辨光电子能谱中,由于倒格矢过程产生的复制带出现,而没有能隙的打开。
