Borum Raina M, Retout Maurice, Creyer Matthew N, Chang Yu-Ci, Gregorio Karlo, Jokerst Jesse V
Department of NanoEngineering, University of California, San Diego, La Jolla, CA, 92093, USA.
Materials Science Department, University of California, San Diego, La Jolla, CA, 92093, USA.
Npj Imaging. 2024 Mar 4;2(1):4. doi: 10.1038/s44303-024-00008-4.

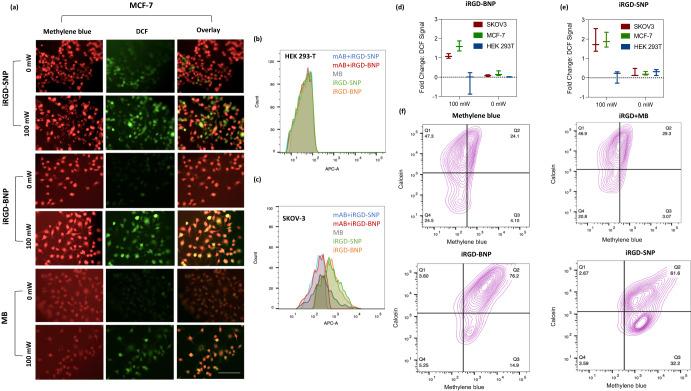

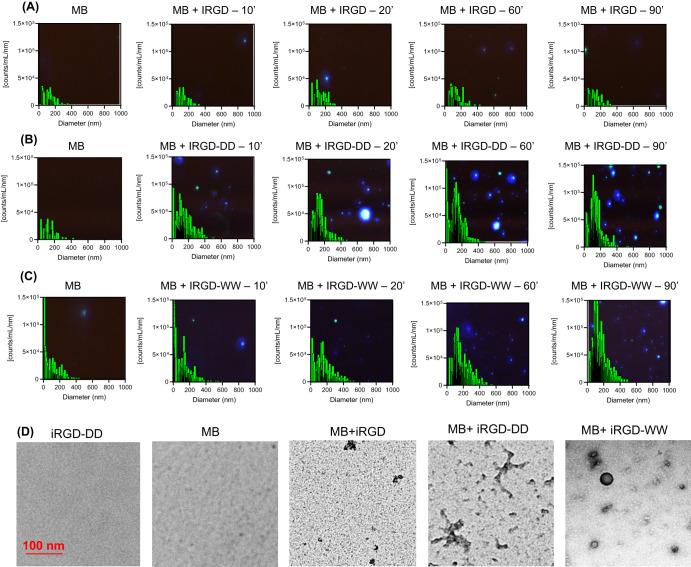

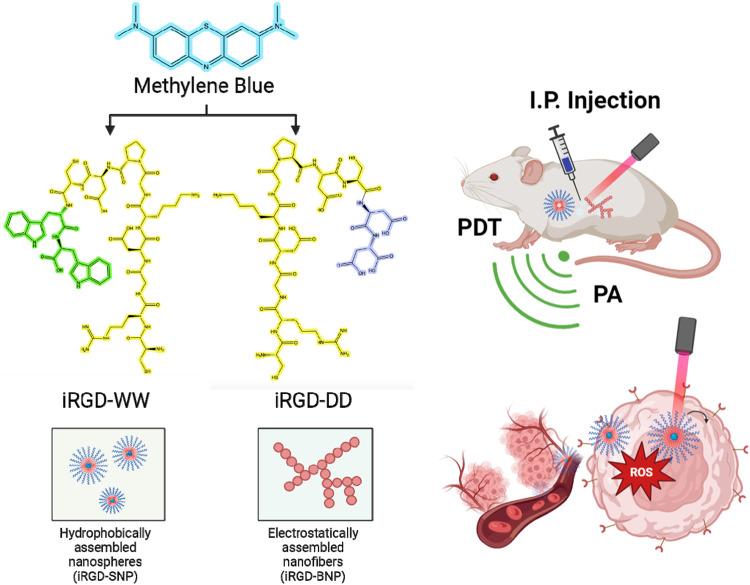

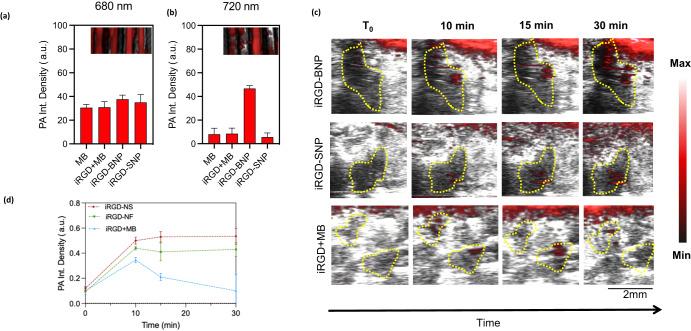

We report noncovalent assemblies of iRGD peptides and methylene blue dyes via electrostatic and hydrophobic stacking. These resulting nanomaterials could bind to cancer cells, image them with photoacoustic signal, and then treat them via photodynamic therapy. We first assessed the optical properties and physical properties of the materials. We then evaluated their utility for live cell targeting, in vivo imaging, and in vivo photodynamic toxicity. We tuned the performance of iRGD by adding aspartic acid (DD) or tryptophan doublets (WW) to the peptide to promote electrostatic or hydrophobic stacking with methylene blue, respectively. The iRGD-DD led to 150-nm branched nanoparticles, but iRGD-WW produced 200-nm nano spheres. The branched particles had an absorbance peak that was redshifted to 720 nm suitable for photoacoustic signal. The nanospheres had a peak at 680 nm similar to monomeric methylene blue. Upon continuous irradiation, the nanospheres and branched nanoparticles led to a 116.62% and 94.82% increase in reactive oxygen species in SKOV-3 cells relative to free methylene blue at isomolar concentrations suggesting photodynamic toxicity. Targeted uptake was validated via competitive inhibition. Finally, we used in vivo bioluminescent signal to monitor tumor burden and the effect of for photodynamic therapy: The nanospheres had little impact versus controls (p = 0.089), but the branched nanoparticles slowed SKOV-3 tumor burden by 75.9% (p < 0.05).

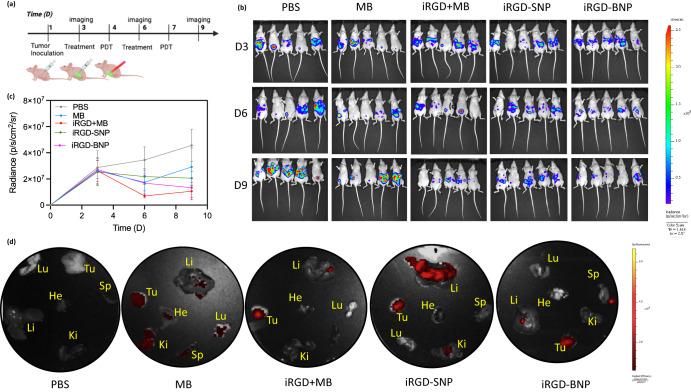

我们报道了通过静电作用和疏水堆积作用形成的整合素靶向性环肽(iRGD)与亚甲蓝染料的非共价组装体。这些生成的纳米材料能够与癌细胞结合,利用光声信号对其成像,然后通过光动力疗法对其进行治疗。我们首先评估了这些材料的光学性质和物理性质。然后,我们评估了它们在活细胞靶向、体内成像和体内光动力毒性方面的效用。我们通过向肽中添加天冬氨酸(DD)或色氨酸双联(WW)来调节iRGD的性能,以分别促进与亚甲蓝的静电或疏水堆积。iRGD-DD形成了150纳米的分支纳米颗粒,但iRGD-WW产生了200纳米的纳米球。分支颗粒的吸收峰红移至720纳米,适合用于光声信号。纳米球在680纳米处有一个峰值,与单体亚甲蓝相似。在持续照射下,与等摩尔浓度的游离亚甲蓝相比,纳米球和分支纳米颗粒使SKOV-3细胞中的活性氧增加了116.62%和94.82%,表明具有光动力毒性。通过竞争性抑制验证了靶向摄取。最后,我们利用体内生物发光信号监测肿瘤负荷以及光动力疗法的效果:纳米球与对照组相比影响很小(p = 0.089),但分支纳米颗粒使SKOV-3肿瘤负荷减缓了75.9%(p < 0.05)。
