McCarthy G, Blamire A M, Rothman D L, Gruetter R, Shulman R G
Department of Surgery (Neurosurgery), Yale University School of Medicine, New Haven, CT 06510.
Proc Natl Acad Sci U S A. 1993 Jun 1;90(11):4952-6. doi: 10.1073/pnas.90.11.4952.

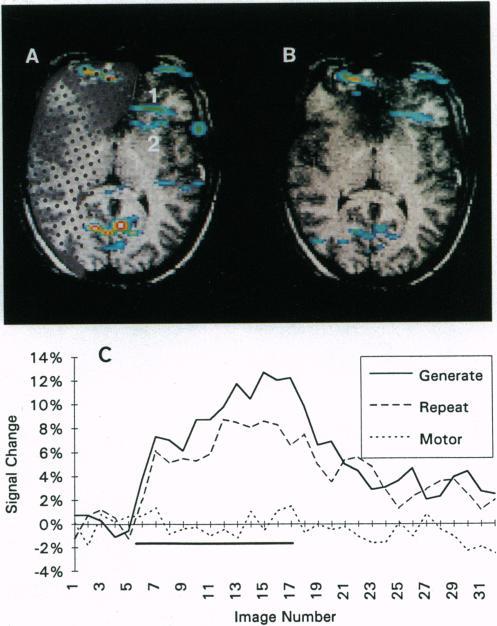

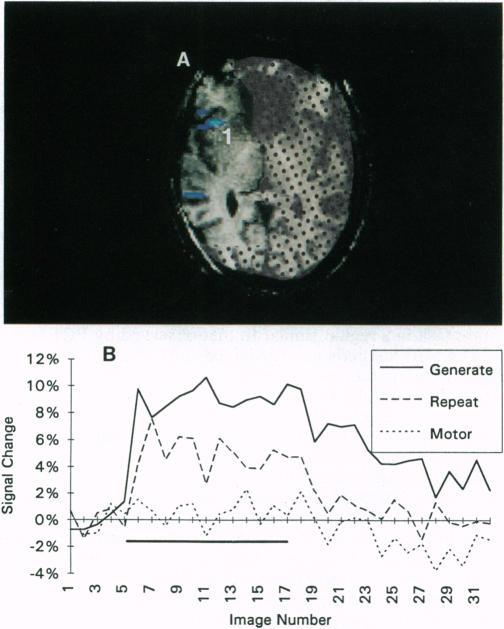

Nine subjects were studied by high-speed magnetic resonance imaging while performing language-based tasks. Subjects were asked either to repeat or to generate verbs associated with nouns read by an experimenter while magnetic resonance images were obtained of the left inferior frontal lobe. The echo-planar imaging sequence was used with a gradient echo time of 70 ms to give an apparent transverse relaxation time weighting (T2* that is sensitive to local hemoglobin levels. Images were acquired every 3 s (repetition time) in series of 32. In plane resolution was 6 x 4.5 mm and slice thickness was 10 mm. An increase in signal accompanied performance of the tasks, with significantly more activation for verb generation than for repeating. The activation effect occurred within 3 s after task onset and could be observed in single images from individual subjects. The primary focus of activation appeared in gray matter along a sulcus anterior to the lateral sulcus that included the anterior insula, Brodmann's area 47, and extending to area 10. Little or no activation of this region was found for a passive listening, covert generation, or mouth-movement control tasks. Significant activation was also found for a homologous region in the right frontal cortex but not for control regions in calcarine cortex. These results are consistent with prior studies that have used positron emission tomography imaging with 15O-labeled water as a blood flow tracer.
九名受试者在执行基于语言的任务时接受了高速磁共振成像研究。在获取左侧额下回的磁共振图像时,受试者被要求重复或生成与实验者读出的名词相关的动词。采用回波平面成像序列,梯度回波时间为70毫秒,以提供对局部血红蛋白水平敏感的表观横向弛豫时间加权(T2*)。图像以32幅为一组,每3秒(重复时间)采集一次。平面分辨率为6×4.5毫米,切片厚度为10毫米。任务执行伴随着信号增强,动词生成比重复任务的激活明显更多。激活效应在任务开始后3秒内出现,并且可以在个体受试者的单幅图像中观察到。激活的主要焦点出现在外侧沟前方的一条沟沿线的灰质中,该区域包括前岛叶、布罗德曼47区,并延伸至10区。对于被动聆听、隐蔽生成或口部运动控制任务,该区域几乎没有激活。在右侧额叶皮层的同源区域也发现了显著激活,但在距状皮层的对照区域未发现激活。这些结果与先前使用以15O标记水作为血流示踪剂的正电子发射断层成像的研究一致。
