Wang Yujiao, Peng Xiaohong, Shi Jinmin, Tang Xiaoliang, Jiang Jie, Liu Weisheng
Key Laboratory of Nonferrous Metals Chemistry and Resources Utilization of Gansu Province and State Key Laboratory of Applied Organic Chemistry, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, 730000, People's Republic of China.
Nanoscale Res Lett. 2012 Jan 25;7(1):86. doi: 10.1186/1556-276X-7-86.

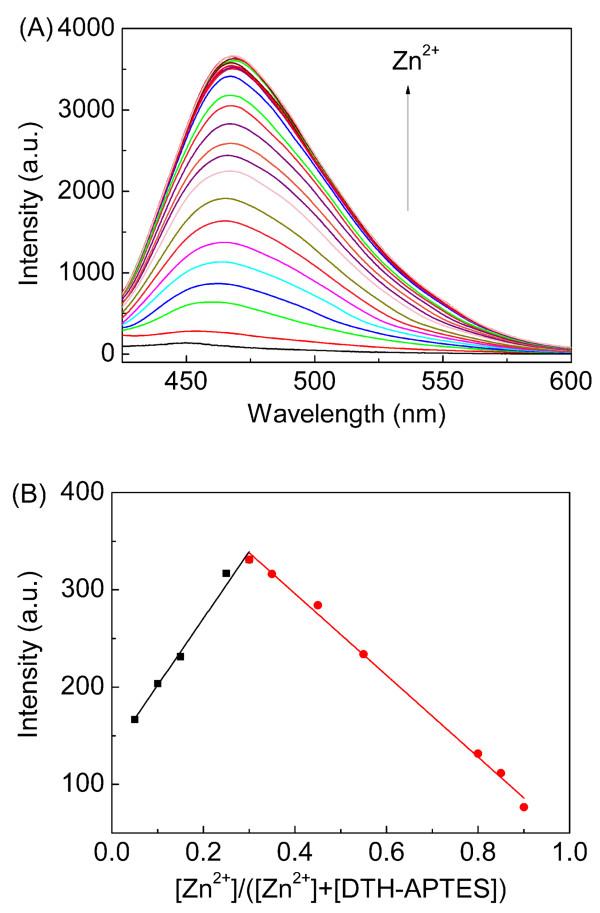

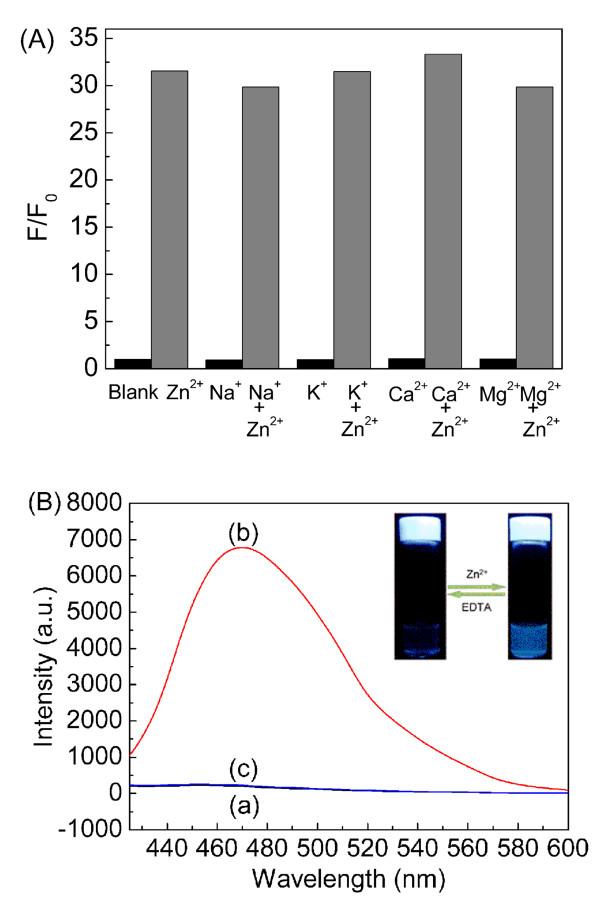

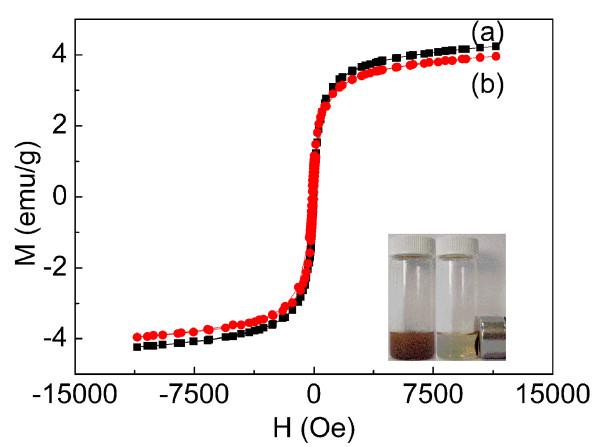

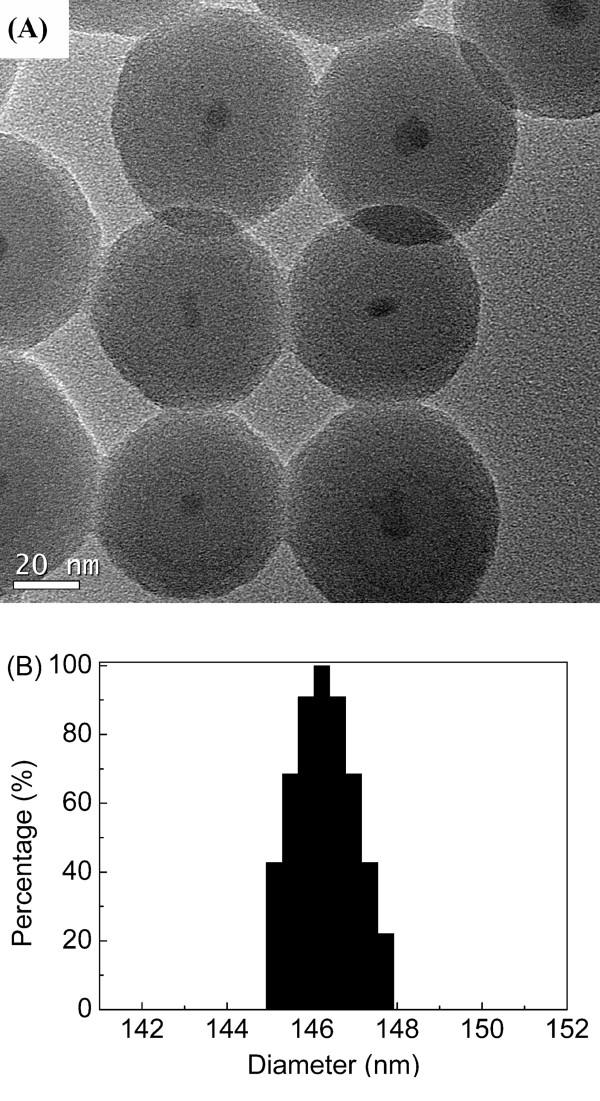

Magnetic nanoparticles with attractive optical properties have been proposed for applications in such areas as separation and magnetic resonance imaging. In this paper, a simple and novel fluorescent sensor of Zn2+ was designed with 3,5-di-tert-butyl-2-hydroxybenzaldehyde [DTH] covalently grafted onto the surface of magnetic core/shell Fe3O4@SiO2 nanoparticles [NPs] (DTH-Fe3O4@SiO2 NPs) using the silanol hydrolysis approach. The DTH-Fe3O4@SiO2 inorganic-organic hybrid material was characterized by transmission electron microscopy, dynamic light scattering, X-ray power diffraction, diffuse reflectance infrared Fourier transform, UV-visible absorption and emission spectrometry. The compound DTH exhibited fluorescence response towards Zn2+ and Mg2+ ions, but the DTH-Fe3O4@SiO2 NPs only effectively recognized Zn2+ ion by significant fluorescent enhancement in the presence of various ions, which is due to the restriction of the N-C rotation of DTH-Fe3O4@SiO2 NPs and the formation of the rigid plane with conjugation when the DTH-Fe3O4@SiO2 is coordinated with Zn2+. Moreover, this DTH-Fe3O4@SiO2 fluorescent chemosensor also displayed superparamagnetic properties, and thus, it can be recycled by magnetic attraction.
具有吸引人的光学性质的磁性纳米粒子已被提议用于分离和磁共振成像等领域。本文采用硅醇水解法,将3,5 -二叔丁基-2 -羟基苯甲醛[DTH]共价接枝到磁性核壳Fe3O4@SiO2纳米粒子[NPs](DTH - Fe3O4@SiO2 NPs)表面,设计了一种简单新颖的Zn2+荧光传感器。通过透射电子显微镜、动态光散射、X射线粉末衍射、漫反射红外傅里叶变换、紫外-可见吸收和发射光谱对DTH - Fe3O4@SiO2无机-有机杂化材料进行了表征。化合物DTH对Zn2+和Mg2+离子表现出荧光响应,但DTH - Fe3O4@SiO2 NPs在各种离子存在下仅通过显著的荧光增强有效地识别Zn2+离子,这是由于DTH - Fe3O4@SiO2 NPs的N - C旋转受限以及DTH - Fe3O4@SiO2与Zn2+配位时形成了具有共轭的刚性平面。此外,这种DTH - Fe3O4@SiO2荧光化学传感器还表现出超顺磁性,因此,它可以通过磁吸引进行回收利用。
