Beijing National Laboratory for Condensed Matter Physics, Institute of Physics, Chinese Academy of Sciences, Beijing 100190, China.
Sci Rep. 2012;2:511. doi: 10.1038/srep00511. Epub 2012 Jul 16.

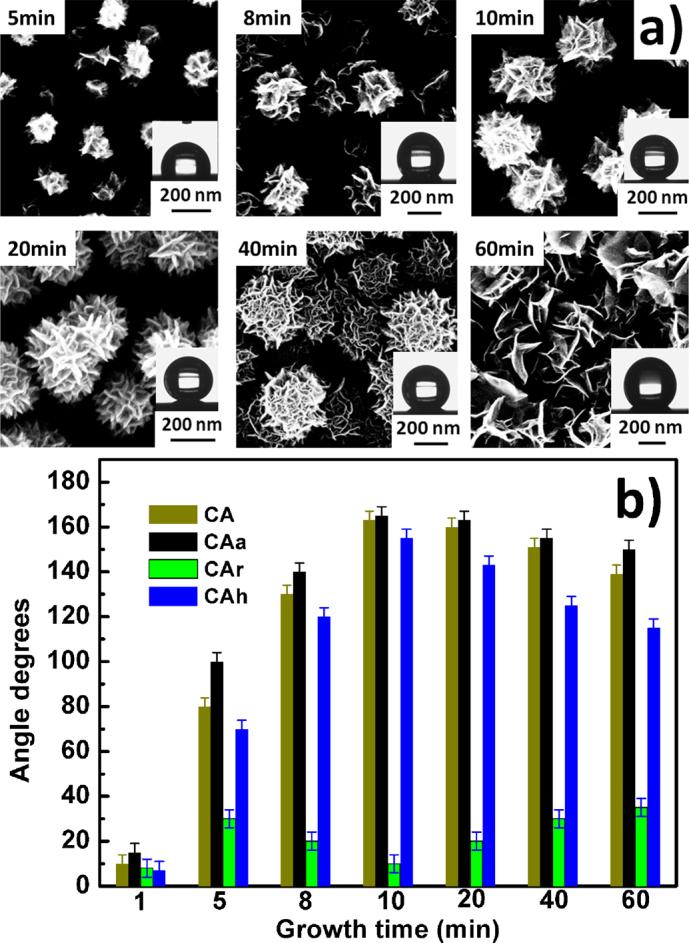

Nanostructured surface possessing ultrahigh adhesion like "gecko foot" or "rose petal" can offer more opportunities for bionic application. We grow flower-like few-layer graphene on silicon nanocone arrays to form graphene nanoclusters, showing robust adhesion. Their contact angle (CA) is 164° with a hysteresis CA of 155° and adhesive force for a 5 μL water droplet is about 254 μN that is far larger than present reported results. We bring experimental evidences that this great adhesion depends on large-area plentiful edges of graphene nanosheets tuned by conical nanostructure and intrinsic wetting features of graphene. Such new hierarchical few-layer graphene nanostructure provides a feasible strategy to understand the ultra-adhesive mechanism of the "gecko effect" or "rose effect" and enhance the wettability of graphene for many practical applications.
具有超附着力的纳米结构表面,如“壁虎脚”或“玫瑰花瓣”,可以为仿生应用提供更多机会。我们在硅纳米锥阵列上生长出具有花状的少层石墨烯,形成石墨烯纳米团簇,表现出强大的附着力。它们的接触角(CA)为 164°,滞后 CA 为 155°,对 5 μL 水液滴的粘附力约为 254 μN,远远大于目前报道的结果。我们提供了实验证据,表明这种强大的附着力取决于锥形纳米结构调谐的大面积丰富石墨烯纳米片边缘和石墨烯的固有润湿性特征。这种新型分层少层石墨烯纳米结构为理解“壁虎效应”或“玫瑰效应”的超附着机制以及提高石墨烯的润湿性提供了一种可行的策略,从而应用于许多实际领域。
