Department of Pharmacology, Weill Medical College, Cornell University , New York, New York 10065, United States.
J Am Chem Soc. 2014 Jan 29;136(4):1198-201. doi: 10.1021/ja410819x. Epub 2014 Jan 18.

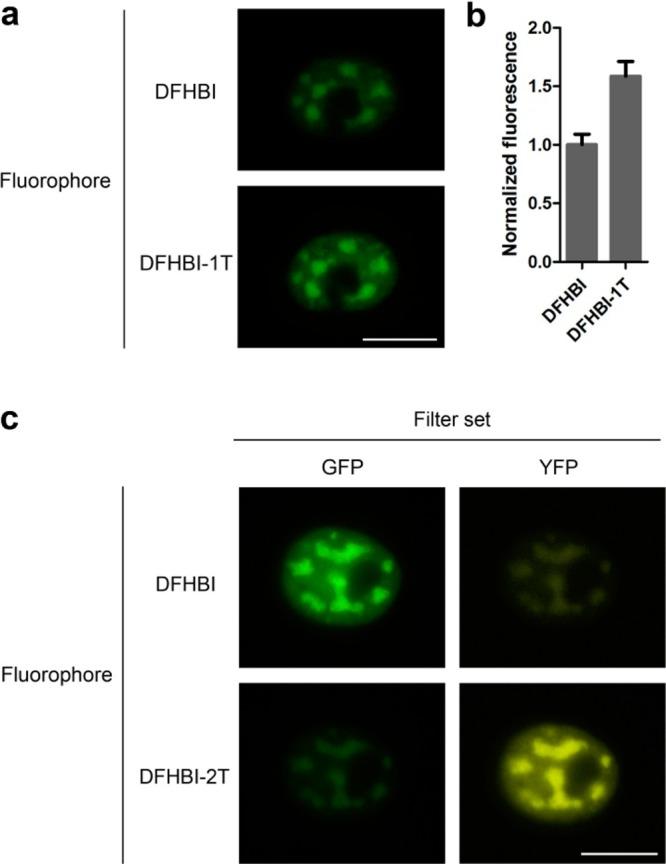

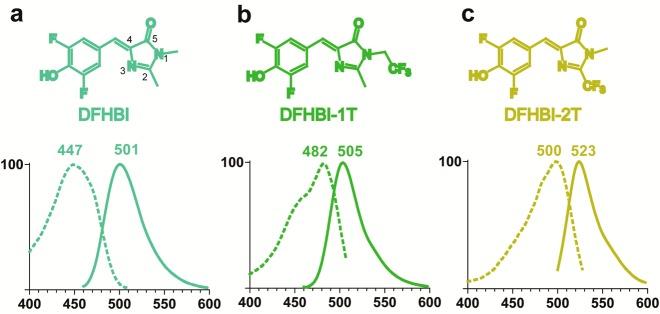

Spinach and Spinach2 are RNA aptamers that can be used for the genetic encoding of fluorescent RNA. Spinach2 binds and activates the fluorescence of (Z)-4-(3,5-difluoro-4-hydroxybenzylidene)-1,2-dimethyl-1H-imidazol-5(4H)-one (DFHBI), allowing the dynamic localizations of Spinach2-tagged RNAs to be imaged in live cells. The spectral properties of Spinach2 are limited by DFHBI, which produces fluorescence that is bluish-green and is not optimized for filters commonly used in fluorescence microscopes. Here we characterize the structural features that are required for fluorophore binding to Spinach2 and describe novel fluorophores that bind and are switched to a fluorescent state by Spinach2. These diverse Spinach2-fluorophore complexes exhibit fluorescence that is more compatible with existing microscopy filter sets and allows Spinach2-tagged constructs to be imaged with either GFP or YFP filter cubes. Thus, these "plug-and-play" fluorophores allow the spectral properties of Spinach2 to be altered on the basis of the specific spectral needs of the experiment.
菠菜和菠菜 2 是 RNA 适体,可用于荧光 RNA 的遗传编码。菠菜 2 结合并激活(Z)-4-(3,5-二氟-4-羟基苯亚甲基)-1,2-二甲基-1H-咪唑-5(4H)-酮(DFHBI)的荧光,从而可以对菠菜 2 标记的 RNA 的动态定位进行成像活细胞。菠菜 2 的光谱特性受到 DFHBI 的限制,DFHBI 产生的荧光呈蓝绿色,与荧光显微镜中常用的滤光片不匹配。在这里,我们描述了与 Spinach2 结合的荧光团所必需的结构特征,并描述了与 Spinach2 结合并被 Spinach2 切换到荧光状态的新型荧光团。这些不同的 Spinach2-荧光团复合物发出的荧光与现有的显微镜滤光片组更兼容,使 Spinach2 标记的构建体可以使用 GFP 或 YFP 滤光片组进行成像。因此,这些“即插即用”荧光团可以根据实验的特定光谱需求改变 Spinach2 的光谱特性。
