Wen Amy M, Infusino Melissa, De Luca Antonio, Kernan Daniel L, Czapar Anna E, Strangi Giuseppe, Steinmetz Nicole F
Departments of Biomedical Engineering, ‡Physics, §Pathology, ∥Radiology, ⊥Materials Science and Engineering, and #Macromolecular Science and Engineering, Case Western Reserve University , Cleveland, Ohio 44106, United States.
Bioconjug Chem. 2015 Jan 21;26(1):51-62. doi: 10.1021/bc500524f. Epub 2015 Jan 12.

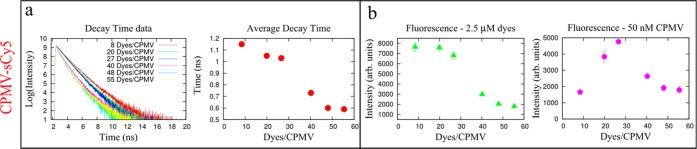

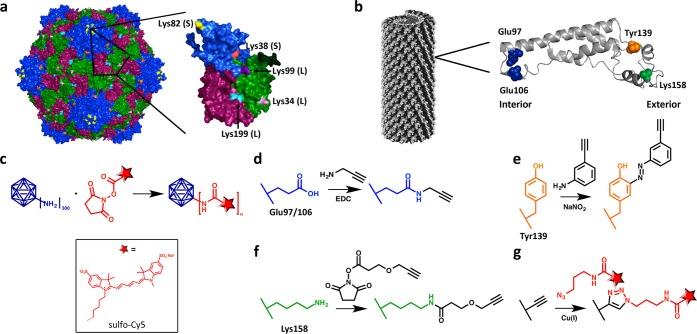

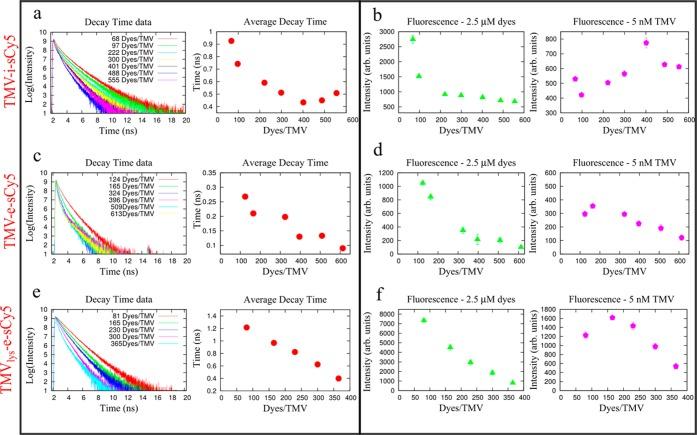

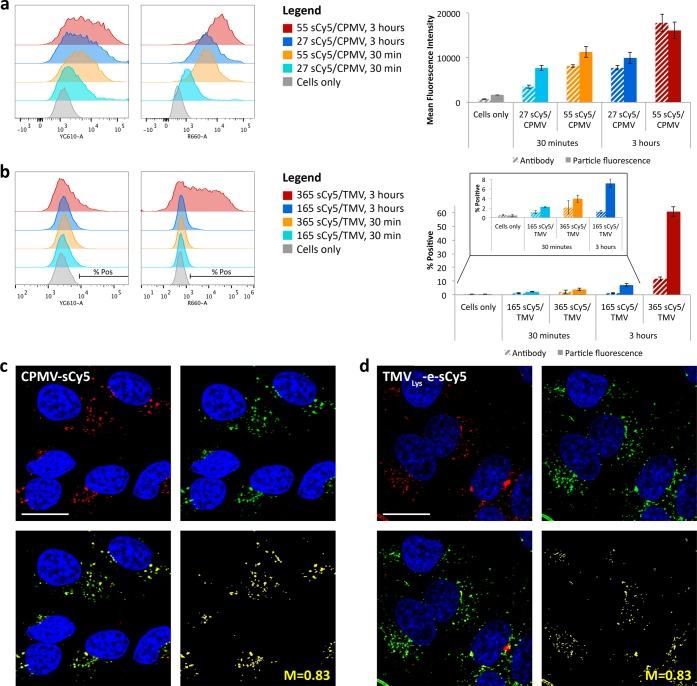

Virus-based nanoparticles (VNPs) have been used for a wide range of applications, spanning basic materials science and translational medicine. Their propensity to self-assemble into precise structures that offer a three-dimensional scaffold for functionalization has led to their use as optical contrast agents and related biophotonics applications. A number of fluorescently labeled platforms have been developed and their utility in optical imaging demonstrated, yet their optical properties have not been investigated in detail. In this study, two VNPs of varying architectures were compared side-by-side to determine the impact of dye density, dye localization, conjugation chemistry, and microenvironment on the optical properties of the probes. Dyes were attached to icosahedral cowpea mosaic virus (CPMV) and rod-shaped tobacco mosaic virus (TMV) through a range of chemistries to target particular side chains displayed at specific locations around the virus. The fluorescence intensity and lifetime of the particles were determined, first using photochemical experiments on the benchtop, and second in imaging experiments using tissue culture experiments. The virus-based optical probes were found to be extraordinarily robust under ultrashort, pulsed laser light conditions with a significant amount of excitation energy, maintaining structural and chemical stability. The most effective fluorescence output was achieved through dye placement at optimized densities coupled to the exterior surface avoiding conjugated ring systems. Lifetime measurements indicate that fluorescence output depends not only on spacing the fluorophores, but also on dimer stacking and configurational changes leading to radiationless relaxation-and these processes are related to the conjugation chemistry and nanoparticle shape. For biological applications, the particles were also examined in tissue culture, from which it was found that the optical properties differed from those found on the benchtop due to effects from cellular processes and uptake kinetics. Data indicate that fluorescent cargos are released in the endolysosomal compartment of the cell targeted by the virus-based optical probes. These studies provide insight into the optical properties and fates of fluorescent proteinaceous imaging probes. The cellular release of cargo has implications not only for virus-based optical probes, but also for drug delivery and release systems.
基于病毒的纳米颗粒(VNPs)已被广泛应用于多个领域,涵盖基础材料科学和转化医学。它们倾向于自组装成精确的结构,为功能化提供三维支架,这使得它们被用作光学造影剂及相关生物光子学应用。已经开发了许多荧光标记平台,并证明了它们在光学成像中的效用,但尚未对其光学性质进行详细研究。在本研究中,将两种不同结构的VNPs并排比较,以确定染料密度、染料定位、共轭化学和微环境对探针光学性质的影响。通过一系列化学方法将染料连接到二十面体豇豆花叶病毒(CPMV)和杆状烟草花叶病毒(TMV)上,以靶向病毒周围特定位置显示的特定侧链。首先在台式光化学实验中,其次在使用组织培养实验的成像实验中,测定了颗粒的荧光强度和寿命。发现基于病毒的光学探针在具有大量激发能量的超短脉冲激光条件下异常稳定,保持结构和化学稳定性。通过将染料以优化的密度置于外表面,避免共轭环系统,可实现最有效的荧光输出。寿命测量表明,荧光输出不仅取决于荧光团的间距,还取决于二聚体堆积和导致无辐射弛豫的构型变化,而这些过程与共轭化学和纳米颗粒形状有关。对于生物应用,还在组织培养中对颗粒进行了检查,结果发现由于细胞过程和摄取动力学的影响,其光学性质与在台式实验中发现的不同。数据表明,荧光货物在基于病毒的光学探针靶向的细胞的内溶酶体区室中释放。这些研究深入了解了荧光蛋白质成像探针的光学性质和命运。货物的细胞释放不仅对基于病毒的光学探针有影响,对药物递送和释放系统也有影响。
