通过热化学气相沉积法,在加热黄铜辅助的甲醇体系中制备的铝掺杂氧化锌纳米结构的光致发光和拉曼特性增强。
Enhanced photoluminescence and Raman properties of Al-Doped ZnO nanostructures prepared using thermal chemical vapor deposition of methanol assisted with heated brass.
作者信息
Thandavan Tamil Many K, Gani Siti Meriam Abdul, San Wong Chiow, Md Nor Roslan
机构信息
Plasma Technology Research Centre, Department of Physics, University of Malaya, Lembah Pantai, Kuala Lumpur, Malaysia.
Low Dimensional Material Research Centre, Department of Physics, University of Malaya, Lembah Pantai, Kuala Lumpur, Malaysia.
出版信息
PLoS One. 2015 Mar 10;10(3):e0121756. doi: 10.1371/journal.pone.0121756. eCollection 2015.

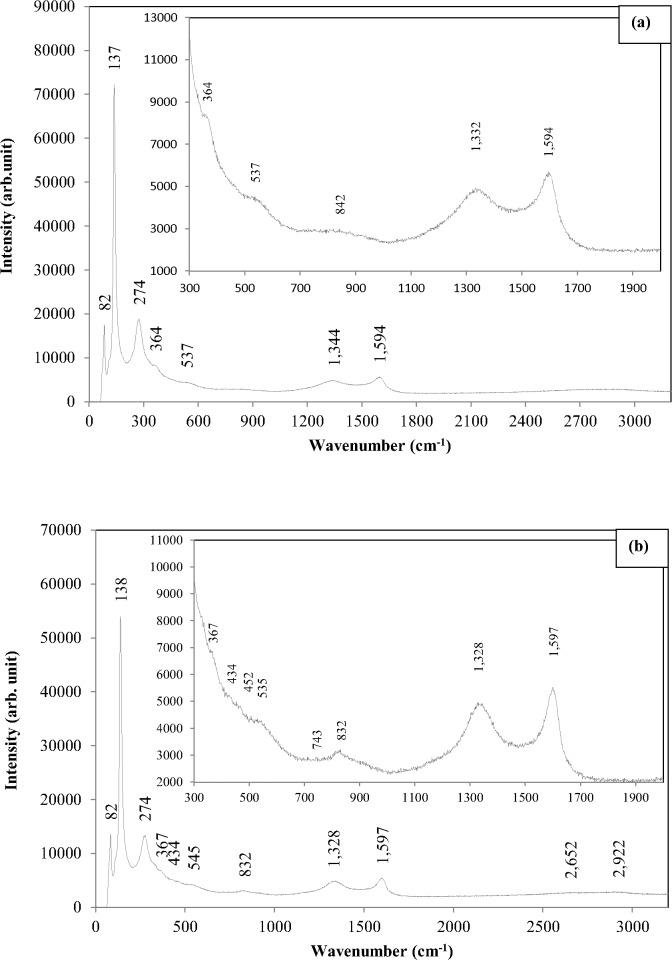

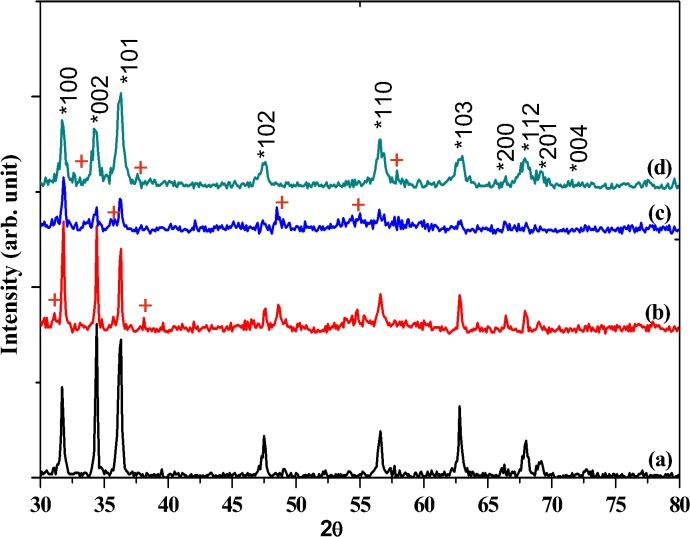

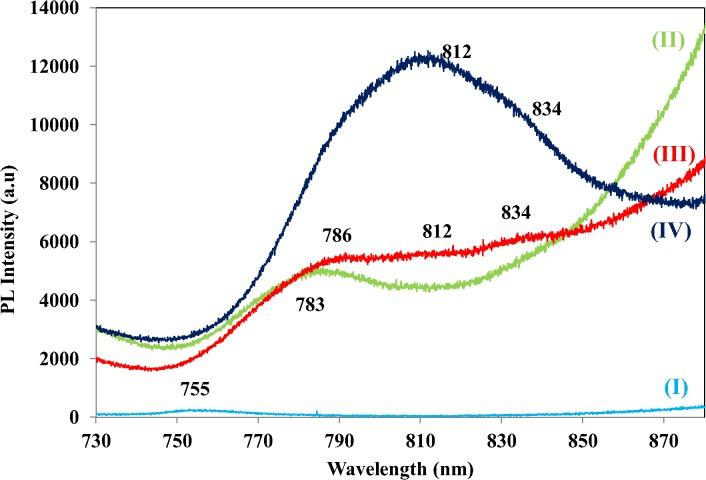

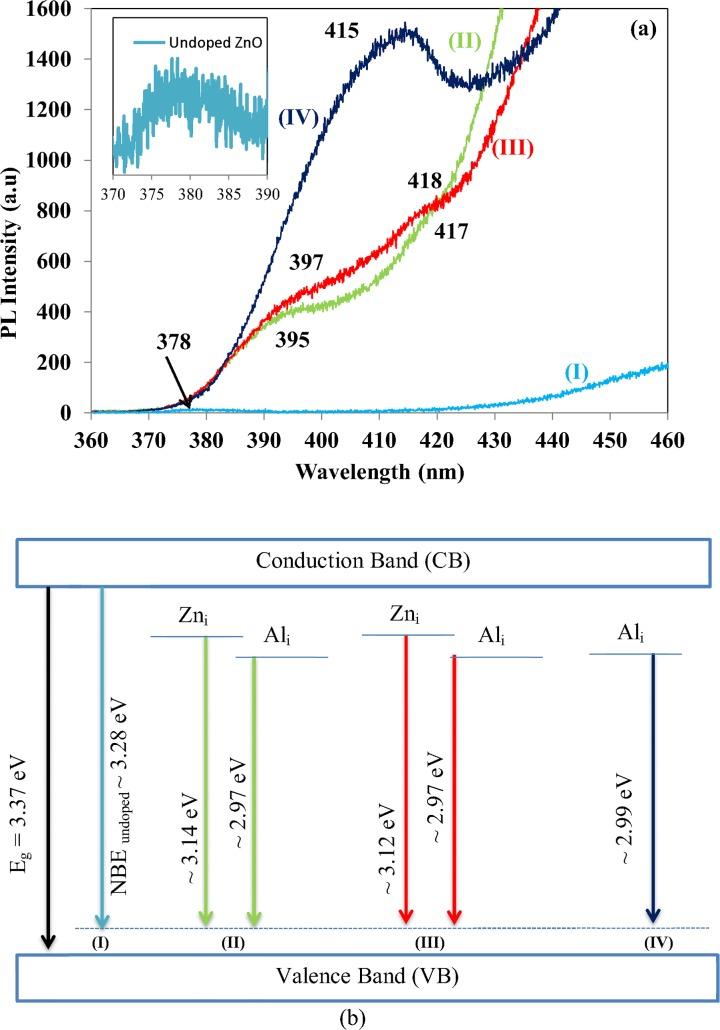

Vapor phase transport (VPT) assisted by mixture of methanol and acetone via thermal evaporation of brass (CuZn) was used to prepare un-doped and Al-doped zinc oxide (ZnO) nanostructures (NSs). The structure and morphology were characterized by field emission scanning electron microscopy (FESEM) and x-ray diffraction (XRD). Photoluminescence (PL) properties of un-doped and Al-doped ZnO showed significant changes in the optical properties providing evidence for several types of defects such as zinc interstitials (Zni), oxygen interstitials (Oi), zinc vacancy (Vzn), singly charged zinc vacancy (VZn-), oxygen vacancy (Vo), singly charged oxygen vacancy (Vo+) and oxygen anti-site defects (OZn) in the grown NSs. The Al-doped ZnO NSs have exhibited shifted PL peaks at near band edge (NBE) and red luminescence compared to the un-doped ZnO. The Raman scattering results provided evidence of Al doping into the ZnO NSs due to peak shift from 145 cm-1 to an anomalous peak at 138 cm-1. Presence of enhanced Raman signal at around 274 and 743 cm-1 further confirmed Al in ZnO NSs. The enhanced D and G band in all Al-doped ZnO NSs shows possible functionalization and doping process in ZnO NSs.
通过黄铜(CuZn)热蒸发,利用甲醇和丙酮的混合物辅助气相传输(VPT)来制备未掺杂和铝掺杂的氧化锌(ZnO)纳米结构(NSs)。通过场发射扫描电子显微镜(FESEM)和X射线衍射(XRD)对结构和形貌进行了表征。未掺杂和铝掺杂的ZnO的光致发光(PL)特性显示出光学特性的显著变化,为生长的纳米结构中几种类型的缺陷提供了证据,如锌间隙(Zni)、氧间隙(Oi)、锌空位(Vzn)、单电荷锌空位(VZn-)、氧空位(Vo)、单电荷氧空位(Vo+)和氧反位缺陷(OZn)。与未掺杂的ZnO相比,铝掺杂的ZnO纳米结构在近带边(NBE)处的PL峰发生了位移,并出现了红色发光。拉曼散射结果提供了铝掺杂到ZnO纳米结构中的证据,因为峰从145 cm-1位移到了138 cm-1处的异常峰。在274和743 cm-1左右增强的拉曼信号进一步证实了ZnO纳米结构中存在铝。所有铝掺杂的ZnO纳米结构中增强的D带和G带显示了ZnO纳米结构中可能的功能化和掺杂过程。
