Esmaeili Chakavak, Abdi Mahnaz M, Mathew Aji P, Jonoobi Mehdi, Oksman Kristiina, Rezayi Majid
School of Chemical Sciences and Food Technology, Faculty of Science and Technology, Universiti Kebangsaan Malaysia, UKM, 43600 Bangi, Malaysia.
Department of Chemistry, Faculty of Science, University Putra Malaysia, 43400 Serdang, Malaysia.
Sensors (Basel). 2015 Sep 24;15(10):24681-97. doi: 10.3390/s151024681.

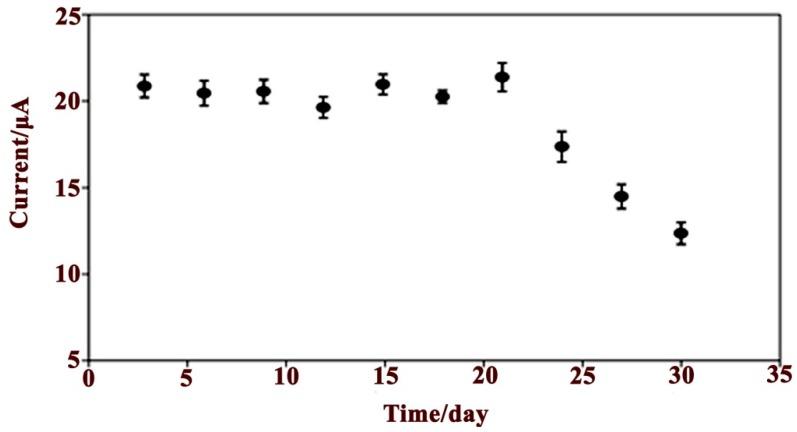

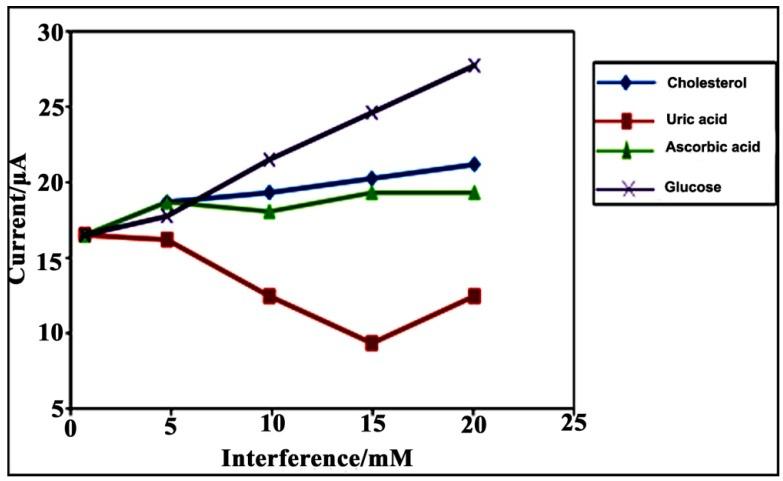

Integrating polypyrrole-cellulose nanocrystal-based composites with glucose oxidase (GOx) as a new sensing regime was investigated. Polypyrrole-cellulose nanocrystal (PPy-CNC)-based composite as a novel immobilization membrane with unique physicochemical properties was found to enhance biosensor performance. Field emission scanning electron microscopy (FESEM) images showed that fibers were nanosized and porous, which is appropriate for accommodating enzymes and increasing electron transfer kinetics. The voltammetric results showed that the native structure and biocatalytic activity of GOx immobilized on the PPy-CNC nanocomposite remained and exhibited a high sensitivity (ca. 0.73 μA·mM(-1)), with a high dynamic response ranging from 1.0 to 20 mM glucose. The modified glucose biosensor exhibits a limit of detection (LOD) of (50 ± 10) µM and also excludes interfering species, such as ascorbic acid, uric acid, and cholesterol, which makes this sensor suitable for glucose determination in real samples. This sensor displays an acceptable reproducibility and stability over time. The current response was maintained over 95% of the initial value after 17 days, and the current difference measurement obtained using different electrodes provided a relative standard deviation (RSD) of 4.47%.
研究了将基于聚吡咯-纤维素纳米晶体的复合材料与葡萄糖氧化酶(GOx)整合作为一种新的传感机制。发现基于聚吡咯-纤维素纳米晶体(PPy-CNC)的复合材料作为具有独特物理化学性质的新型固定化膜可提高生物传感器性能。场发射扫描电子显微镜(FESEM)图像显示纤维为纳米尺寸且多孔,这适合容纳酶并增加电子转移动力学。伏安法结果表明,固定在PPy-CNC纳米复合材料上的GOx的天然结构和生物催化活性得以保留,并表现出高灵敏度(约0.73 μA·mM⁻¹),对1.0至20 mM葡萄糖具有高动态响应。修饰后的葡萄糖生物传感器的检测限(LOD)为(50±10)μM,并且还排除了干扰物质,如抗坏血酸、尿酸和胆固醇,这使得该传感器适用于实际样品中的葡萄糖测定。该传感器随时间显示出可接受的重现性和稳定性。17天后电流响应保持在初始值的95%以上,使用不同电极获得的电流差异测量的相对标准偏差(RSD)为4.47%。
