Beijing Institute of Nanoenergy and Nanosystems, Chinese Academy of Sciences, National Center for Nanoscience and Technology (NCNST), Beijing 100083, PR China.
School of Biological Science and Medical Engineering, Beihang University, Beijing 100191, PR China.
Sci Adv. 2016 Mar 4;2(3):e1501478. doi: 10.1126/sciadv.1501478. eCollection 2016 Mar.

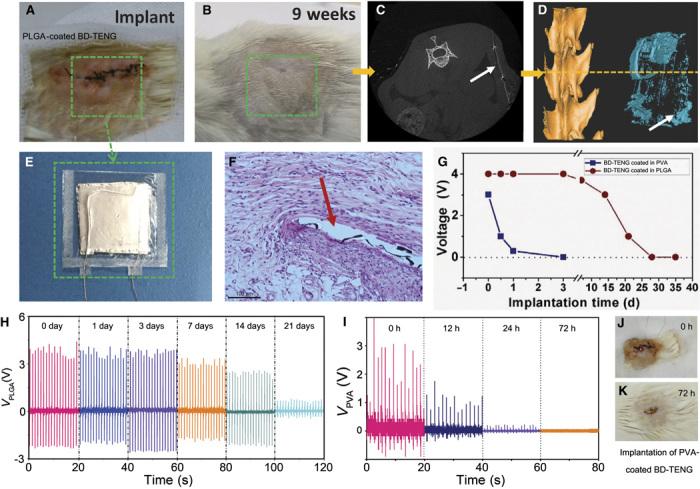

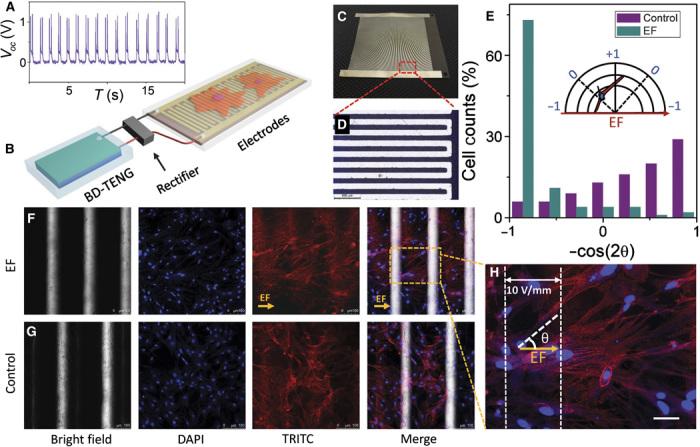

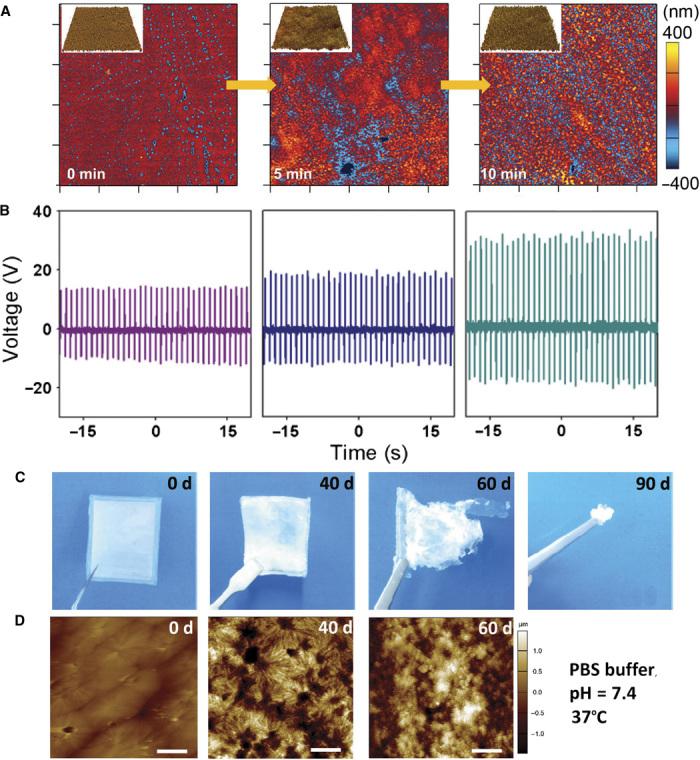

Transient electronics built with degradable organic and inorganic materials is an emerging area and has shown great potential for in vivo sensors and therapeutic devices. However, most of these devices require external power sources to function, which may limit their applications for in vivo cases. We report a biodegradable triboelectric nanogenerator (BD-TENG) for in vivo biomechanical energy harvesting, which can be degraded and resorbed in an animal body after completing its work cycle without any adverse long-term effects. Tunable electrical output capabilities and degradation features were achieved by fabricated BD-TENG using different materials. When applying BD-TENG to power two complementary micrograting electrodes, a DC-pulsed electrical field was generated, and the nerve cell growth was successfully orientated, showing its feasibility for neuron-repairing process. Our work demonstrates the potential of BD-TENG as a power source for transient medical devices.
基于可降解有机和无机材料的瞬态电子学是一个新兴领域,在体内传感器和治疗设备方面显示出巨大的潜力。然而,这些设备中的大多数都需要外部电源才能运行,这可能限制了它们在体内情况下的应用。我们报告了一种用于体内生物力学能量收集的可生物降解的摩擦纳米发电机(BD-TENG),它可以在完成工作周期后在动物体内降解和吸收,而不会产生任何不良的长期影响。通过使用不同的材料制造 BD-TENG,可以实现可调的电输出能力和降解特性。当将 BD-TENG 应用于为两个互补的微光栅电极供电时,会产生直流脉冲电场,并且成功地定向了神经细胞的生长,表明其在神经元修复过程中的可行性。我们的工作证明了 BD-TENG 作为瞬态医疗设备电源的潜力。
