Evaluation of Surface Roughness of Different Direct Resin-based Composites.

AIMS AND OBJECTIVE

To evaluate surface roughness of different resin-based composites.

MATERIALS AND METHODS

Three resin composites, one nanohybrid, one nanoceramic, and one bulk-fill resin-based composite, were used in this study. Cylindrical Teflon mold and 8 mm in diameter and 2 mm in thickness disc specimens were prepared. For each composite material, 15 discs were fabricated, with a total of sixty discs were obtained ( = 60). A glass slide 1-2 mm thick was placed over the strip before curing with the light-curing unit to flatten the surfaces. The specimens were then cured for 40 s through the Mylar strip and the glass slide. Five specimens per each material received no finishing treatment after being cured under Mylar strips; these specimens served as a control. Ten specimens from each composite material were finished/polished with Eve discs at coarse, medium, fine, and superfine grits for 30 s (using stopwatch) each on the specimens. After polishing, the composite surfaces were assessed quantitatively by profilometry and qualitatively by scanning electron microscopy. Data were analyzed using SPSS software.

RESULTS

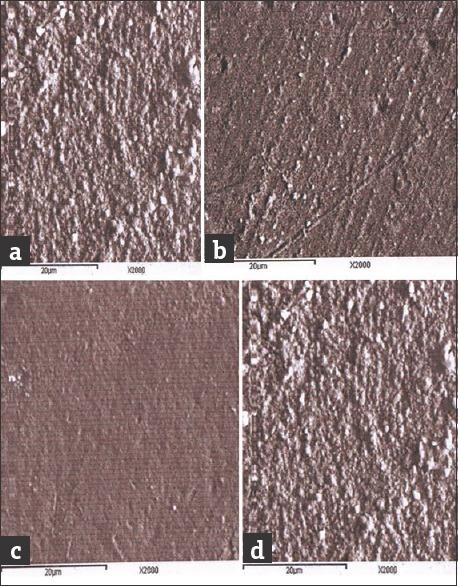

Tetric Evo Ceram and Tetric Evo Ceram Bulk-Fill specimens polished with Eve revealed slightly the same surface appearance as the Mylar strip. Eve discs scratched and exposed fillers of Ceram-x. Eve discs for Z250 surfaces exposed and scratched the filler particles but less than occurred with Ceram-x.

CONCLUSION

Bulk-Fill and nanohybrid resin composites exhibit smoothest surfaces compared with nanoceramic and microhybrid resin composites after polishing.
