Pattern Recognition Lab, Computer Science, Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen, Germany.
Department of Oral and Maxillofacial Surgery, University Medical Center Hamburg-Eppendorf, Hamburg, Germany.
Sci Rep. 2017 Sep 20;7(1):11979. doi: 10.1038/s41598-017-12320-8.

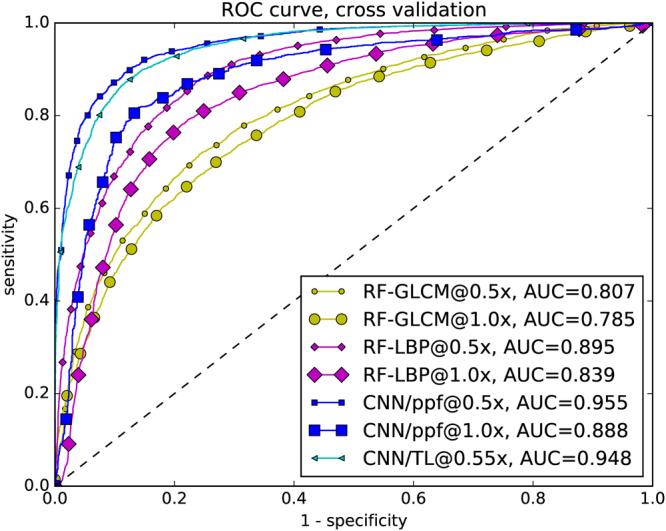

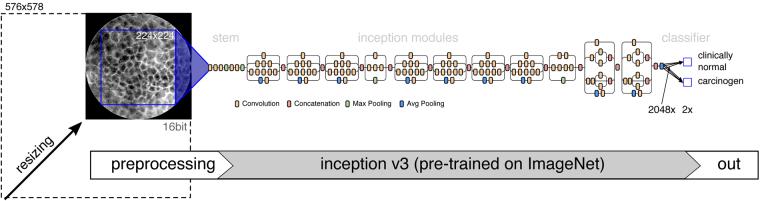

Oral Squamous Cell Carcinoma (OSCC) is a common type of cancer of the oral epithelium. Despite their high impact on mortality, sufficient screening methods for early diagnosis of OSCC often lack accuracy and thus OSCCs are mostly diagnosed at a late stage. Early detection and accurate outline estimation of OSCCs would lead to a better curative outcome and a reduction in recurrence rates after surgical treatment. Confocal Laser Endomicroscopy (CLE) records sub-surface micro-anatomical images for in vivo cell structure analysis. Recent CLE studies showed great prospects for a reliable, real-time ultrastructural imaging of OSCC in situ. We present and evaluate a novel automatic approach for OSCC diagnosis using deep learning technologies on CLE images. The method is compared against textural feature-based machine learning approaches that represent the current state of the art. For this work, CLE image sequences (7894 images) from patients diagnosed with OSCC were obtained from 4 specific locations in the oral cavity, including the OSCC lesion. The present approach is found to outperform the state of the art in CLE image recognition with an area under the curve (AUC) of 0.96 and a mean accuracy of 88.3% (sensitivity 86.6%, specificity 90%).
口腔鳞状细胞癌(OSCC)是口腔上皮的一种常见癌症类型。尽管它们对死亡率有很大影响,但用于早期诊断 OSCC 的充分筛选方法往往准确性不足,因此 OSCC 大多在晚期才被诊断出来。早期发现和准确估计 OSCC 可带来更好的治疗效果,并降低手术后的复发率。共焦激光内窥镜(CLE)记录了用于体内细胞结构分析的亚表面微观解剖图像。最近的 CLE 研究表明,该技术在原位可靠、实时超微结构成像 OSCC 方面具有广阔的前景。我们提出并评估了一种新的基于深度学习技术的自动诊断 OSCC 的方法,该方法在 CLE 图像上进行了比较。该方法与基于纹理特征的机器学习方法进行了比较,后者代表了目前的最先进水平。在这项工作中,从口腔中 4 个特定位置(包括 OSCC 病变)获得了诊断为 OSCC 的患者的 CLE 图像序列(7894 张图像)。研究发现,该方法在 CLE 图像识别方面优于现有技术,曲线下面积(AUC)为 0.96,平均准确率为 88.3%(灵敏度 86.6%,特异性 90%)。
