Guangdong Provincial Key Laboratory of Micro-nano Manufacturing Technology and Equipment, Guangdong University of Technology, Guangzhou 510006, China.
CAS Key Laboratory of Soft Matter Chemistry, Department of Polymer Science and Engineering, iChEM, University of Science and Technology of China, Anhui 230026, China.
Molecules. 2017 Dec 18;22(12):2236. doi: 10.3390/molecules22122236.

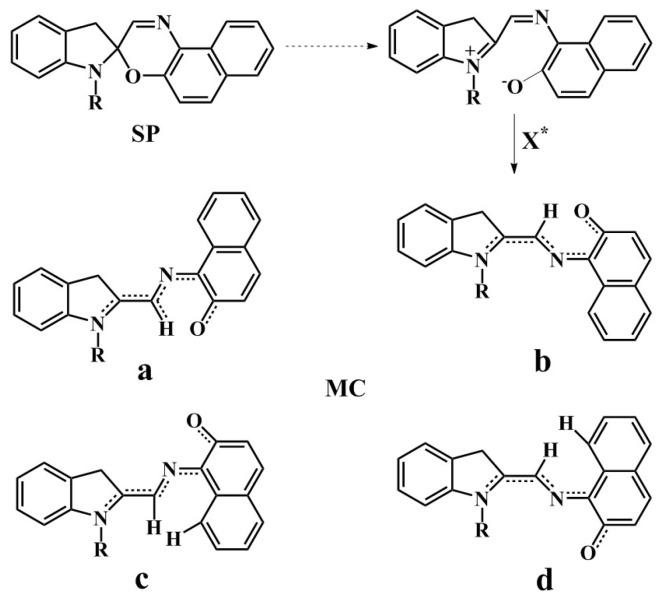

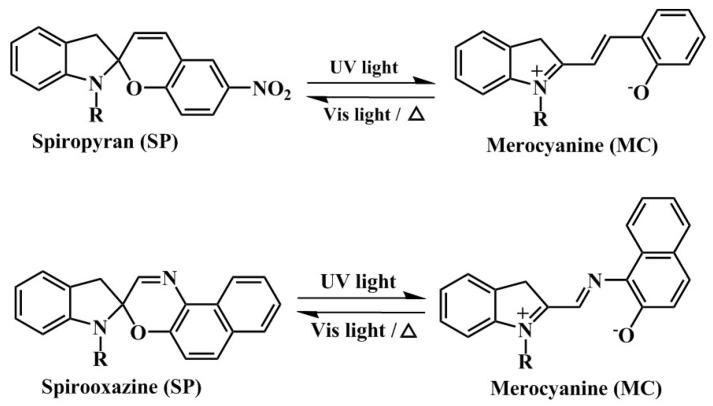

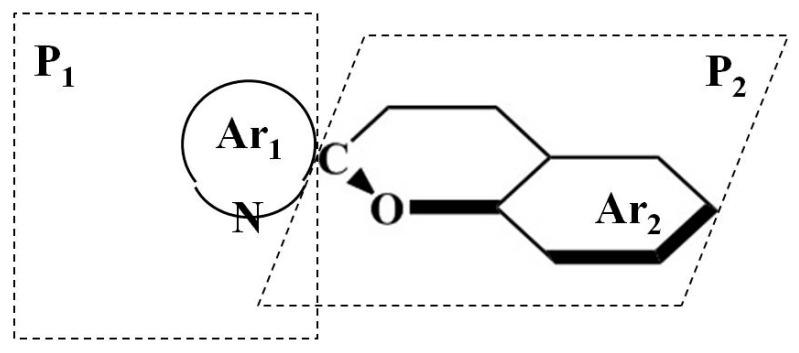

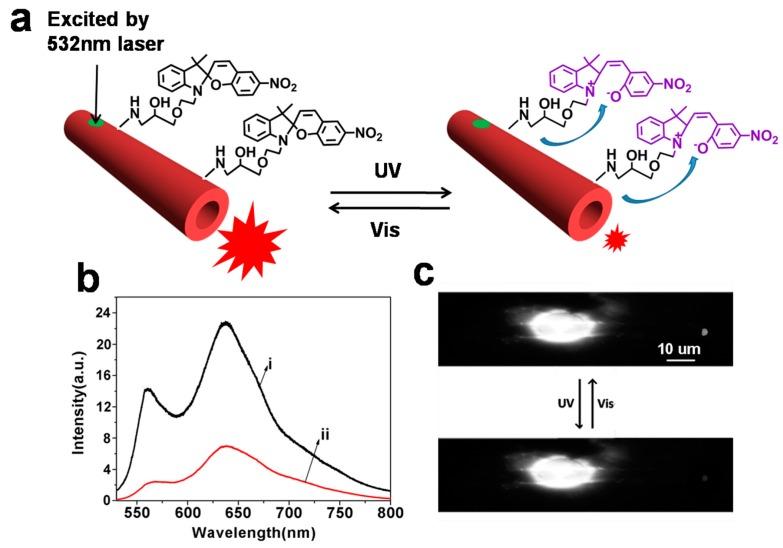

Studies on the following were reviewed: (1) the structure of spiropyrans and spirooxazines (two kinds of spiro compounds) under external stimuli and (2) the construction and applications of composite systems based on fluorescence resonance energy transfer (FRET) with fluorescent materials. When treated with different stimuli (light, acids and bases, solvents, metal ions, temperature, redox potential, and so on), spiropyrans/spirooxazines undergo transformations between the ring-closed form (SP), the ring-opened merocyanine (MC) form, and the protonated ring-opened form (MCH). This is due to the breakage of the spiro C-O bond and the protonation of MC, along with a color change. Various novel, multifunctional materials based on photochromic spiropyrans and spirooxazines have been successfully developed because of the vastly differently physiochemical properties posssed by the SP, MC and MCH forms. Among the three different structural forms, the MC form has been studied most extensively. The MC form not only gives complexes with various inorganic particles, biological molecules, and organic chemicals but also acts as the energy acceptor (of energy from fluorescent molecules) during energy transfer processes that take place under proper conditions. Furthermore, spiropyran and spirooxazine compounds exhibit reversible physicochemical property changes under proper stimuli; this provides more advantages compared with other photochromic compounds. Additionally, the molecular structures of spiropyrans and spirooxazines can be easily modified and extended, so better compounds can be obtained to expand the scope of already known applications. Described in detail are: (1) the structural properties of spiropyrans and spirooxazines and related photochromic mechanisms; (2) composite systems based on spiropyrans and spirooxazines, and (3) fluorescent materials which have potential applications in sensing, probing, and a variety of optical elements.
研究了以下内容:(1)在外部刺激下螺吡喃和螺噁嗪(两种螺环化合物)的结构;(2)基于荧光共振能量转移(FRET)的荧光材料的复合体系的构建和应用。螺吡喃/螺噁嗪在受到不同刺激(光、酸和碱、溶剂、金属离子、温度、氧化还原电位等)时,会发生闭环形式(SP)、开环的螺内酰胺(MC)形式和质子化的开环形式(MCH)之间的转变。这是由于螺 C-O 键的断裂和 MC 的质子化以及颜色的变化。由于 SP、MC 和 MCH 形式具有截然不同的物理化学性质,成功开发了各种基于光致变色螺吡喃和螺噁嗪的新型多功能材料。在这三种不同的结构形式中,MC 形式的研究最为广泛。MC 形式不仅与各种无机颗粒、生物分子和有机化学品形成配合物,而且在适当条件下作为能量转移过程中的能量受体(从荧光分子吸收能量)。此外,螺吡喃和螺噁嗪化合物在适当的刺激下表现出可逆的物理化学性质变化;与其他光致变色化合物相比,这提供了更多的优势。此外,螺吡喃和螺噁嗪的分子结构可以很容易地进行修饰和扩展,因此可以获得更好的化合物来扩展已知应用的范围。详细描述了:(1)螺吡喃和螺噁嗪的结构特性和相关光致变色机制;(2)基于螺吡喃和螺噁嗪的复合体系;(3)在传感、探测和各种光学元件中有潜在应用的荧光材料。
