Schieweck Alexandra, Gunschera Jan, Varol Deniz, Salthammer Tunga
Department of Material Analysis and Indoor Chemistry, Fraunhofer Wilhelm-Klauditz-Institut, Bienroder Weg 54E, 38108, Braunschweig, Germany.
Anal Bioanal Chem. 2018 May;410(13):3171-3183. doi: 10.1007/s00216-018-1004-z. Epub 2018 Mar 28.
The substance group of very volatile organic compounds (VVOCs) is moving into the focus of indoor air analysis, facing ongoing regulations at international and European levels targeting on indoor air quality and human health. However, there exists at present no validated analysis for the identification and quantification of VVOCs in indoor air. Therefore, the present study targeted on the development of an analytical method in order to sample the maximum possible quantity of VVOCs in indoor air on solid sorbents with subsequent analysis by thermal desorption and coupled gas chromatography/mass spectrometry (TDS-GC/MS). For this purpose, it was necessary to investigate the performance of available sorbents and to optimize the parameters of GC/MS analysis. Stainless steel tubes filled with Carbograph 5TD were applied successfully for low-volume sampling (2-4 l) with minimal breakthrough (< 1%). With the developed method, VVOCs between C and C of different volatility and polarity can be detected even in trace quantities with low limits of quantitation (LOQ; 1-3 μg m). Limitations occur for low molecular weight compounds ≤C, especially for polar substances, such as carboxylic acids and for some aldehydes and alcohols. Consequently, established methods for the quantification of these compounds in indoor air cannot be fully substituted yet. At least three different analytical techniques are needed to cover the large spectrum of relevant VVOCs in indoor air. In addition, unexpected reaction products might occur and need to be taken into account to avoid misinterpretation of chromatographic signals. Graphical abstract Solid sorbent sampling of VVOCs (C-C) in indoor air with subsequent TDS-GC/MS analysis.

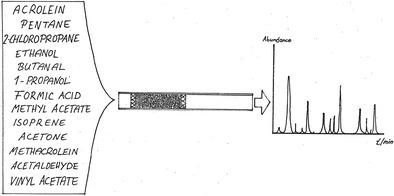

极易挥发有机化合物(VVOCs)物质组正成为室内空气分析的焦点,面临国际和欧洲层面针对室内空气质量和人类健康的现行法规。然而,目前尚无经过验证的用于室内空气中VVOCs鉴定和定量的分析方法。因此,本研究旨在开发一种分析方法,以便在固体吸附剂上采集室内空气中尽可能多的VVOCs,随后通过热脱附和联用气相色谱/质谱(TDS-GC/MS)进行分析。为此,有必要研究现有吸附剂的性能并优化GC/MS分析参数。填充有Carbograph 5TD的不锈钢管已成功应用于小体积采样(2 - 4升),穿透率极低(<1%)。采用所开发的方法,即使是痕量的不同挥发性和极性的C至C之间的VVOCs也能被检测到,定量下限较低(LOQ;1 - 3微克/立方米)。对于分子量≤C的低分子化合物,尤其是极性物质,如羧酸以及一些醛和醇类,存在局限性。因此,用于室内空气中这些化合物定量的现有方法尚不能被完全替代。至少需要三种不同的分析技术来涵盖室内空气中大量相关的VVOCs。此外,可能会出现意外的反应产物,需要加以考虑以避免对色谱信号的误判。图形摘要 室内空气中VVOCs(C - C)的固体吸附剂采样及随后的TDS - GC/MS分析
