Kukułka Wojciech, Wenelska Karolina, Baca Martyna, Chen Xuecheng, Mijowska Ewa
Nanomaterials Physicochemistry Department, Faculty of Chemical Technology and Engineering, West Pomeranian University of Technology, Szczecin, Piastow Av. 45, 70311 Szczecin, Poland.
Nanomaterials (Basel). 2018 Oct 20;8(10):861. doi: 10.3390/nano8100861.

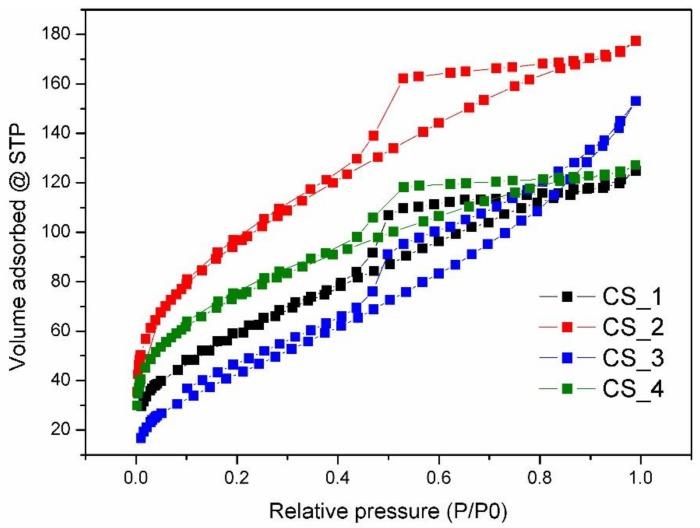

Here, we report a facile route for obtaining carbon spheres with fully tunable shell thickness. Using a hard template in chemical vapor deposition (CVD), hollow carbon spheres, solid carbon spheres, and intermediate structures can be obtained with optimized process time. The resulting carbon spheres with particle diameters of ~400 nm, as well as a controllable shell thickness from 0 to 70 nm, had high Brunauer⁻Emmett⁻Teller (BET) specific surface area (up to 344.8 m²·g) and pore volume (up to 0.248 cm³·g). The sphere formation mechanism is also proposed. This simple and reproducible technique can deliver carbon materials for various applications, e.g., energy storage and conversion, adsorption, catalytic, biomedical, and environmental applications.
在此,我们报道了一种获得壳层厚度完全可调的碳球的简便方法。在化学气相沉积(CVD)中使用硬模板,通过优化工艺时间可获得空心碳球、实心碳球及中间结构。所得粒径约为400 nm且壳层厚度可在0至70 nm之间调控的碳球具有较高的布鲁瑙尔-埃米特-泰勒(BET)比表面积(高达344.8 m²·g)和孔体积(高达0.248 cm³·g)。同时还提出了球的形成机理。这种简单且可重复的技术可为各种应用提供碳材料,例如能量存储与转换、吸附、催化、生物医学及环境应用。
