Department of Materials Science and Engineering, Seoul National University, Seoul 08826, Republic of Korea.
BK21 PLUS SNU Materials Division for Educating Creative Global Leaders, Seoul National University, Seoul 08826, Republic of Korea.
Sci Adv. 2018 Nov 23;4(11):eaat7387. doi: 10.1126/sciadv.aat7387. eCollection 2018 Nov.

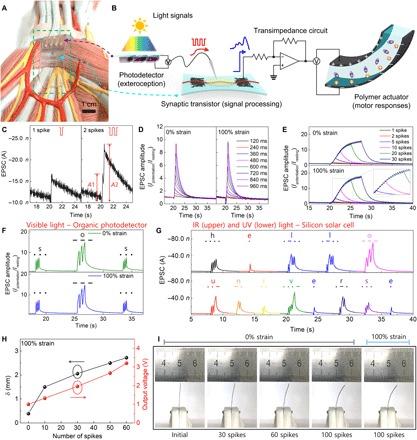

Emulation of human sensory and motor functions becomes a core technology in bioinspired electronics for next-generation electronic prosthetics and neurologically inspired robotics. An electronic synapse functionalized with an artificial sensory receptor and an artificial motor unit can be a fundamental element of bioinspired soft electronics. Here, we report an organic optoelectronic sensorimotor synapse that uses an organic optoelectronic synapse and a neuromuscular system based on a stretchable organic nanowire synaptic transistor (s-ONWST). The voltage pulses of a self-powered photodetector triggered by optical signals drive the s-ONWST, and resultant informative synaptic outputs are used not only for optical wireless communication of human-machine interfaces but also for light-interactive actuation of an artificial muscle actuator in the same way that a biological muscle fiber contracts. Our organic optoelectronic sensorimotor synapse suggests a promising strategy toward developing bioinspired soft electronics, neurologically inspired robotics, and electronic prostheses.
模仿人类的感觉和运动功能成为仿生电子学的核心技术，用于下一代电子假肢和神经启发型机器人。功能化的电子突触，结合人工感觉受体和人工运动单元，可以成为仿生软电子学的基本元件。在这里，我们报告了一种有机光电感觉运动突触，它使用有机光电突触和基于可拉伸有机纳米线突触晶体管（s-ONWST）的神经肌肉系统。光信号触发的自供电光电探测器的电压脉冲驱动 s-ONWST，而产生的信息性突触输出不仅可用于人机接口的光学无线通信，还可用于以与生物肌肉纤维收缩相同的方式，实现人工肌肉执行器的光交互式致动。我们的有机光电感觉运动突触为开发仿生软电子学、神经启发型机器人和电子假肢提供了一种很有前途的策略。
