Sorbonne Universités, Université de Technologie de Compiègne, Centre de Recherches de Royallieu, CS 60319, F-60203 Compiègne CEDEX, France.
PSL Research University, Chimie ParisTech, CNRS, Institute of Chemistry for Life and Health Sciences, 11 rue Pierre et Marie Curie, F-75231 Paris CEDEX 05, France.
Molecules. 2019 Mar 15;24(6):1030. doi: 10.3390/molecules24061030.

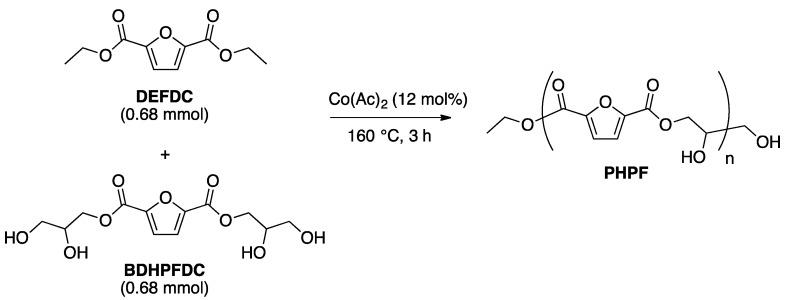

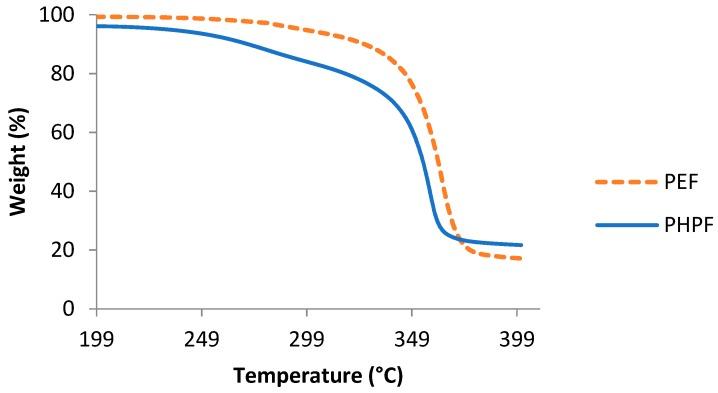

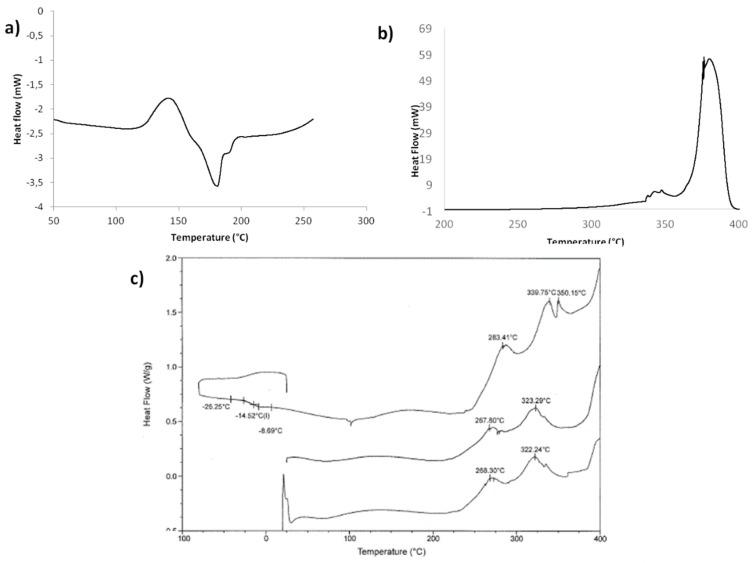

A one pot-two step procedure for the synthesis of diethyl furan-2,5-dicarboxylate (DEFDC) starting from mucic acid without isolation of the intermediate furan dicarboxylic acid (FDCA) was studied. Then, the production of three different kinds of furan-based polyesters- polyethylene-2,5-furan dicarboxylate (PEF), polyhydropropyl-2,5-furan dicarboxylate(PHPF) and polydiglycerol-2,5-furandicarboxylate (PDGF)-was realized through a Co(Ac)₂·4H₂O catalyzed polytransesterification performed at 160 °C between DEFDC and a defined diol furan-based prepolymer or pure diglycerol. In parallel to polymerization process, an unattended regioselective 1-OH acylation of glycerol by direct microwave-heated FDCA diester transesterification led to the formation of a symmetric prepolymer ready for further polymerization and clearly identified by 2D NMR sequences. Furthermore, the synthesis of a more soluble and hydrophilic diglycerol-based furanic polyester was also achieved. The resulting biobased polymers were characterized by NMR, FT-IR spectroscopy, DSC, TGA and XRD. The morphologies of the resulted polymers were observed by FE-SEM and the purity of the material by EDX.
从粘康酸出发,无需分离中间产物呋喃二羧酸(FDCA),通过一锅两步法合成了二乙酯呋喃-2,5-二羧酸(DEFDC)。然后,通过 Co(Ac)₂·4H₂O 催化的聚transesterification,在 160°C 下,将 DEFDC 与特定的二醇呋喃基预聚物或纯甘油二酯进行反应,实现了三种不同的呋喃基聚酯-聚 2,5-呋喃二羧酸乙酯(PEF)、聚 2,5-呋喃二羧酸丙二醇酯(PHPF)和聚 2,5-呋喃二羧酸甘油酯(PDGF)的生产。在聚合过程中,通过直接微波加热 FDCA 二酯的 transesterification,甘油的非催化 1-OH 酰化反应在无需人工干预的情况下进行,生成了可进一步聚合的对称预聚物,通过二维 NMR 序列可明确识别。此外,还合成了一种更易溶解和亲水的甘油基呋喃聚酯。通过 NMR、FT-IR 光谱、DSC、TGA 和 XRD 对所得到的生物基聚合物进行了表征。通过 FE-SEM 观察了所得聚合物的形态,通过 EDX 观察了材料的纯度。
