Jia Hao-Ran, Zhu Ya-Xuan, Xu Ke-Fei, Pan Guang-Yu, Liu Xiaoyang, Qiao Ying, Wu Fu-Gen
State Key Laboratory of Bioelectronics , School of Biological Science and Medical Engineering , Southeast University , Nanjing , 210096 , P. R. China . Email:
Chem Sci. 2019 Feb 25;10(14):4062-4068. doi: 10.1039/c8sc04884c. eCollection 2019 Apr 14.

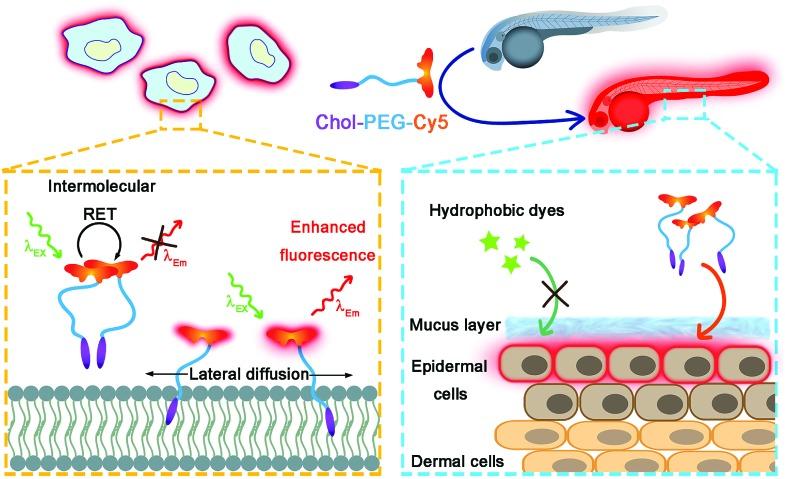

Imaging the dynamics and behaviors of plasma membranes is at the leading edge of life science research. We report here the development of a universal red-fluorescent probe Chol-PEG-Cy5 for wash-free plasma membrane labelling both and . In aqueous solutions, the fluorescence of Chol-PEG-Cy5 is significantly quenched due to the intermolecular resonance energy transfer (RET) between neighbouring Cy5 moieties; however, upon membrane anchoring, the probes undergo lateral diffusion in lipid bilayers, resulting in weakened RET and turn-on fluorescence emission. We demonstrate that Chol-PEG-Cy5 enables rapid, stable and high-quality cell surface imaging in a variety of mammalian cells. Additionally, with the assistance of three-dimensional (3D) image reconstruction, we achieve for the first time the whole-mount fluorescence imaging of the epidermal cell surfaces of live zebrafish embryos, which cannot be realized by conventional plasma membrane probes due to the presence of the surface-covering mucus barrier. This novel technique encourages us to track the cellular dynamics of the epidermis during embryonic development with 3D visualization. Moreover, we also develop a new method to evaluate the epidermal toxicity of nanomaterials (, gold nanoparticles and graphene oxide nanosheets) toward zebrafish embryos using this fluorescent probe.
