School of Surveying and Land Information Engineering, Henan Polytechnic University, Jiaozuo 454003, China.
Center for Environmental Remote Sensing, Chiba University, Chiba 2638522, Japan.
Sensors (Basel). 2019 Nov 29;19(23):5276. doi: 10.3390/s19235276.

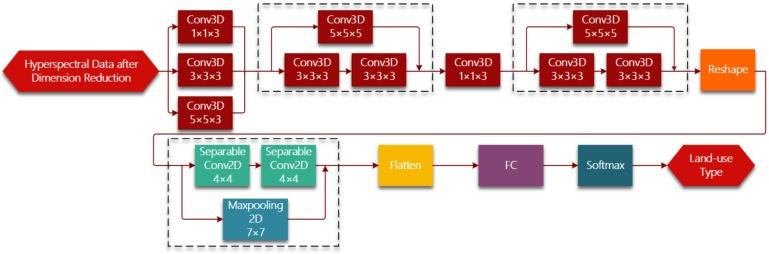

Every pixel in a hyperspectral image contains detailed spectral information in hundreds of narrow bands captured by hyperspectral sensors. Pixel-wise classification of a hyperspectral image is the cornerstone of various hyperspectral applications. Nowadays, deep learning models represented by the convolutional neural network (CNN) provides an ideal solution for feature extraction, and has made remarkable achievements in supervised hyperspectral classification. However, hyperspectral image annotation is time-consuming and laborious, and available training data is usually limited. Due to the "small-sample problem", CNN-based hyperspectral classification is still challenging. Focused on the limited sample-based hyperspectral classification, we designed an 11-layer CNN model called R-HybridSN (Residual-HybridSN) from the perspective of network optimization. With an organic combination of 3D-2D-CNN, residual learning, and depth-separable convolutions, R-HybridSN can better learn deep hierarchical spatial-spectral features with very few training data. The performance of R-HybridSN is evaluated over three public available hyperspectral datasets on different amounts of training samples. Using only 5%, 1%, and 1% labeled data for training in Indian Pines, Salinas, and University of Pavia, respectively, the classification accuracy of R-HybridSN is 96.46%, 98.25%, 96.59%, respectively, which is far better than the contrast models.
高光谱图像中的每个像素都包含由高光谱传感器捕获的数百个窄带的详细光谱信息。高光谱图像的像素分类是各种高光谱应用的基础。如今,以卷积神经网络 (CNN) 为代表的深度学习模型为特征提取提供了理想的解决方案,并在监督高光谱分类中取得了显著的成果。然而,高光谱图像注释既耗时又费力,并且可用的训练数据通常是有限的。由于“小样本问题”,基于 CNN 的高光谱分类仍然具有挑战性。针对基于有限样本的高光谱分类问题,我们从网络优化的角度设计了一个名为 R-HybridSN(残差-混合 SN)的 11 层 CNN 模型。通过 3D-2D-CNN、残差学习和深度可分离卷积的有机结合,R-HybridSN 可以在非常有限的训练数据下更好地学习深层层次的空间-光谱特征。在三个不同的公共高光谱数据集上,我们评估了 R-HybridSN 在不同数量的训练样本上的性能。在印第安纳松树、萨利纳斯和帕维亚大学数据集上,分别只用 5%、1%和 1%的标记数据进行训练,R-HybridSN 的分类精度分别为 96.46%、98.25%和 96.59%,明显优于对比模型。
