用于可穿戴和一次性皮肤伤口光医学的三明治结构可转移自由形式有机发光二极管

Sandwich-structure transferable free-form OLEDs for wearable and disposable skin wound photomedicine.

作者信息

Jeon Yongmin, Choi Hye-Ryung, Kwon Jeong Hyun, Choi Seungyeop, Nam Kyung Mi, Park Kyoung-Chan, Choi Kyung Cheol

机构信息

1School of Electrical Engineering, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, 34141 Republic of Korea.

2Department of Dermatology, Seoul National University Bundang Hospital (SNUBH), Seongnam, 13620 Republic of Korea.

出版信息

Light Sci Appl. 2019 Dec 9;8:114. doi: 10.1038/s41377-019-0221-3. eCollection 2019.

Abstract

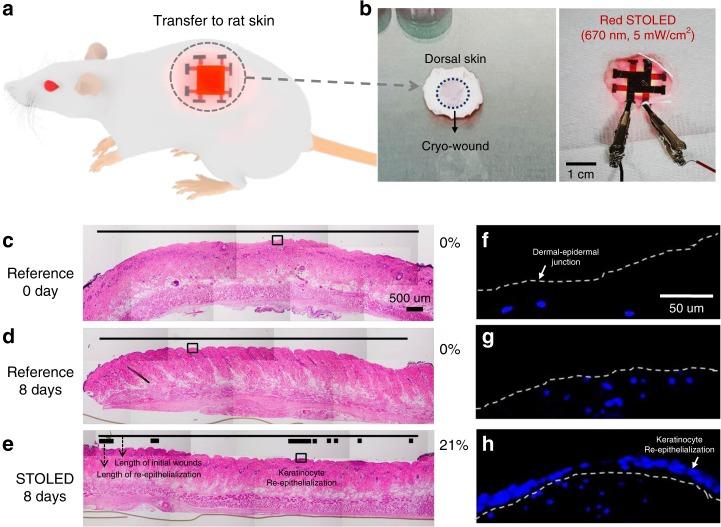

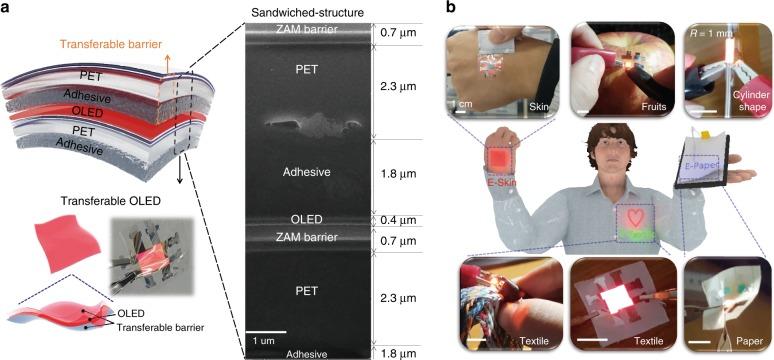

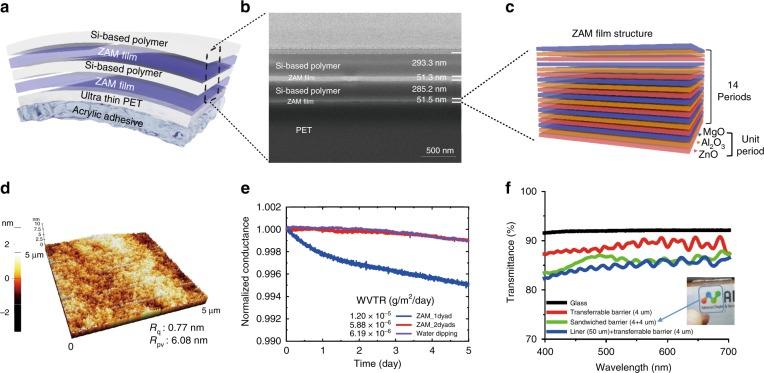

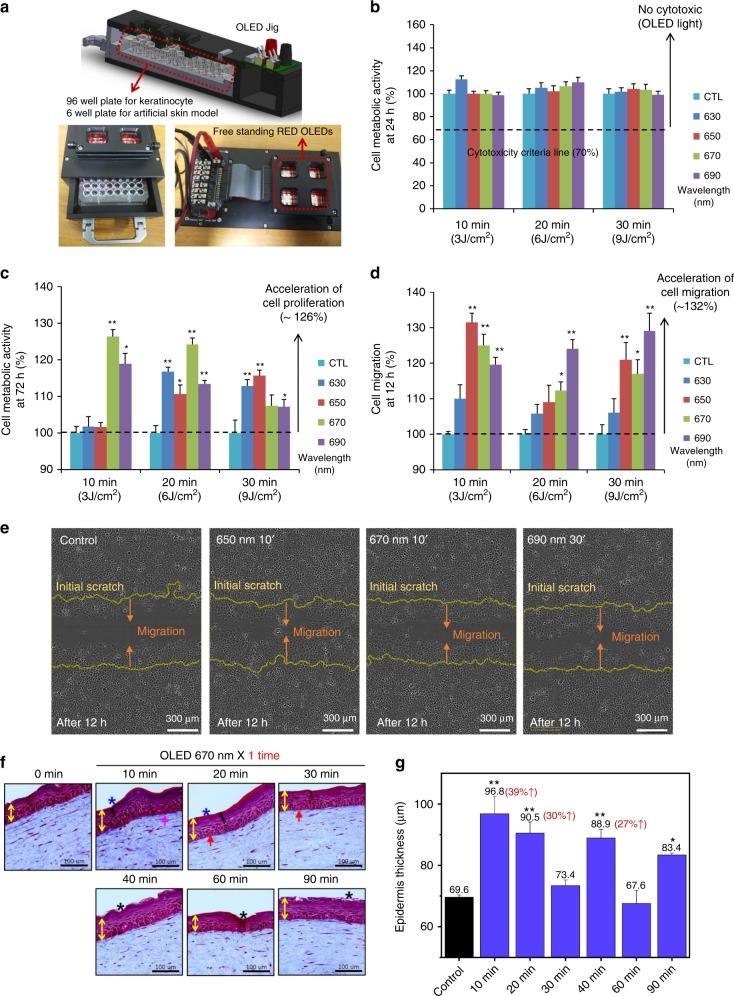

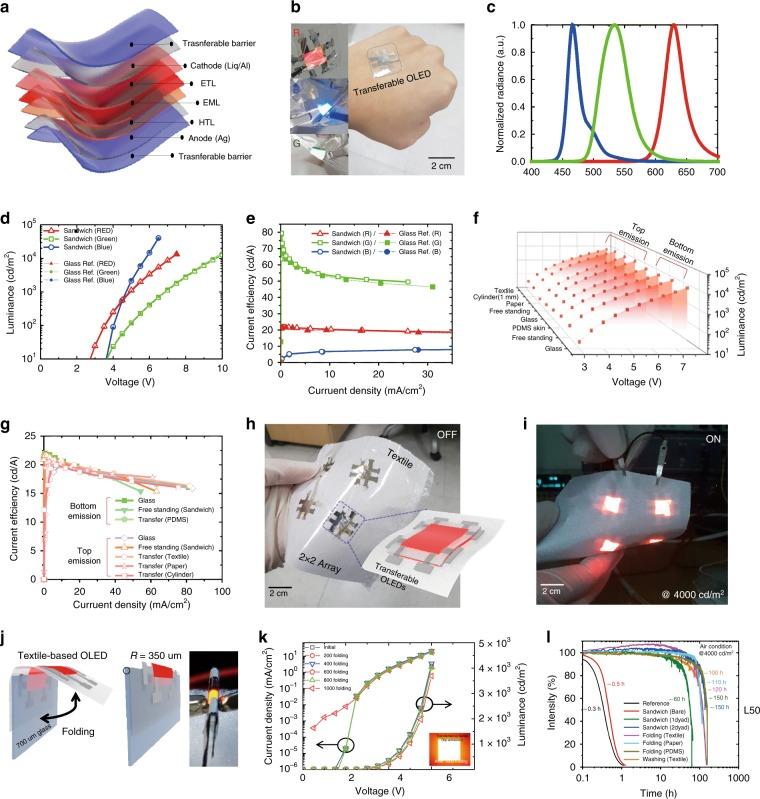

Free-form optoelectronic devices can provide hyper-connectivity over space and time. However, most conformable optoelectronic devices can only be fabricated on flat polymeric materials using low-temperature processes, limiting their application and forms. This paper presents free-form optoelectronic devices that are not dependent on the shape or material. For medical applications, the transferable OLED (10 μm) is formed in a sandwich structure with an ultra-thin transferable barrier (4.8 μm). The results showed that the fabricated sandwich-structure transferable OLED (STOLED) exhibit the same high-efficiency performance on cylindrical-shaped materials and on materials such as textile and paper. Because the neutral axis is freely adjustable using the sandwich structure, the textile-based OLED achieved both folding reliability and washing reliability, as well as a long operating life (>150 h). When keratinocytes were irradiated with red STOLED light, cell proliferation and cell migration increased by 26 and 32%, respectively. In the skin equivalent model, the epidermis thickness was increased by 39%; additionally, in organ culture, not only was the skin area increased by 14%, but also, re-epithelialization was highly induced. Based on the results, the STOLED is expected to be applicable in various wearable and disposable photomedical devices.

摘要

自由形态的光电器件可以在空间和时间上提供超连接性。然而,大多数可贴合的光电器件只能使用低温工艺在平坦的聚合物材料上制造,这限制了它们的应用和形式。本文介绍了不依赖于形状或材料的自由形态光电器件。对于医疗应用,可转移的OLED(10μm)与超薄可转移阻挡层(4.8μm)形成三明治结构。结果表明,所制备的三明治结构可转移OLED(STOLED)在圆柱形材料以及纺织品和纸张等材料上表现出相同的高效性能。由于使用三明治结构可自由调节中性轴,基于纺织品的OLED实现了折叠可靠性和洗涤可靠性,以及较长的使用寿命(>150小时)。当用红色STOLED光照射角质形成细胞时,细胞增殖和细胞迁移分别增加了26%和32%。在皮肤等效模型中,表皮厚度增加了39%;此外,在器官培养中,不仅皮肤面积增加了14%,而且还高度诱导了再上皮化。基于这些结果,STOLED有望应用于各种可穿戴和一次性光医疗设备。
