• 文献检索
  • 文档翻译
  • 深度研究
  • 学术资讯
  • Suppr Zotero 插件Zotero 插件
  • 邀请有礼
  • 套餐&价格
  • 历史记录
应用&插件
Suppr Zotero 插件Zotero 插件浏览器插件Mac 客户端Windows 客户端微信小程序
定价
高级版会员购买积分包购买API积分包
服务
文献检索文档翻译深度研究API 文档MCP 服务
关于我们
关于 Suppr公司介绍联系我们用户协议隐私条款
关注我们

Suppr 超能文献

核心技术专利：CN118964589B侵权必究
粤ICP备2023148730 号-1Suppr @ 2026

文献检索

告别复杂PubMed语法，用中文像聊天一样搜索，搜遍4000万医学文献。AI智能推荐，让科研检索更轻松。

立即免费搜索

文件翻译

保留排版，准确专业，支持PDF/Word/PPT等文件格式，支持 12+语言互译。

免费翻译文档

深度研究

AI帮你快速写综述，25分钟生成高质量综述，智能提取关键信息，辅助科研写作。

立即免费体验

利用原位中子衍射对增材制造的316L不锈钢和CrCoNi中熵合金进行堆垛层错能分析。

Stacking Fault Energy Analyses of Additively Manufactured Stainless Steel 316L and CrCoNi Medium Entropy Alloy Using In Situ Neutron Diffraction.

作者信息

Woo W, Jeong J S, Kim D-K, Lee C M, Choi S-H, Suh J-Y, Lee S Y, Harjo S, Kawasaki T

机构信息

Neutron Science Center, Korea Atomic Energy Research Institute, Daejeon, 34057, Korea.

Materials Technology Development Team, Doosan heavy industries, Changwon, 44610, Korea.

出版信息

Sci Rep. 2020 Jan 28;10(1):1350. doi: 10.1038/s41598-020-58273-3.

DOI:10.1038/s41598-020-58273-3
PMID:31992801
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC6987211/
Abstract

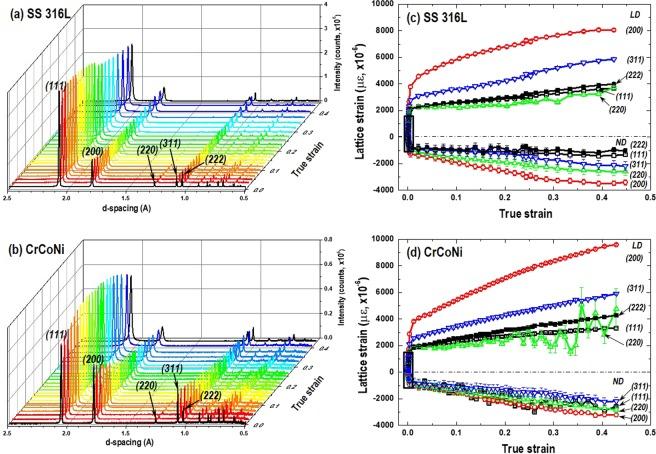

Stacking fault energies (SFE) were determined in additively manufactured (AM) stainless steel (SS 316 L) and equiatomic CrCoNi medium-entropy alloys. AM specimens were fabricated via directed energy deposition and tensile loaded at room temperature. In situ neutron diffraction was performed to obtain a number of faulting-embedded diffraction peaks simultaneously from a set of (hkl) grains during deformation. The peak profiles diffracted from imperfect crystal structures were analyzed to correlate stacking fault probabilities and mean-square lattice strains to the SFE. The result shows that averaged SFEs are 32.8 mJ/m for the AM SS 316 L and 15.1 mJ/m for the AM CrCoNi alloys. Meanwhile, during deformation, the SFE varies from 46 to 21 mJ/m (AM SS 316 L) and 24 to 11 mJ/m (AM CrCoNi) from initial to stabilized stages, respectively. The transient SFEs are attributed to the deformation activity changes from dislocation slip to twinning as straining. The twinning deformation substructure and atomic stacking faults were confirmed by electron backscatter diffraction (EBSD) and transmission electron microscopy (TEM). The significant variance of the SFE suggests the critical twinning stress as 830 ± 25 MPa for the AM SS 316 L and 790 ± 40 MPa for AM CrCoNi, respectively.

摘要

测定了增材制造（AM）不锈钢（SS 316L）和等原子CrCoNi中熵合金的堆垛层错能（SFE）。通过定向能量沉积制造AM试样，并在室温下进行拉伸加载。进行原位中子衍射，以便在变形过程中从一组（hkl）晶粒同时获得多个包含层错的衍射峰。分析从不完美晶体结构衍射的峰轮廓，以将堆垛层错概率和均方晶格应变与SFE相关联。结果表明，AM SS 316L的平均SFE为32.8 mJ/m，AM CrCoNi合金的平均SFE为15.1 mJ/m。同时，在变形过程中，SFE从初始阶段到稳定阶段分别从46至21 mJ/m（AM SS 316L）和24至11 mJ/m（AM CrCoNi）变化。瞬态SFE归因于应变时变形活动从位错滑移到孪生的变化。通过电子背散射衍射（EBSD）和透射电子显微镜（TEM）确认了孪生变形亚结构和原子堆垛层错。SFE的显著差异表明，AM SS 316L的临界孪生应力为830±25 MPa，AM CrCoNi的临界孪生应力为790±40 MPa。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/9ae5f3a40b94/41598_2020_58273_Fig8_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/da971e85c3b8/41598_2020_58273_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/0e6f2b8af3a1/41598_2020_58273_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/c15a097911b2/41598_2020_58273_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/a91ae32db224/41598_2020_58273_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/49d433072c7a/41598_2020_58273_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/50382ec716fb/41598_2020_58273_Fig6_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/770427a84fdb/41598_2020_58273_Fig7_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/9ae5f3a40b94/41598_2020_58273_Fig8_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/da971e85c3b8/41598_2020_58273_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/0e6f2b8af3a1/41598_2020_58273_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/c15a097911b2/41598_2020_58273_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/a91ae32db224/41598_2020_58273_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/49d433072c7a/41598_2020_58273_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/50382ec716fb/41598_2020_58273_Fig6_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/770427a84fdb/41598_2020_58273_Fig7_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2256/6987211/9ae5f3a40b94/41598_2020_58273_Fig8_HTML.jpg

相似文献

1
Stacking Fault Energy Analyses of Additively Manufactured Stainless Steel 316L and CrCoNi Medium Entropy Alloy Using In Situ Neutron Diffraction.利用原位中子衍射对增材制造的316L不锈钢和CrCoNi中熵合金进行堆垛层错能分析。
Sci Rep. 2020 Jan 28;10(1):1350. doi: 10.1038/s41598-020-58273-3.
2
Impact of Chemical Fluctuations on Stacking Fault Energies of CrCoNi and CrMnFeCoNi High Entropy Alloys from First Principles.基于第一性原理研究化学波动对CrCoNi和CrMnFeCoNi高熵合金堆垛层错能的影响
Entropy (Basel). 2018 Aug 30;20(9):655. doi: 10.3390/e20090655.
3
Microstructural Evolution and Mechanical Properties of Non-Equiatomic (CoNi)CrFeC High-Entropy Alloy.非等原子(CoNi)CrFeC高熵合金的微观结构演变与力学性能
Materials (Basel). 2022 Feb 10;15(4):1312. doi: 10.3390/ma15041312.
4
Effects of V Addition on the Deformation Mechanism and Mechanical Properties of Non-Equiatomic CoCrNi Medium-Entropy Alloys.V添加对非等原子CoCrNi中熵合金变形机制及力学性能的影响
Materials (Basel). 2023 Jul 22;16(14):5167. doi: 10.3390/ma16145167.
5
Correlating work hardening with co-activation of stacking fault strengthening and transformation in a high entropy alloy using in-situ neutron diffraction.利用原位中子衍射研究高熵合金中加工硬化与层错强化及相变共激活之间的关联。
Sci Rep. 2020 Dec 17;10(1):22263. doi: 10.1038/s41598-020-79492-8.
6
Atomic-Scale In Situ Observations of Reversible Phase Transformation Assisted Twinning in a CrCoNi Medium-Entropy Alloy.CrCoNi中熵合金中可逆相变辅助孪晶的原子尺度原位观察
Nano Lett. 2024 Mar 27;24(12):3624-3630. doi: 10.1021/acs.nanolett.3c04516. Epub 2024 Feb 29.
7
Influence of Annealing on Microstructure and Mechanical Properties of a Nanocrystalline CrCoNi Medium-Entropy Alloy.退火对纳米晶CrCoNi中熵合金微观结构和力学性能的影响
Materials (Basel). 2018 Apr 24;11(5):662. doi: 10.3390/ma11050662.
8
Microstructure Evolution of 316L Steel Prepared with the Use of Additive and Conventional Methods and Subjected to Dynamic Loads: A Comparative Study.采用增材制造和传统方法制备并承受动态载荷的316L钢的微观结构演变：一项对比研究。
Materials (Basel). 2020 Oct 31;13(21):4893. doi: 10.3390/ma13214893.
9
Impact of interstitial elements on the stacking fault energy of an equiatomic CoCrNi medium entropy alloy: theory and experiments.间隙元素对等原子CoCrNi中熵合金堆垛层错能的影响：理论与实验
Sci Technol Adv Mater. 2022 Aug 30;23(1):376-392. doi: 10.1080/14686996.2022.2080512. eCollection 2022.
10
Stacking Fault Driven Phase Transformation in CrCoNi Medium Entropy Alloy.CrCoNi中熵合金中堆垛层错驱动的相变
Nano Lett. 2021 Feb 10;21(3):1419-1426. doi: 10.1021/acs.nanolett.0c04244. Epub 2021 Jan 19.

引用本文的文献

1
Elucidating the role of stacking faults in TlGaSe on its thermoelectric properties.阐明层错在TlGaSe中对其热电性能的作用。
NPJ 2D Mater Appl. 2025;9(1):46. doi: 10.1038/s41699-025-00569-x. Epub 2025 Jun 6.
2
Investigation of Microstructures and Tensile Properties of 316L Stainless Steel Fabricated via Laser Powder Bed Fusion.激光粉末床熔融制备316L不锈钢的微观结构与拉伸性能研究
Materials (Basel). 2024 Feb 16;17(4):913. doi: 10.3390/ma17040913.
3
Microstructural Evolution and Mechanical Properties of Non-Equiatomic (CoNi)CrFeC High-Entropy Alloy.

本文引用的文献

1
Additive Manufacturing of High-Entropy Alloys: A Review.高熵合金的增材制造：综述
Entropy (Basel). 2018 Dec 6;20(12):937. doi: 10.3390/e20120937.
2
Additive manufacturing of metals: a brief review of the characteristic microstructures and properties of steels, Ti-6Al-4V and high-entropy alloys.金属的增材制造：钢、Ti-6Al-4V和高熵合金的特征微观结构与性能简述
Sci Technol Adv Mater. 2017 Aug 25;18(1):584-610. doi: 10.1080/14686996.2017.1361305. eCollection 2017.
3
Dislocation mechanisms and 3D twin architectures generate exceptional strength-ductility-toughness combination in CrCoNi medium-entropy alloy.
非等原子(CoNi)CrFeC高熵合金的微观结构演变与力学性能
Materials (Basel). 2022 Feb 10;15(4):1312. doi: 10.3390/ma15041312.
4
The Influence of Metastable Cellular Structure on Deformation Behavior in Laser Additively Manufactured 316L Stainless Steel.亚稳细胞结构对激光增材制造316L不锈钢变形行为的影响。
Nanomaterials (Basel). 2021 Oct 26;11(11):2859. doi: 10.3390/nano11112859.
5
Tensile Properties and Deformation of AISI 316L Additively Manufactured with Various Energy Densities.不同能量密度下增材制造的AISI 316L的拉伸性能与变形
Materials (Basel). 2021 Oct 4;14(19):5809. doi: 10.3390/ma14195809.
位错机制和 3D 孪晶结构在 CrCoNi 中熵合金中产生了优异的强韧性能组合。
Nat Commun. 2017 Feb 20;8:14390. doi: 10.1038/ncomms14390.
4
Size effect, critical resolved shear stress, stacking fault energy, and solid solution strengthening in the CrMnFeCoNi high-entropy alloy.CrMnFeCoNi高熵合金中的尺寸效应、临界分切应力、堆垛层错能及固溶强化
Sci Rep. 2016 Oct 24;6:35863. doi: 10.1038/srep35863.
5
Exceptional damage-tolerance of a medium-entropy alloy CrCoNi at cryogenic temperatures.中熵合金CrCoNi在低温下具有卓越的损伤容限。
Nat Commun. 2016 Feb 2;7:10602. doi: 10.1038/ncomms10602.
6
A fracture-resistant high-entropy alloy for cryogenic applications.一种用于低温应用的抗断裂高熵合金。
Science. 2014 Sep 5;345(6201):1153-8. doi: 10.1126/science.1254581.
