尺寸和形状各向异性对CdSe量子点光学性质的影响
Influence of Size and Shape Anisotropy on Optical Properties of CdSe Quantum Dots.
作者信息
Kim Sung Hun, Man Minh Tan, Lee Joong Wook, Park Kyoung-Duck, Lee Hong Seok
机构信息
Department of Physics, Research Institute of Physics and Chemistry, Jeonbuk National University, Jeonju 54896, Korea.
Institute of Theoretical and Applied Research, Duy Tan University, Hanoi 100000, Vietnam.
出版信息
Nanomaterials (Basel). 2020 Aug 12;10(8):1589. doi: 10.3390/nano10081589.

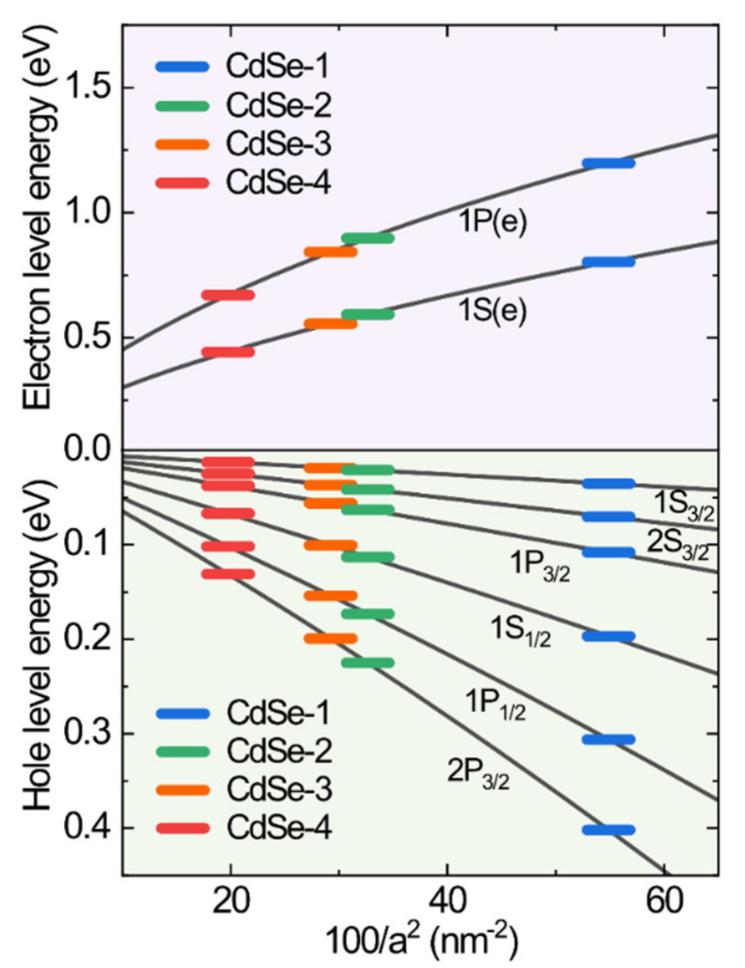

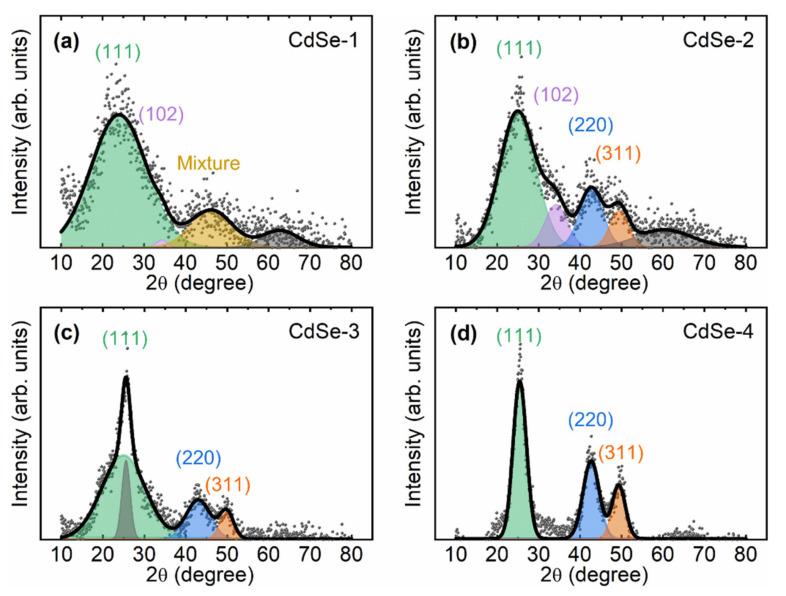

We used low-temperature reactions to synthesize different-sized CdSe quantum dots (QDs) capped with fatty-acid and phosphine ligands. From the correlation of high-resolution transmission electron microscopy and X-ray diffraction (XRD) analyses of the synthesized QDs, we observed size-dependent shape anisotropy. In addition, the recorded XRD patterns revealed mixed crystal facets with zinc blende and wurtzite structures in small-sized QDs. Furthermore, from differential absorption (DA) spectra, we extracted the electronic transition energies for different-sized QDs, which were found to be similar to the calculated values of the quantum size levels associated with band mixing of CdSe QDs with a moderate bandgap. We found that the excitonic absorption peaks are increasingly "hidden" with decreasing QD size because of the crystal structure and crystalline quality. The results show good agreement with the obtained diffraction patterns and the estimation errors obtained from the DA spectra.
我们利用低温反应合成了不同尺寸的、由脂肪酸和膦配体包覆的硒化镉量子点(QDs)。通过对合成的量子点进行高分辨率透射电子显微镜和X射线衍射(XRD)分析,并将二者关联起来,我们观察到了尺寸依赖的形状各向异性。此外,记录的XRD图谱显示,小尺寸量子点中存在闪锌矿和纤锌矿结构的混合晶面。此外,通过差分吸收(DA)光谱,我们提取了不同尺寸量子点的电子跃迁能量,发现这些能量与具有中等带隙的硒化镉量子点能带混合相关的量子尺寸能级的计算值相似。我们发现,由于晶体结构和晶体质量的原因,随着量子点尺寸的减小,激子吸收峰越来越“隐蔽”。结果与获得的衍射图谱以及从DA光谱获得的估计误差显示出良好的一致性。
