Sun Bin-Bin, Yao Bing-Hua, Fu Zheng-Sheng, He Yang-Qing
College of Materials Science and Engineering, Xi'an University of Technology, Xi'an, China.
Department of Chemical Engineering, Shaanxi Vocational and Technical College of Defense Industry, Xi'an, China.
Des Monomers Polym. 2020 Jul 26;23(1):106-117. doi: 10.1080/15685551.2020.1796362.

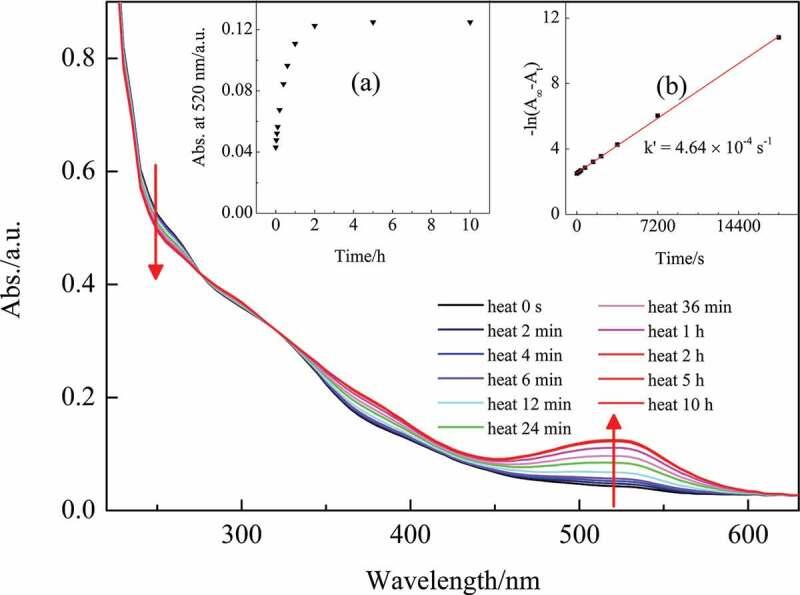

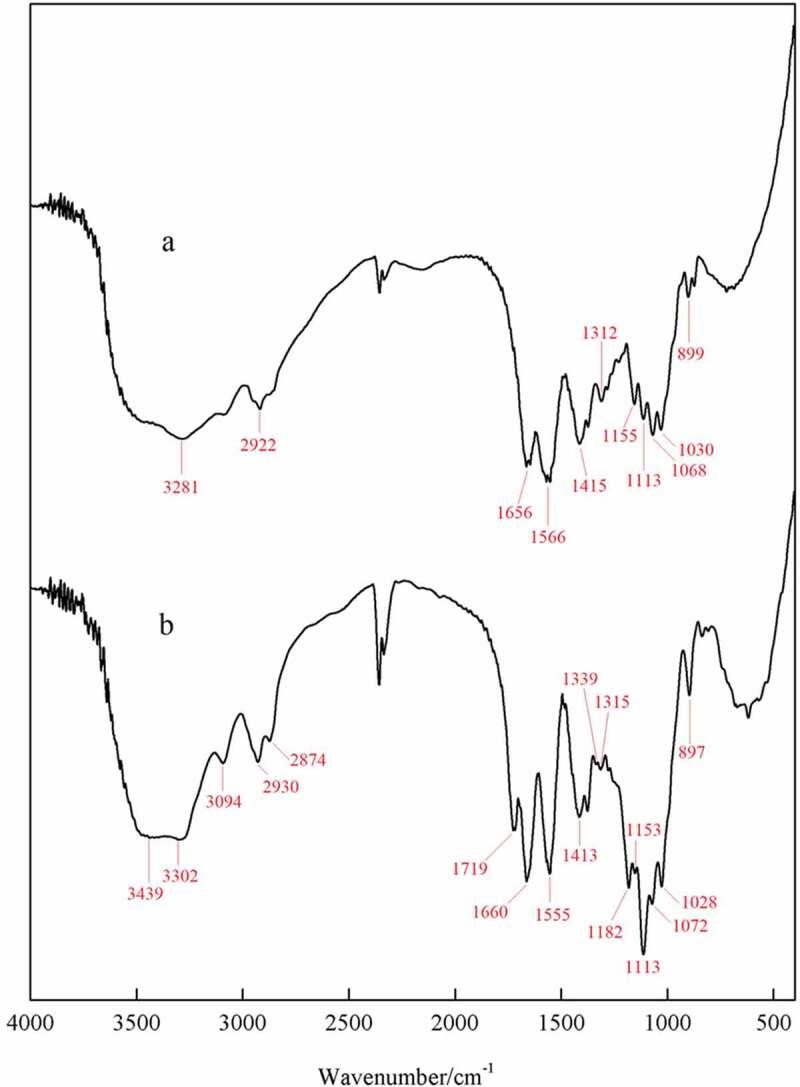

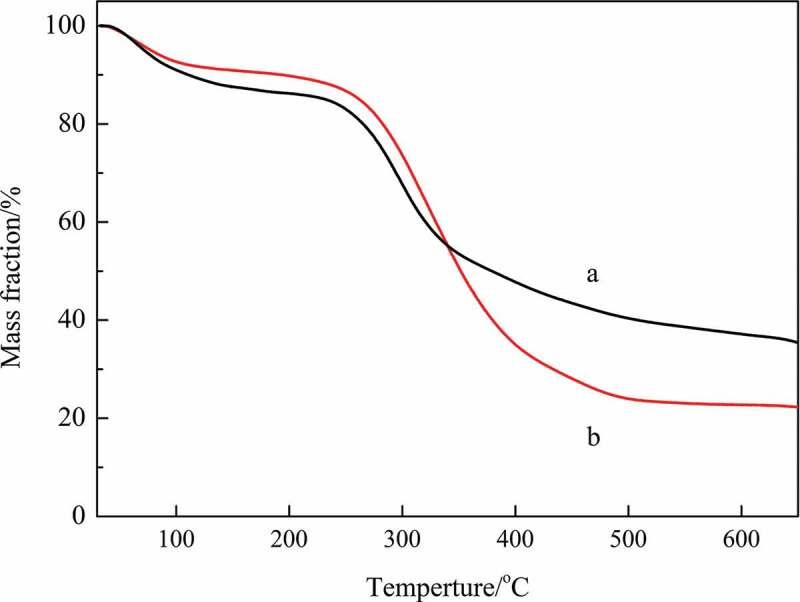

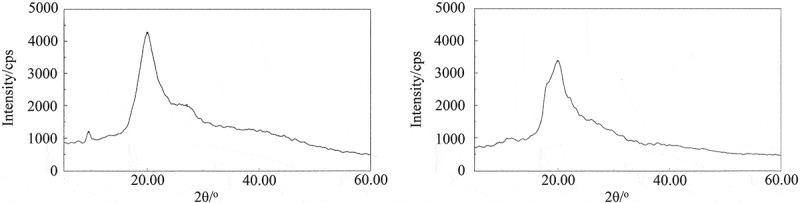

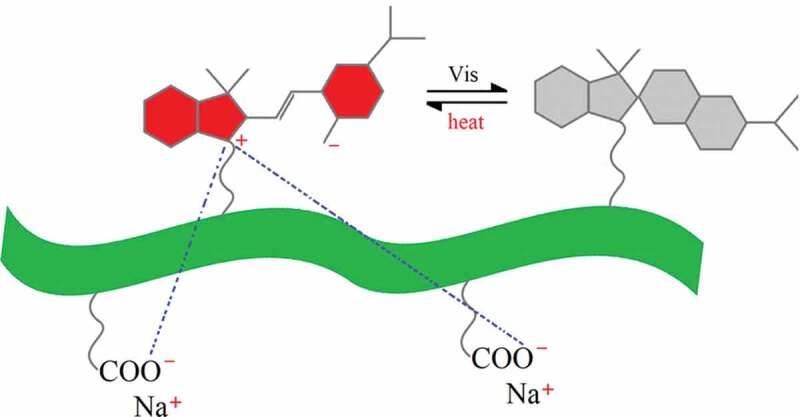

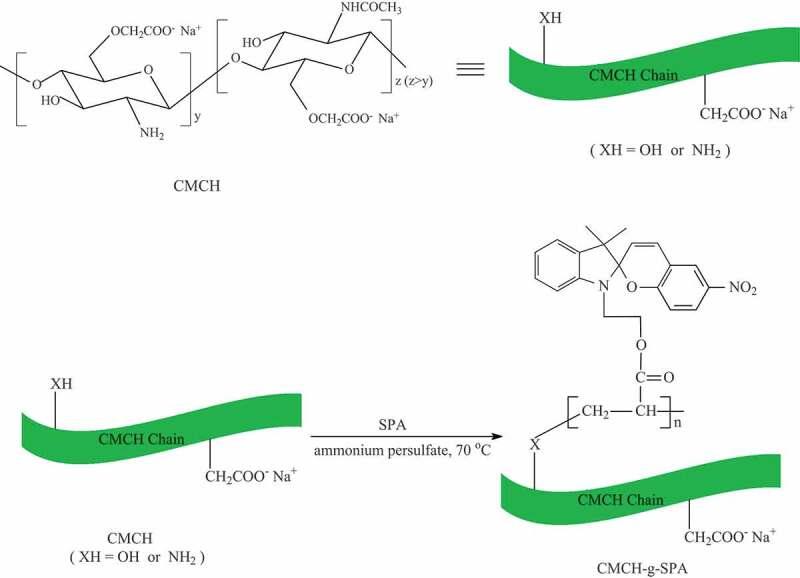

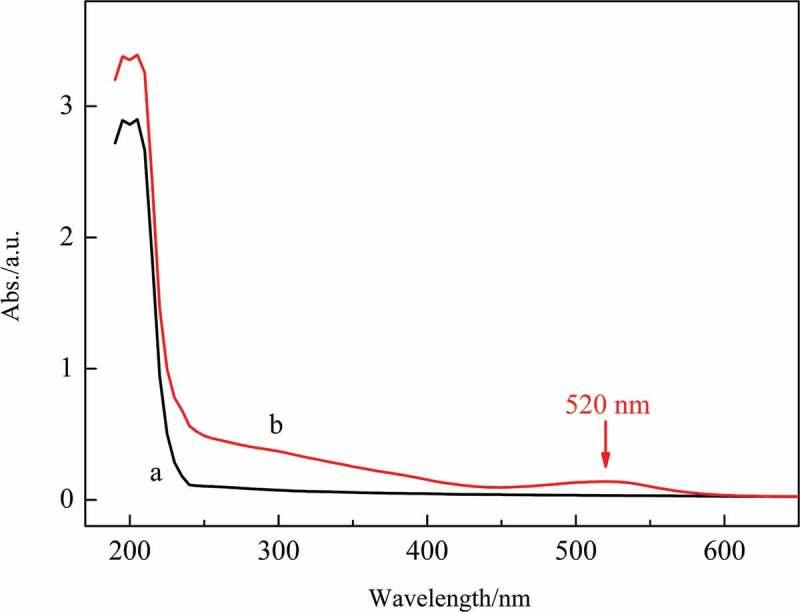

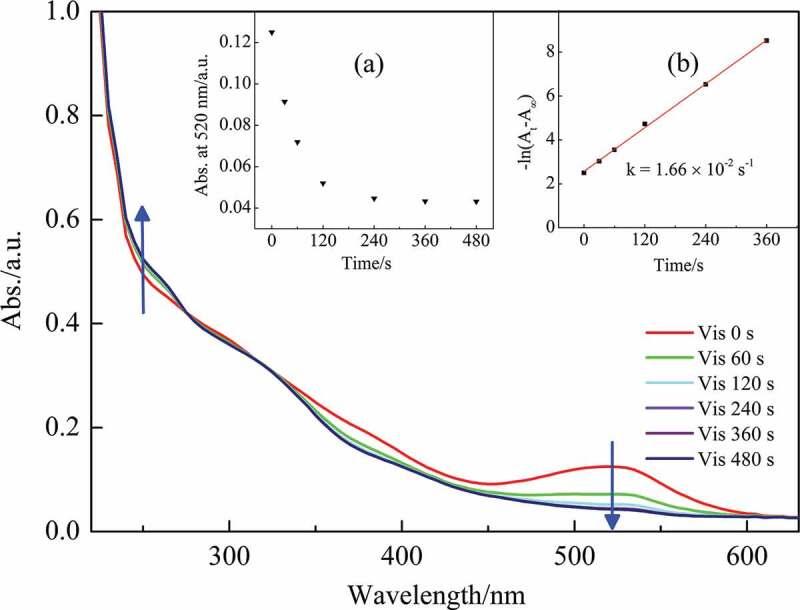

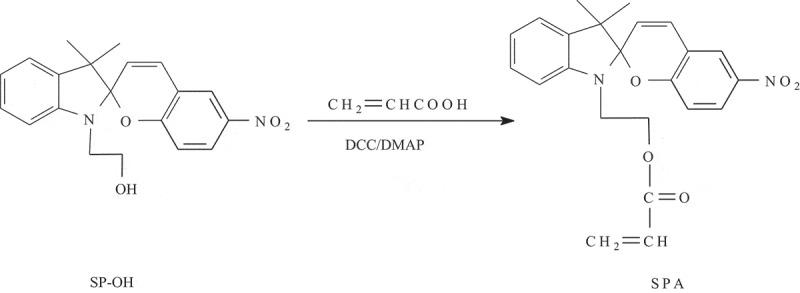

1'-(2-Acryloxyethyl)-3,3'-dimethyl-6-nitrospiro[2 -1-benzopyran-2,2'-indoline] (SPA) was synthesized and grafted onto a water-soluble carboxymethyl chitin (CMCH) macromolecule to prepare a photochromic copolymer (CMCH-g-SPA). The structure of CMCH-g-SPA was characterized by Fourier-transform infrared (FT-IR) spectroscopy, thermogravimetric (TG) analysis, X-ray diffraction (XRD) analysis, water-solubility evaluation, and UV-vis spectroscopy. XRD patterns of CMCH-g-SPA revealed that grafting copolymerization disrupts the CMCH semicrystalline structure, thus improving water solubility. UV-vis spectroscopy results supported the negative photochromic behavior of the merocyanine (MC) form of CMCH-g-SPA (CMCH-g-MCA) present in a water solution of the target copolymer. In addition to high solvent polarity, the intermolecular and intramolecular electrostatic attraction between the indolenine cation and the COO anion were found to be influencing factors, which stabilize these MC form of spiropyran groups grafted onto CMCH. In a water solution, visible light bleaching was completed over a short period (8 minutes) under artificial visible light irradiation and the thermal coloration reaction, whose rate constant at 25 °C was 4.64 × 10 s, which fit the first-order reaction equation. After ten photochromic cycles in water solution, the relative absorption intensity of CMCH-g-MCA decreased by 7.92%.
