持续性 COVID-19 嗅觉丧失患者的嗅球 MRI 和鼻窦 CT 表现。
Olfactory Bulb MRI and Paranasal Sinus CT Findings in Persistent COVID-19 Anosmia.
机构信息
University of Iowa Hospital and Clinics, Department of Radiology, Iowa City, Iowa.
Biruni University, Medical Faculty; Acıbadem Taksim Hospital, Department of Otolaryngology, Istanbul, Turkey.
出版信息
Acad Radiol. 2021 Jan;28(1):28-35. doi: 10.1016/j.acra.2020.10.006. Epub 2020 Oct 19.
BACKGROUND AND PURPOSE
There is limited literature consisting of case reports or series on olfactory bulb imaging in COVID-19 olfactory dysfunction. An imaging study with objective clinical correlation is needed in COVID-19 anosmia in order to better understand underlying pathogenesis.
MATERIAL AND METHODS

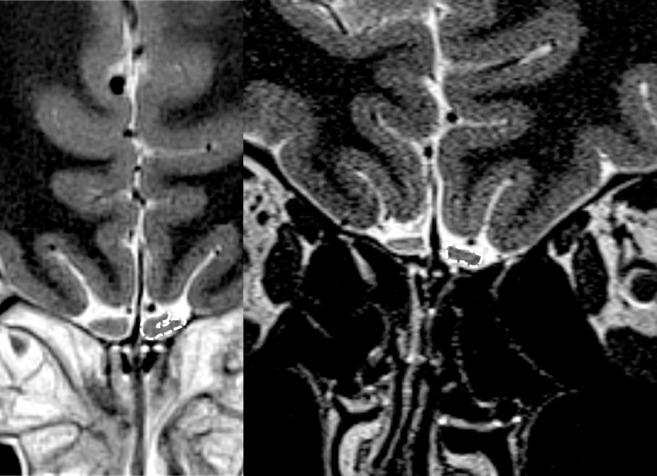

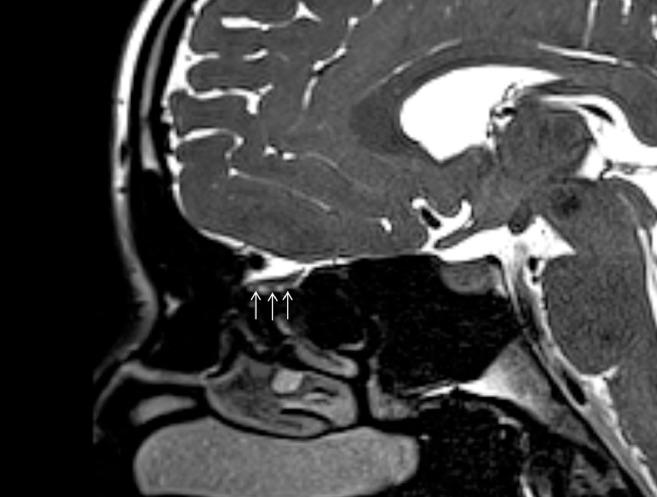

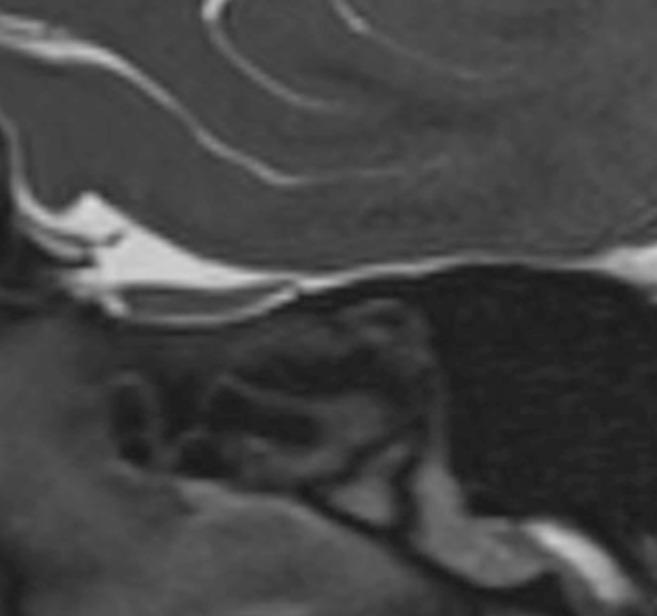

We evaluated 23 patients with persistent COVID-19 olfactory dysfunction. Patients included in this study had a minimum 1-month duration between onset of olfactory dysfunction and evaluation. Olfactory functions were evaluated with Sniffin' Sticks Test. Paranasal sinus CTs and MRI dedicated to olfactory nerves were acquired. On MRI, quantitative measurements of olfactory bulb volumes and olfactory sulcus depth and qualitative assessment of olfactory bulb morphology, signal intensity, and olfactory nerve filia architecture were performed.
RESULTS
All patients were anosmic at the time of imaging based on olfactory test results. On CT, Olfactory cleft opacification was seen in 73.9% of cases with a mid and posterior segment dominance. 43.5% of cases had below normal olfactory bulb volumes and 60.9% of cases had shallow olfactory sulci. Of all, 54.2% of cases had changes in normal inverted J shape of the bulb. 91.3% of cases had abnormality in olfactory bulb signal intensity in the forms of diffusely increased signal intensity, scattered hyperintense foci or microhemorrhages. Evident clumping of olfactory filia was seen in 34.8% of cases and thinning with scarcity of filia in 17.4%. Primary olfactory cortical signal abnormality was seen in 21.7% of cases.
CONCLUSION
Our findings indicate olfactory cleft and olfactory bulb abnormalities are seen in COVID-19 anosmia. There was a relatively high percentage of olfactory bulb degeneration. Further longitudinal imaging studies could shed light on the mechanism of olfactory neuronal pathway injury in COVID-19 anosmia.
背景与目的
关于 COVID-19 嗅觉功能障碍的嗅球成像,仅有少数病例报告或系列研究。为了更好地了解潜在发病机制,需要对 COVID-19 嗅觉丧失进行一项具有客观临床相关性的影像学研究。
材料与方法
我们评估了 23 例持续性 COVID-19 嗅觉功能障碍患者。纳入本研究的患者在嗅觉功能障碍发作和评估之间的时间间隔至少为 1 个月。使用 Sniffin' Sticks 测试评估嗅觉功能。获取用于嗅神经的副鼻窦 CT 和 MRI。在 MRI 上,对嗅球体积和嗅沟深度进行定量测量,并对嗅球形态、信号强度和嗅神经纤维结构进行定性评估。
结果
所有患者在进行影像学检查时均为嗅觉丧失。在 CT 上,73.9%的病例嗅裂混浊,以中后段为主。43.5%的病例嗅球体积低于正常,60.9%的病例嗅沟浅。在所有病例中,54.2%的病例嗅球形态发生变化,呈正常的倒 J 形。91.3%的病例嗅球信号强度异常,表现为弥漫性信号强度增高、散在高信号灶或微出血。34.8%的病例嗅丝明显聚集,17.4%的病例嗅丝变薄稀疏。21.7%的病例初级嗅皮质信号异常。
结论
我们的发现表明 COVID-19 嗅觉丧失患者嗅裂和嗅球异常。嗅球退行性变的比例相对较高。进一步的纵向影像学研究可能有助于阐明 COVID-19 嗅觉丧失中嗅神经元通路损伤的机制。
