Carmagnola Irene, Chiono Valeria, Ruocco Gerardina, Scalzone Annachiara, Gentile Piergiorgio, Taddei Paola, Ciardelli Gianluca
Department of Mechanical and Aerospace Engineering, Politecnico di Torino, 10129 Torino, Italy.
POLITO BIOMedLAB, Politecnico di Torino, 10129 Turin, Italy.
Nanomaterials (Basel). 2020 Nov 2;10(11):2184. doi: 10.3390/nano10112184.

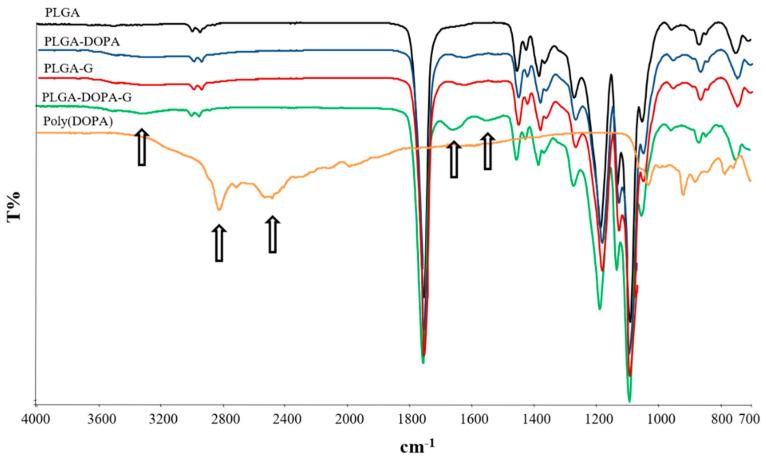

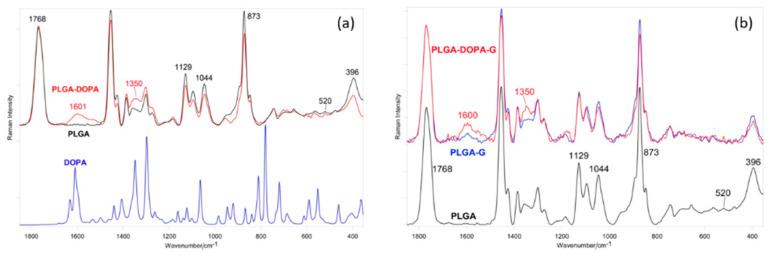

Electrospun membranes have been widely used as scaffolds for soft tissue engineering due to their extracellular matrix-like structure. A mussel-inspired coating approach based on 3,4-dihydroxy-DL-phenylalanine (DOPA) polymerization was proposed to graft gelatin (G) onto poly(lactic-co-glycolic) acid (PLGA) electrospun membranes. PolyDOPA coating allowed grafting of gelatin to PLGA fibers without affecting their bulk characteristics, such as molecular weight and thermal properties. PLGA electrospun membranes were dipped in a DOPA solution (2 mg/mL, Tris/HCl 10 mM, pH 8.5) for 7 h and then incubated in G solution (2 mg/mL, Tris/HCl 10 mM, pH 8.5) for 16 h. PLGA fibers had an average diameter of 1.37 ± 0.23 µm. Quartz crystal microbalance with dissipation technique (QCM-D) analysis was performed to monitor DOPA polymerization over time: after 7 h the amount of deposited polyDOPA was 71 ng/cm. After polyDOPA surface functionalization, which was, also revealed by Raman spectroscopy, PLGA membranes maintained their fibrous morphology, however the fiber size and junction number increased. Successful functionalization with G was demonstrated by FTIR-ATR spectra, which showed the presence of G adsorption bands at 1653 cm (Amide I) and 1544 cm (Amide II) after G grafting, and by the Kaiser Test, which revealed a higher amount of amino groups for G functionalized membranes. Finally, the biocompatibility of the developed substrates and their ability to induce cell growth was assessed using Neonatal Normal Human Dermal Fibroblasts.
由于其类似细胞外基质的结构,电纺膜已被广泛用作软组织工程的支架。提出了一种基于3,4-二羟基-DL-苯丙氨酸(DOPA)聚合的贻贝启发涂层方法,将明胶(G)接枝到聚(乳酸-共-乙醇酸)(PLGA)电纺膜上。聚多巴胺涂层允许明胶接枝到PLGA纤维上,而不会影响其整体特性,如分子量和热性能。将PLGA电纺膜浸入DOPA溶液(2mg/mL,Tris/HCl 10mM,pH 8.5)中7小时,然后在G溶液(2mg/mL,Tris/HCl 10mM,pH 8.5)中孵育16小时。PLGA纤维的平均直径为1.37±0.23µm。采用具有耗散技术的石英晶体微天平(QCM-D)分析来监测DOPA随时间的聚合情况:7小时后,沉积的聚多巴胺量为71ng/cm。聚多巴胺表面功能化后,拉曼光谱也显示了这一点,PLGA膜保持其纤维形态,但纤维尺寸和连接数增加。FTIR-ATR光谱证明了G的成功功能化,该光谱显示接枝G后在1653cm(酰胺I)和1544cm(酰胺II)处存在G吸附带,凯氏试验表明G功能化膜的氨基含量更高。最后,使用新生儿正常人皮肤成纤维细胞评估了所开发底物的生物相容性及其诱导细胞生长的能力。
