Department of Biomedical Engineering, The Hong Kong Polytechnic University, Hong Kong 999077, China.
Shenzhen Research Institute, The Hong Kong Polytechnic University, Shenzhen 518057, China.
Sensors (Basel). 2020 Dec 7;20(23):6983. doi: 10.3390/s20236983.

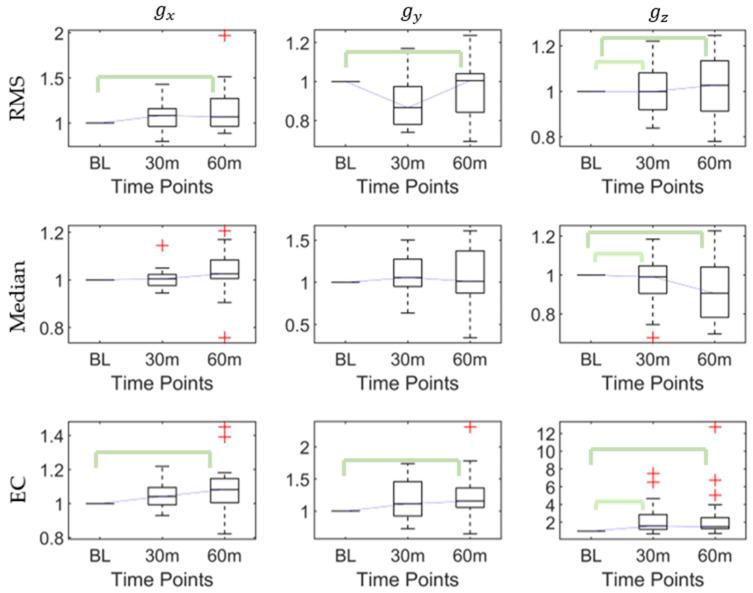

Real-time detection of fatigue in the elderly during physical exercises can help identify the stability and thus falling risks which are commonly achieved by the investigation of kinematic parameters. In this study, we aimed to identify the change in gait variability parameters from inertial measurement units (IMU) during a course of 60 min brisk walking which could lay the foundation for the development of fatigue-detecting wearable sensors. Eighteen elderly people were invited to participate in the brisk walking trials for 60 min with a single IMU attached to the posterior heel region of the dominant side. Nine sets of signals, including the accelerations, angular velocities, and rotation angles of the heel in three anatomical axes, were measured and extracted at the three walking times (baseline, 30th min, and 60th min) of the trial for analysis. Sixteen of eighteen participants reported fatigue after walking, and there were significant differences in the median acceleration ( = 0.001), variability of angular velocity ( = 0.025), and range of angle rotation ( = 0.0011), in the medial-lateral direction. In addition, there were also significant differences in the heel pronation angle ( = 0.005) and variability and energy consumption of the angles in the anterior-posterior axis ( = 0.028, = 0.028), medial-lateral axis ( = 0.014, = 0.014), and vertical axis ( = 0.002, < 0.001). Our study demonstrated that a single IMU on the posterior heel of the dominant side can address the variability of kinematics parameters for elderly performing prolonged brisk walking and could serve as an indicator for walking instability, and thus fatigue.
实时检测老年人在体育锻炼过程中的疲劳有助于识别稳定性,从而降低常见的运动学参数研究中跌倒的风险。在这项研究中,我们旨在识别惯性测量单元(IMU)在 60 分钟轻快步行过程中步态变化参数的变化,为疲劳检测可穿戴传感器的发展奠定基础。邀请 18 名老年人参加 60 分钟的轻快步行试验,在优势侧的后脚跟区域附着一个 IMU。在试验的三个步行时间(基线、第 30 分钟和第 60 分钟)测量和提取了包括脚跟在三个解剖轴上的加速度、角速度和旋转角度在内的九组信号,用于分析。18 名参与者中有 16 名在步行后报告疲劳,在中间-外侧方向的加速度中位数( = 0.001)、角速度变异性( = 0.025)和角度旋转范围( = 0.0011)存在显著差异。此外,在前-后轴( = 0.005)和角度变异性和能量消耗( = 0.028, = 0.028)、中间-外侧轴( = 0.014, = 0.014)和垂直轴( = 0.002, < 0.001)的脚跟内旋角也存在显著差异。我们的研究表明,优势侧后脚跟的单个 IMU 可以解决进行长时间轻快步行的老年人运动学参数的可变性,并且可以作为不稳定和疲劳的指标。
