Deep Learning-Based Multimodal Data Fusion: Case Study in Food Intake Episodes Detection Using Wearable Sensors.

BACKGROUND

Multimodal wearable technologies have brought forward wide possibilities in human activity recognition, and more specifically personalized monitoring of eating habits. The emerging challenge now is the selection of most discriminative information from high-dimensional data collected from multiple sources. The available fusion algorithms with their complex structure are poorly adopted to the computationally constrained environment which requires integrating information directly at the source. As a result, more simple low-level fusion methods are needed.

OBJECTIVE

In the absence of a data combining process, the cost of directly applying high-dimensional raw data to a deep classifier would be computationally expensive with regard to the response time, energy consumption, and memory requirement. Taking this into account, we aimed to develop a data fusion technique in a computationally efficient way to achieve a more comprehensive insight of human activity dynamics in a lower dimension. The major objective was considering statistical dependency of multisensory data and exploring intermodality correlation patterns for different activities.

METHODS

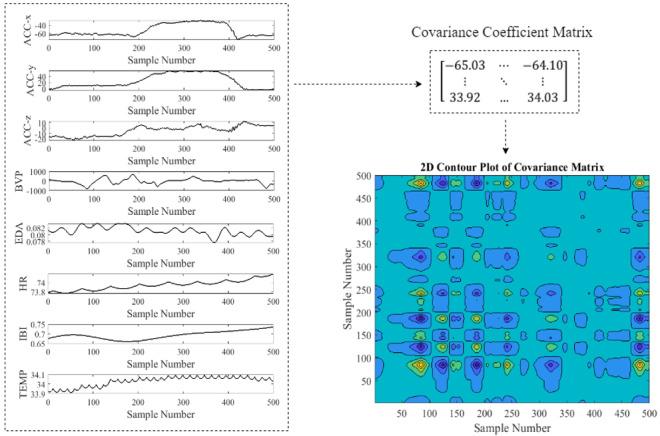

In this technique, the information in time (regardless of the number of sources) is transformed into a 2D space that facilitates classification of eating episodes from others. This is based on a hypothesis that data captured by various sensors are statistically associated with each other and the covariance matrix of all these signals has a unique distribution correlated with each activity which can be encoded on a contour representation. These representations are then used as input of a deep model to learn specific patterns associated with specific activity.

RESULTS

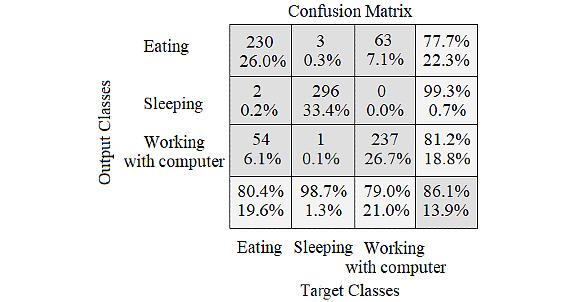

In order to show the generalizability of the proposed fusion algorithm, 2 different scenarios were taken into account. These scenarios were different in terms of temporal segment size, type of activity, wearable device, subjects, and deep learning architecture. The first scenario used a data set in which a single participant performed a limited number of activities while wearing the Empatica E4 wristband. In the second scenario, a data set related to the activities of daily living was used where 10 different participants wore inertial measurement units while performing a more complex set of activities. The precision metric obtained from leave-one-subject-out cross-validation for the second scenario reached 0.803. The impact of missing data on performance degradation was also evaluated.

CONCLUSIONS

To conclude, the proposed fusion technique provides the possibility of embedding joint variability information over different modalities in just a single 2D representation which results in obtaining a more global view of different aspects of daily human activities at hand, and yet preserving the desired performance level in activity recognition.
