Howaili Fadak, Özliseli Ezgi, Küçüktürkmen Berrin, Razavi Seyyede Mahboubeh, Sadeghizadeh Majid, Rosenholm Jessica M
NanoBiotechnology Department, Faculty of Biological Science, Tarbiat Modares University, Tehran, Iran.
Pharmaceutical Sciences Laboratory, Faculty of Science and Engineering, Åbo Akademi University, Turku, Finland.
Front Chem. 2021 Jan 20;8:602941. doi: 10.3389/fchem.2020.602941. eCollection 2020.

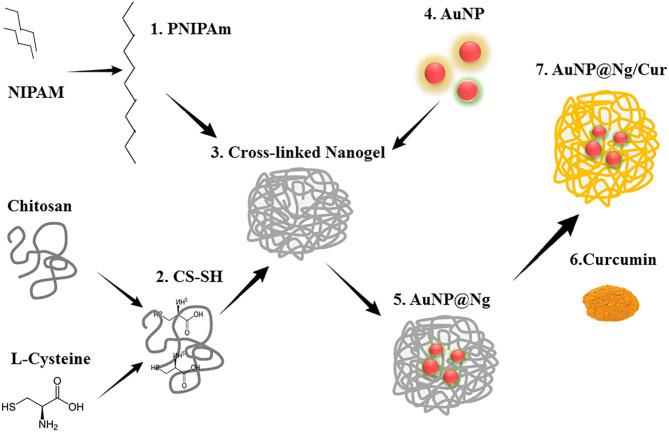

Nanogels (Ng) are crosslinked polymer-based hydrogel nanoparticles considered to be next-generation drug delivery systems due to their superior properties, including high drug loading capacity, low toxicity, and stimuli responsiveness. In this study, dually thermo-pH-responsive plasmonic nanogel (AuNP@Ng) was synthesized by grafting poly (N-isopropyl acrylamide) (PNIPAM) to chitosan (CS) in the presence of a chemical crosslinker to serve as a drug carrier system. The nanogel was further incorporated with gold nanoparticles (AuNP) to provide simultaneous drug delivery and photothermal therapy (PTT). Curcumin's (Cur) low water solubility and low bioavailability are the biggest obstacles to effective use of curcumin for anticancer therapy, and these obstacles can be overcome by utilizing an efficient delivery system. Therefore, curcumin was chosen as a model drug to be loaded into the nanogel for enhancing the anticancer efficiency, and further, its therapeutic efficiency was enhanced by PTT of the formulated AuNP@Ng. Thorough characterization of Ng based on CS and PNIPAM was conducted to confirm successful synthesis. Furthermore, photothermal properties and swelling ratio of fabricated nanoparticles were evaluated. Morphology and size measurements of nanogel were determined by transmission electron microscopy (TEM), scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDX). Nanogel was found to have a hydrodynamic size of ~167 nm and exhibited sustained release of curcumin up to 72 h with dual thermo-pH responsive drug release behavior, as examined under different temperature and pH conditions. Cytocompatibility of plasmonic nanogel was evaluated on MDA-MB-231 human breast cancer and non-tumorigenic MCF 10A cell lines, and the findings indicated the nanogel formulation to be cytocompatible. Nanoparticle uptake studies showed high internalization of nanoparticles in cancer cells when compared with non-tumorigenic cells and confocal microscopy further demonstrated that AuNP@Ng were internalized into the MDA-MB-231 cancer cells via endosomal route. cytotoxicity studies revealed dose-dependent and time-dependent drug delivery of curcumin loaded AuNP@Ng/Cur. Furthermore, the developed nanoparticles showed an improved chemotherapy efficacy when irradiated with near-infrared (NIR) laser (808 nm) . This work revealed that synthesized plasmonic nanogel loaded with curcumin (AuNP@Ng/Cur) can act as stimuli-responsive nanocarriers, having potential for dual therapy i.e., delivery of hydrophobic drug and photothermal therapy.
纳米凝胶(Ng)是基于交联聚合物的水凝胶纳米颗粒,由于其优异的性能,包括高载药量、低毒性和刺激响应性,被认为是下一代药物递送系统。在本研究中,通过在化学交联剂存在下将聚(N-异丙基丙烯酰胺)(PNIPAM)接枝到壳聚糖(CS)上,合成了具有双重热- pH响应性的等离子体纳米凝胶(AuNP@Ng),用作药物载体系统。该纳米凝胶进一步与金纳米颗粒(AuNP)结合,以实现同时给药和光热疗法(PTT)。姜黄素(Cur)的低水溶性和低生物利用度是有效利用姜黄素进行抗癌治疗的最大障碍,而利用高效的递送系统可以克服这些障碍。因此,选择姜黄素作为模型药物加载到纳米凝胶中以提高抗癌效率,此外,通过配制的AuNP@Ng的PTT进一步提高了其治疗效率。基于CS和PNIPAM对Ng进行了全面表征,以确认合成成功。此外,还评估了制备的纳米颗粒的光热性能和溶胀率。通过透射电子显微镜(TEM)、扫描电子显微镜(SEM)和能量色散X射线光谱(EDX)测定了纳米凝胶的形态和尺寸。发现纳米凝胶的流体动力学尺寸约为167 nm,在不同温度和pH条件下进行检测时,表现出姜黄素的持续释放长达72小时,并具有双重热- pH响应药物释放行为。在MDA-MB-231人乳腺癌细胞系和非致瘤性MCF 10A细胞系上评估了等离子体纳米凝胶的细胞相容性,结果表明该纳米凝胶制剂具有细胞相容性。纳米颗粒摄取研究表明,与非致瘤性细胞相比癌细胞对纳米颗粒的内化程度更高,共聚焦显微镜进一步证明AuNP@Ng通过内吞途径内化到MDA-MB-23癌细胞中。细胞毒性研究揭示了负载姜黄素的AuNP@Ng/Cur的剂量依赖性和时间依赖性药物递送。此外,当用近红外(NIR)激光(808 nm)照射时,所制备的纳米颗粒显示出更高的化疗效果。这项工作表明,负载姜黄素的合成等离子体纳米凝胶(AuNP@Ng/Cur)可以作为刺激响应性纳米载体,具有双重治疗的潜力,即递送疏水性药物和光热疗法。
