Zhou Kai Ling, Han Chang Bao, Wang Zelin, Ke Xiaoxing, Wang Changhao, Jin Yuhong, Zhang Qianqian, Liu Jingbing, Wang Hao, Yan Hui
Faculty of Materials and Manufacturing Key Laboratory of Advanced Functional Materials Education Ministry of China Beijing University of Technology Beijing 100124 P. R. China.
Adv Sci (Weinh). 2021 May 13;8(12):2100347. doi: 10.1002/advs.202100347. eCollection 2021 Jun.

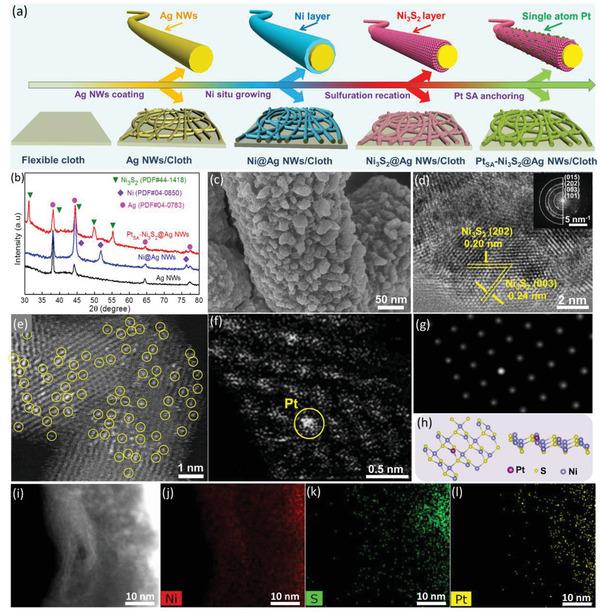

Catalytically active metals atomically dispersed on supports presents the ultimate atom utilization efficiency and cost-effective pathway for electrocatalyst design. Optimizing the coordination nature of metal atoms represents the advanced strategy for enhancing the catalytic activity and the selectivity of single-atom catalysts (SACs). Here, we designed a transition-metal based sulfide-NiS with abundant exposed Ni vacancies created by the interaction between chloride ions and the functional groups on the surface of Ni3S2 for the anchoring of atomically dispersed Pt (Pt-NiS). The theoretical calculation reveals that unique Pt-NiS support interaction increases the orbital electron occupation at the Fermi level and leads to a shift-down of the -band center, which energetically enhances HO adsorption and provides the optimum H binding sites. Introducing Pt into Ni position in NiS system can efficiently enhance electronic field distribution and construct a metallic-state feature on the Pt sites by the orbital hybridization between S-3p and Pt-5d for improved reaction kinetics. Finally, the fabricated Pt-NiS SAC is supported by Ag nanowires network to construct a seamless conductive three-dimensional (3D) nanostructure (Pt-NiS@Ag NWs), and the developed catalyst shows an extremely great mass activity of 7.6 A mg with 27-time higher than the commercial Pt/C HER catalyst.
原子分散在载体上的催化活性金属为电催化剂设计提供了最终的原子利用效率和经济高效的途径。优化金属原子的配位性质是提高单原子催化剂(SAC)催化活性和选择性的先进策略。在此,我们设计了一种基于过渡金属的硫化物-NiS,通过氯离子与Ni3S2表面官能团之间的相互作用产生大量暴露的Ni空位,用于锚定原子分散的Pt(Pt-NiS)。理论计算表明,独特的Pt-NiS载体相互作用增加了费米能级处的轨道电子占据,并导致能带中心下移,这在能量上增强了HO吸附并提供了最佳的H结合位点。在NiS体系中,将Pt引入Ni位置可以通过S-3p和Pt-5d之间的轨道杂化有效地增强电场分布,并在Pt位点上构建金属态特征,从而改善反应动力学。最后,制备的Pt-NiS SAC由银纳米线网络支撑,构建了无缝导电三维(3D)纳米结构(Pt-NiS@Ag NWs),所开发的催化剂显示出极高的质量活性,为7.6 A mg,比商业Pt/C析氢催化剂高27倍。
