Wu Dan, Li Wenhui, Liu Haochen, Xiao Xiangtian, Shi Kanming, Tang Haodong, Shan Chengwei, Wang Kai, Sun Xiao Wei, Kyaw Aung Ko Ko
Guangdong University Key Laboratory for Advanced Quantum Dot Displays, Shenzhen Key Laboratory for Advanced Quantum Dot Displays and Lighting, Department of Electrical & Electronic Engineering, Southern University of Science and Technology, Xueyuan Blvd. 1088, Shenzhen, 518055, P. R. China.
College of New Materials and New Energies, Shenzhen Technology University, Lantian Road 3002, Shenzhen, 518118, P. R. China.
Adv Sci (Weinh). 2021 Sep;8(18):e2101729. doi: 10.1002/advs.202101729. Epub 2021 Jul 15.

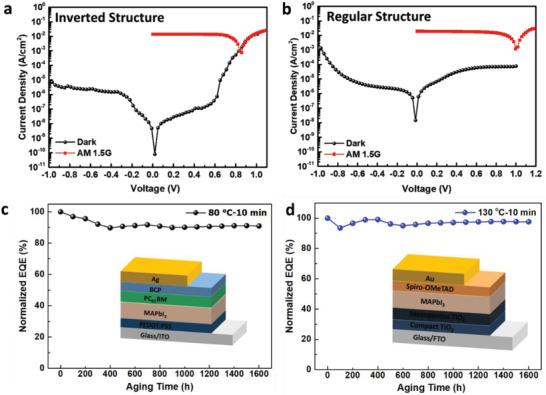

Organic-inorganic halide perovskites have demonstrated significant light detection potential, with a performance comparable to that of commercially available photodetectors. In this study, a general design guideline, which is applicable to both inverted and regular structures, is proposed for high-performance perovskite photodiodes through an interfacial built-in electric field (E) for efficient carrier separation and transport. The interfacial E generated at the interface between the active and charge transport layers far from the incident light is critical for effective charge carrier collection. The interfacial E can be modulated by unintentional doping of the perovskite, whose doping type and density can be easily controlled by the post-annealing time and temperature. Employing the proposed design guideline, the inverted and regular perovskite photodiodes exhibit the external quantum efficiency of 83.51% and 76.5% and responsivities of 0.37 and 0.34 A W , respectively. In the self-powered mode, the dark currents reach 7.95 × 10 and 1.47 × 10 A cm , providing high detectivities of 7.34 × 10 and 4.96 × 10 Jones, for inverted and regular structures, respectively, and a long-term stability of at least 1600 h. This optimization strategy is compatible with existing materials and device structures and hence leads to substantial potential applications in perovskite-based optoelectronic devices.
有机-无机卤化物钙钛矿已展现出显著的光探测潜力,其性能与市售光电探测器相当。在本研究中,通过用于有效载流子分离和传输的界面内建电场(E),为高性能钙钛矿光电二极管提出了一种适用于倒置和常规结构的通用设计准则。在远离入射光的有源层和电荷传输层之间的界面处产生的界面E对于有效收集电荷载流子至关重要。界面E可通过钙钛矿的无意掺杂进行调制,其掺杂类型和密度可通过退火时间和温度轻松控制。采用所提出的设计准则,倒置和常规钙钛矿光电二极管分别展现出83.51%和76.5%的外量子效率以及0.37和0.34 A W的响应度。在自供电模式下,暗电流分别达到7.95×10和1.47×10 A cm,倒置和常规结构的探测率分别高达7.34×10和4.96×10 Jones,并且具有至少1600 h的长期稳定性。这种优化策略与现有材料和器件结构兼容,因此在基于钙钛矿的光电器件中具有巨大潜在应用。
