Ashfaq Atif, Ikram Muhammad, Haider Ali, Ul-Hamid Anwar, Shahzadi Iram, Haider Junaid
Solar Cell Application Research Lab, Department of Physics, Government College University Lahore, Lahore, Punjab, 54000, Pakistan.
Department of Clinical Medicine and Surgery, University of Veterinary and Animal Sciences, Lahore, Punjab, 54000, Pakistan.
Nanoscale Res Lett. 2021 Jul 26;16(1):119. doi: 10.1186/s11671-021-03573-4.

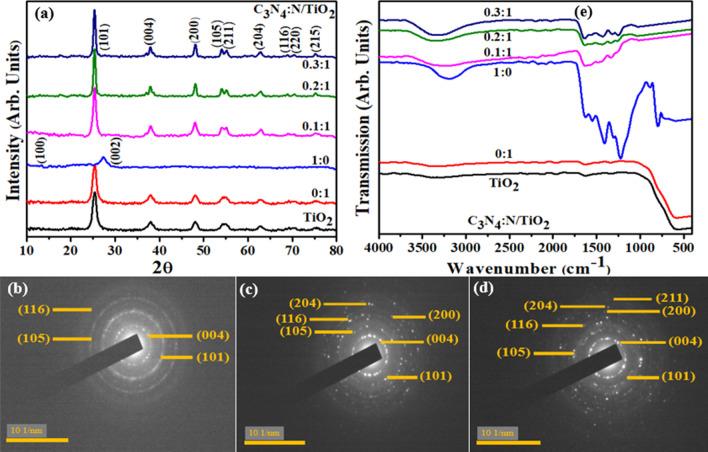

Nitrogen (N) and carbon nitride (CN)-doped TiO nanostructures were prepared using co-precipitation route. Fixed amount of N and various concentrations (0.1, 0.2, 0.3 wt%) of CN were doped in TiO lattice. Through multiple techniques, structural, chemical, optical and morphological properties of samples were thoroughly investigated. XRD results verified anatase TiO presence along the substitutional doping of N, while higher degree of crystallinity as well as increased crystallite size were noticed after doping. HR-TEM study revealed formation of nanostructures incorporated on two dimensional (2D) CN nanosheet surface. Elemental composition was checked out using EDS technique which confirmed the presence of dopant in product. Optical characteristics were evaluated with UV-vis spectroscopy which depicted representative redshift in absorption spectra resulted in a reduction in bandgap energy in N/CN-doped TiO samples. The formation of Ti-O-Ti bonds and different molecular vibrations were disclosed by FTIR. Trap sites and charge carrier's migration in the materials were evaluated with PL spectroscopy. Multiple catalytic activities (photo, sono and photo-sono) were undertaken to evaluate the dye degradation performance of prepared specimen against methylene blue and ciprofloxacin. Further, antimicrobial activity was analyzed against Escherichia coli (E. coli) and Staphylococcus aureus (S. aureus) bacteria.
采用共沉淀法制备了氮(N)和碳氮化物(CN)掺杂的TiO纳米结构。在TiO晶格中掺杂固定量的N和不同浓度(0.1、0.2、0.3 wt%)的CN。通过多种技术,对样品的结构、化学、光学和形态学性质进行了深入研究。XRD结果证实了在N的替代掺杂下存在锐钛矿TiO,而掺杂后观察到结晶度更高以及晶粒尺寸增大。高分辨透射电子显微镜(HR-TEM)研究揭示了在二维(2D)CN纳米片表面形成了纳米结构。使用能谱仪(EDS)技术检测了元素组成,证实了产物中掺杂剂的存在。用紫外可见光谱对光学特性进行了评估,该光谱显示吸收光谱中出现典型的红移,导致N/CN掺杂TiO样品的带隙能量降低。傅里叶变换红外光谱(FTIR)揭示了Ti-O-Ti键的形成和不同的分子振动。用光致发光光谱(PL)评估了材料中的陷阱位点和电荷载流子的迁移。进行了多种催化活性(光催化、声催化和光声催化)实验,以评估制备的样品对亚甲基蓝和环丙沙星的染料降解性能。此外,还分析了对大肠杆菌(E. coli)和金黄色葡萄球菌(S. aureus)的抗菌活性。
