Division of Digestive Surgery, Department of Surgery, Kyoto Prefectural University of Medicine, 465 Kajii-cho, Kamigyo-ku, Kyoto, 602-8566, Japan.
Graduate School of Medicine, The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo, 113-0033, Japan.
Sci Rep. 2021 Sep 9;11(1):17946. doi: 10.1038/s41598-021-97073-1.

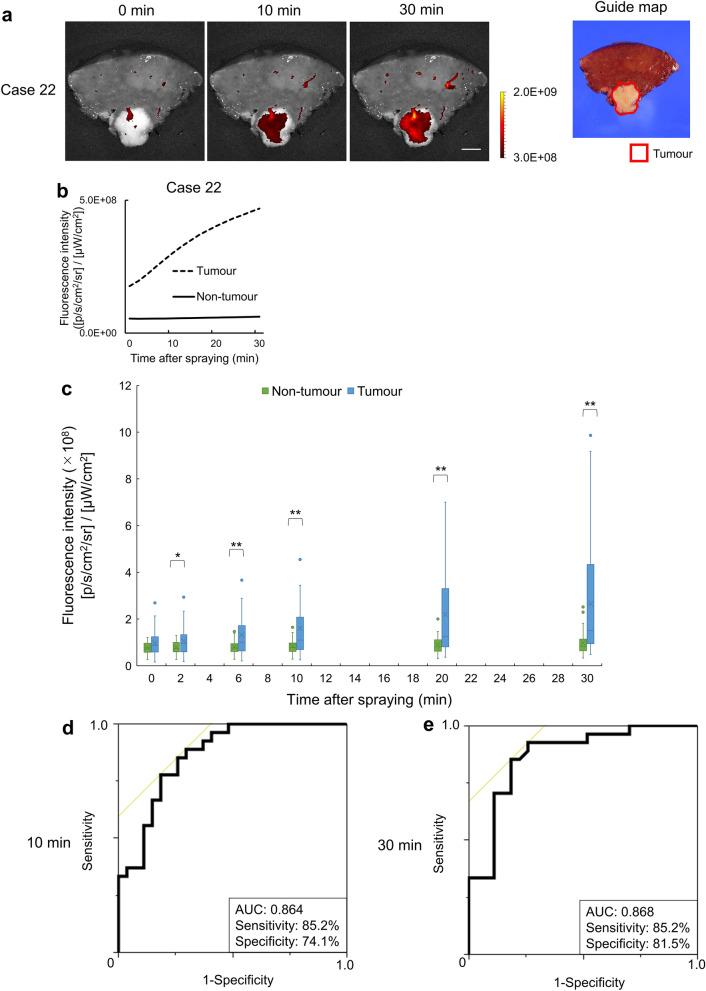

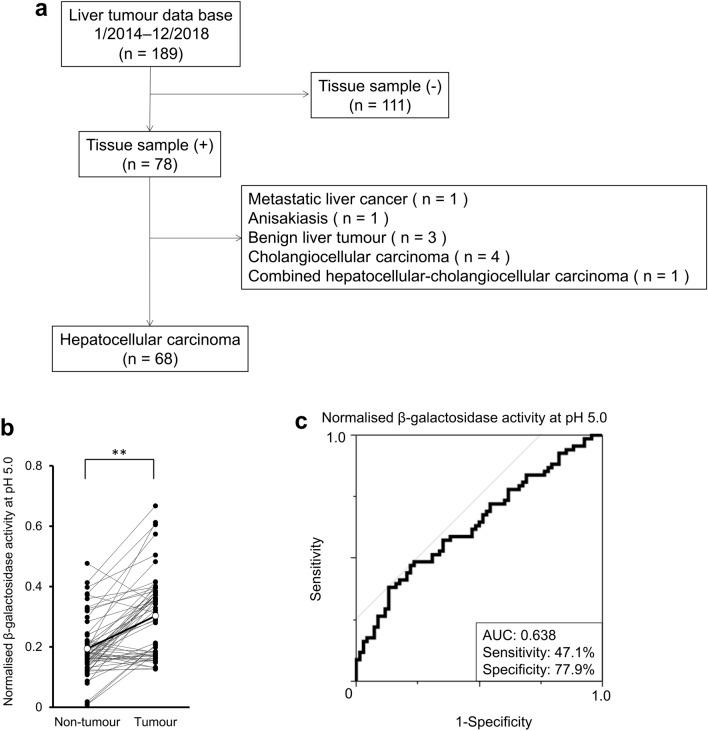

Fluorescence imaging of tumours facilitates rapid intraoperative diagnosis. Thus far, a promising activatable fluorescence probe for hepatocellular carcinoma (HCC) has not been developed. Herein, the utility of the fluorescence imaging of HCC using a β-galactosidase (β-Gal)-activatable fluorescence probe SPiDER-βGal was examined. β-Gal activity was measured in cryopreserved tissues from 68 patients. Live cell imaging of HCC cell lines and imaging of tumour-bearing model mice were performed using SPiDER-βGal. Furthermore, fluorescence imaging was performed in 27 freshly resected human HCC specimens. In cryopreserved samples, β-Gal activity was significantly higher in tumour tissues than in non-tumour tissues. Fluorescence was observed in HCC cell lines. In mouse models, tumours displayed stronger fluorescence than normal liver tissue. In freshly resected specimens, fluorescence intensity in the tumour was significantly higher than that in non-tumour liver specimens as early as 2 min after spraying. Receiver operating characteristic curves were generated to determine the diagnostic value of SPiDER-βGal 10 min after its spraying; an area under the curve of 0.864, sensitivity of 85.2%, and specificity of 74.1% were observed for SPiDER-βGal. SPiDER-βGal is useful for the rapid fluorescence imaging of HCC. Fluorescence imaging guided by SPiDER-βGal would help surgeons detect tumours rapidly and achieve complete liver resection.
肿瘤荧光成像是快速术中诊断的基础。到目前为止,尚未开发出用于肝细胞癌(HCC)的有前途的可激活荧光探针。在此,研究了使用β-半乳糖苷酶(β-Gal)激活的荧光探针 SPiDER-βGal 对 HCC 进行荧光成像的效用。在 68 名患者的冷冻组织中测量了 β-Gal 活性。使用 SPiDER-βGal 对 HCC 细胞系进行活细胞成像和荷瘤模型小鼠的成像。此外,还对 27 个新鲜切除的人 HCC 标本进行了荧光成像。在冷冻样本中,肿瘤组织中的 β-Gal 活性明显高于非肿瘤组织。在 HCC 细胞系中观察到荧光。在小鼠模型中,与正常肝组织相比,肿瘤显示出更强的荧光。在新鲜切除的标本中,在喷洒后 2 分钟内,肿瘤部位的荧光强度明显高于非肿瘤肝标本。生成了受试者工作特征曲线以确定 SPiDER-βGal 在喷洒后 10 分钟的诊断价值;SPiDER-βGal 的曲线下面积为 0.864,灵敏度为 85.2%,特异性为 74.1%。SPiDER-βGal 可用于 HCC 的快速荧光成像。SPiDER-βGal 引导的荧光成像将有助于外科医生快速检测肿瘤并实现完全肝切除。
