具有电化学修饰微电极的灵活神经探针,用于无伪影的光遗传应用。

Flexible Neural Probes with Electrochemical Modified Microelectrodes for Artifact-Free Optogenetic Applications.

机构信息

Wenzhou Institute of Hangzhou Dianzi University, Wenzhou 325038, China.

MOE Engineering Research Center of Smart Microsensors and Microsystems, School of Electronics and Information, Hangzhou Dianzi University, Hangzhou 310018, China.

出版信息

Int J Mol Sci. 2021 Oct 26;22(21):11528. doi: 10.3390/ijms222111528.


DOI:10.3390/ijms222111528
PMID:34768957
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8584107/
Abstract

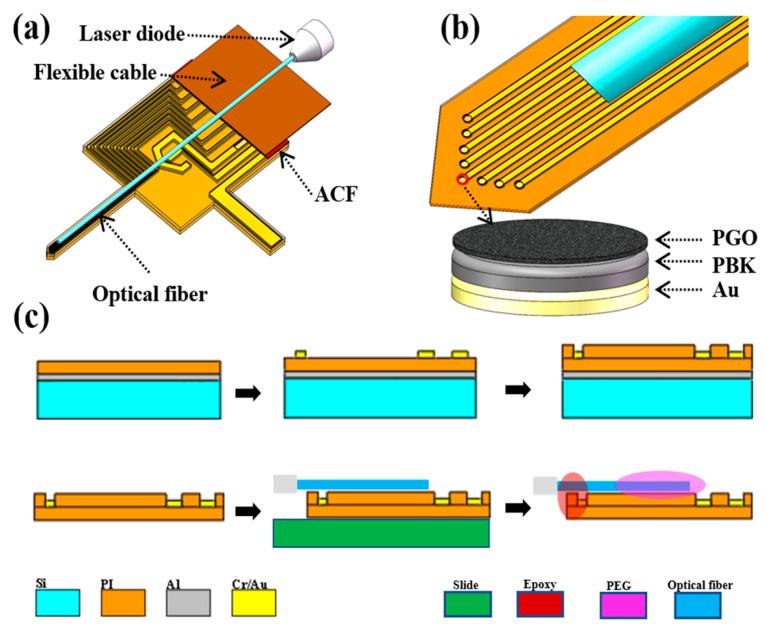

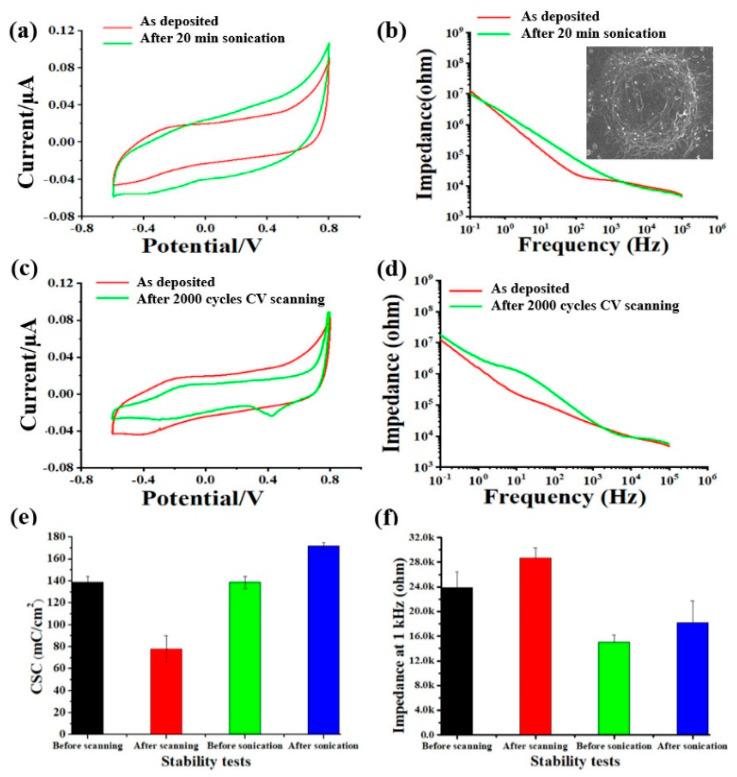

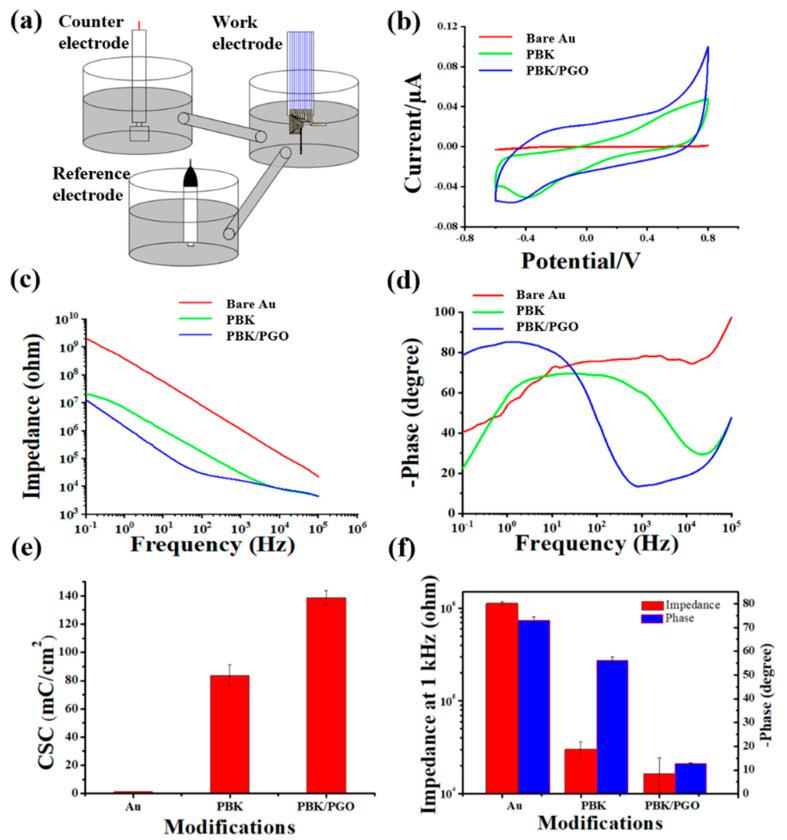

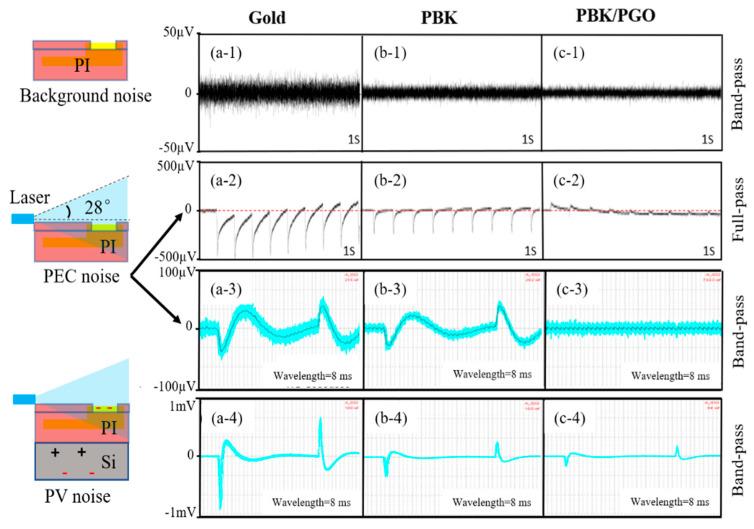

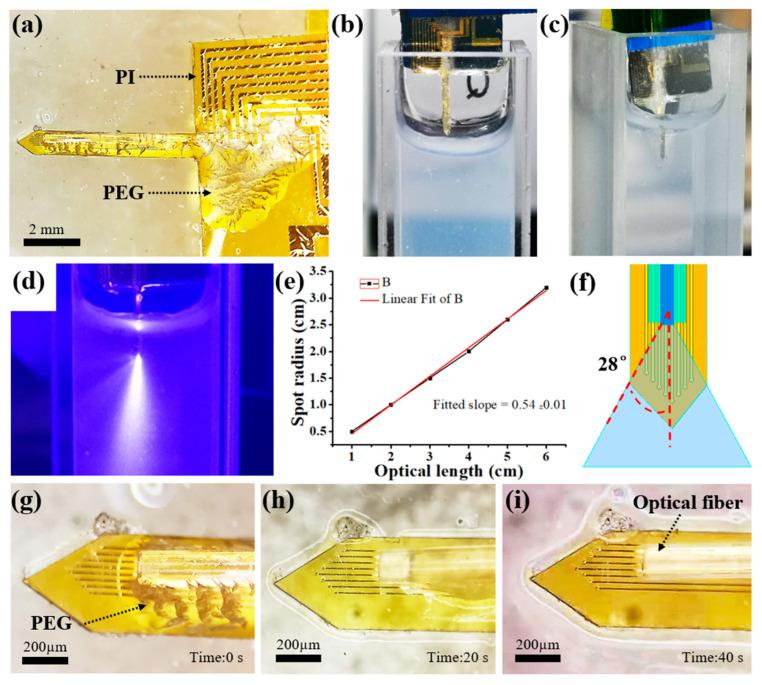

With the rapid increase in the use of optogenetics to investigate nervous systems, there is high demand for neural interfaces that can simultaneously perform optical stimulation and electrophysiological recording. However, high-magnitude stimulation artifacts have prevented experiments from being conducted at a desirably high temporal resolution. Here, a flexible polyimide-based neural probe with polyethylene glycol (PEG) packaged optical fiber and Pt-Black/PEDOT-GO (graphene oxide doped poly(3,4-ethylene-dioxythiophene)) modified microelectrodes was developed to reduce the stimulation artifacts that are induced by photoelectrochemical (PEC) and photovoltaic (PV) effects. The advantages of this design include quick and accurate implantation and high-resolution recording capacities. Firstly, electrochemical performance of the modified microelectrodes is significantly improved due to the large specific surface area of the GO layer. Secondly, good mechanical and electrochemical stability of the modified microelectrodes is obtained by using Pt-Black as bonding layer. Lastly, bench noise recordings revealed that PEC noise amplitude of the modified neural probes could be reduced to less than 50 µV and no PV noise was detected when compared to silicon-based neural probes. The results indicate that this device is a promising optogenetic tool for studying local neural circuits.

摘要

随着光遗传学在神经系统研究中的广泛应用,人们对能够同时进行光刺激和电生理记录的神经接口的需求也日益增加。然而,高强度的刺激伪影一直阻碍着实验在理想的高时间分辨率下进行。在这里,我们开发了一种基于聚酰亚胺的柔性神经探针,该探针采用聚乙二醇(PEG)封装的光纤和 Pt-Black/PEDOT-GO(掺杂氧化石墨烯的聚(3,4-亚乙基二氧噻吩))修饰的微电极,以减少光电化学(PEC)和光伏(PV)效应引起的刺激伪影。这种设计的优点包括快速、准确的植入和高分辨率的记录能力。首先,GO 层的大比表面积显著提高了修饰微电极的电化学性能。其次,通过使用 Pt-Black 作为结合层,获得了修饰微电极的良好的机械和电化学稳定性。最后,台噪声记录表明,与硅基神经探针相比,修饰后的神经探针的 PEC 噪声幅度可降低至 50µV 以下,并且未检测到 PV 噪声。结果表明,该装置是研究局部神经回路的一种很有前途的光遗传学工具。
