用于细胞内测量的电位 pH 纳米传感器:局部梯度的实时和连续评估。
Potentiometric pH Nanosensor for Intracellular Measurements: Real-Time and Continuous Assessment of Local Gradients.
机构信息
Department of Chemistry, School of Engineering Science in Chemistry, Biochemistry and Health, Royal Institute of Technology, KTH, Stockholm SE-100 44, Sweden.
Department of Chemistry and Molecular Biology, University of Gothenburg, Kemivägen 10, Gothenburg 41296, Sweden.
出版信息
Anal Chem. 2021 Nov 30;93(47):15744-15751. doi: 10.1021/acs.analchem.1c03874. Epub 2021 Nov 16.

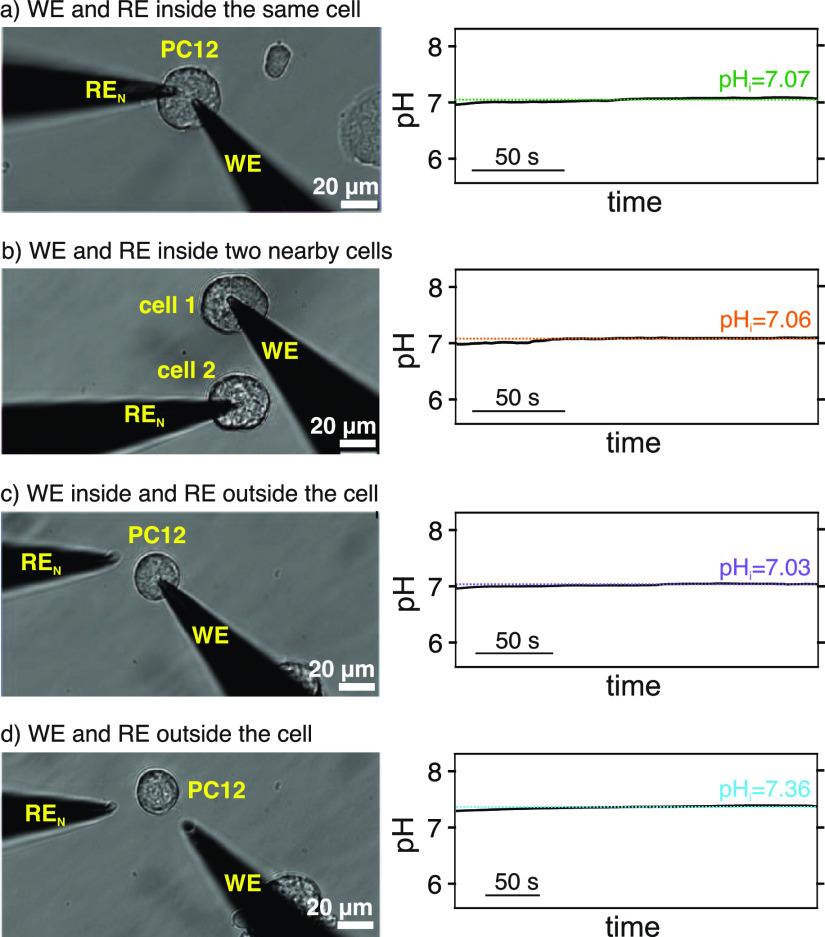

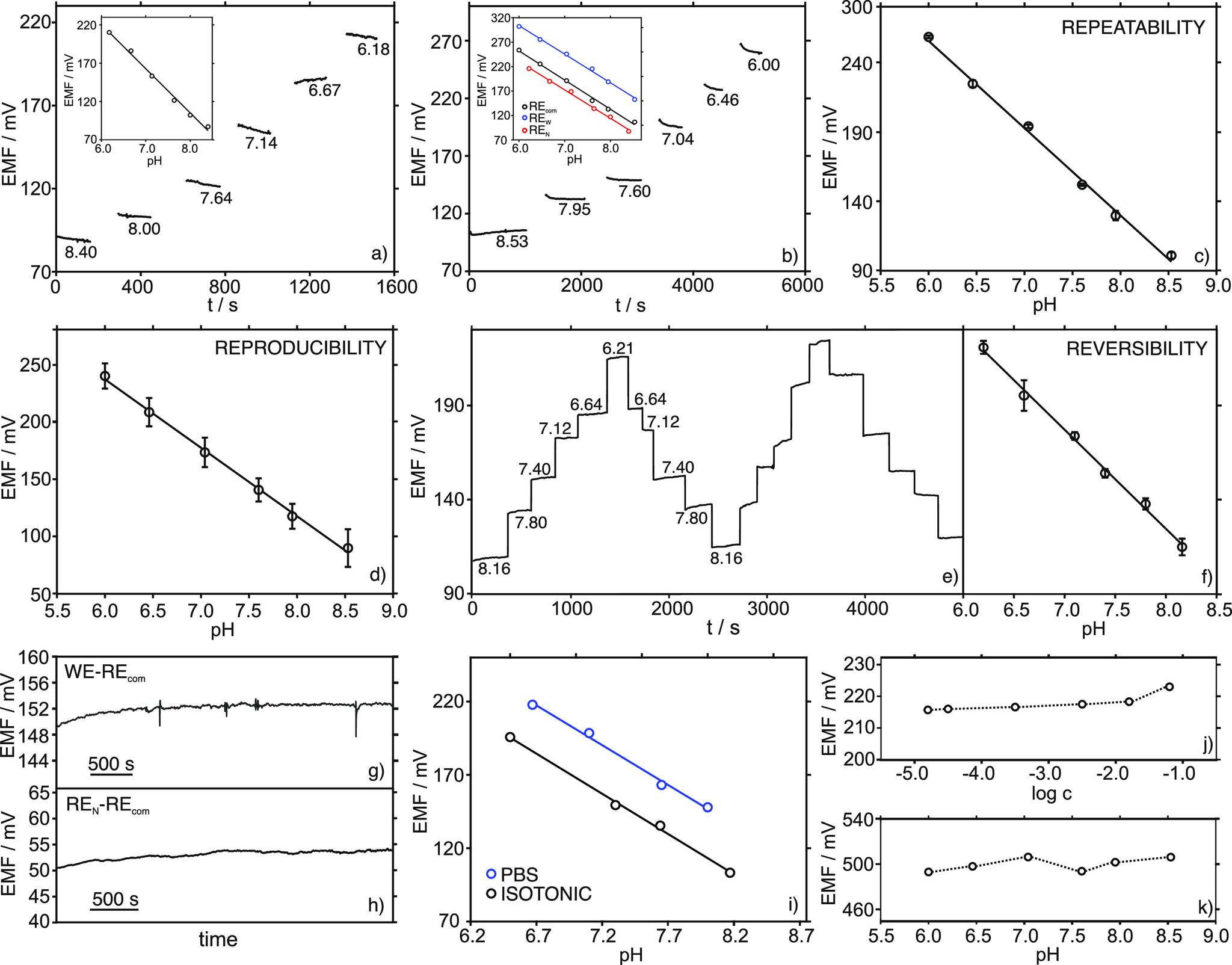

We present a pH nanosensor conceived for single intracellular measurements. The sensing architecture consisted of a two-electrode system evaluated in the potentiometric mode. We used solid-contact carbon nanopipette electrodes tailored to produce both the indicator (pH nanosensor) and reference electrodes. The indicator electrode was a membrane-based ion-selective electrode containing a receptor for hydrogen ions that provided a favorable selectivity for intracellular measurements. The analytical features of the pH nanosensor revealed a Nernstian response (slope of -59.5 mV/pH unit) with appropriate repeatability and reproducibility (variation coefficients of <2% for the calibration parameters), a fast response time (<5 s), adequate medium-term drift (0.7 mV h), and a linear range of response including physiological and abnormal cell pH levels (6.0-8.5). In addition, the position and configuration of the reference electrode were investigated in cell-based experiments to provide unbiased pH measurements, in which both the indicator and reference electrodes were located inside the same cell, each of them inside two neighboring cells, or the indicator electrode inside the cell and the reference electrode outside of (but nearby) the studied cell. Finally, the pH nanosensor was applied to two cases: (i) the tracing of the pH gradient from extra-to intracellular media over insertion into a single PC12 cell and (ii) the monitoring of variations in intracellular pH in response to exogenous administration of pharmaceuticals. It is anticipated that the developed pH nanosensor, which is a label-free analytical tool, has high potential to aid in the investigation of pathological states that manifest in cell pH misregulation, with no restriction in the type of targeted cells.
我们提出了一种用于单个细胞内测量的 pH 纳米传感器。传感结构由两电极系统组成,以电位测量模式进行评估。我们使用了固体接触碳纳米管电极,对其进行了定制,以产生指示电极(pH 纳米传感器)和参比电极。指示电极是一种基于膜的离子选择性电极,包含对氢离子有选择性的受体,为细胞内测量提供了有利的选择性。pH 纳米传感器的分析特性显示出 Nernstian 响应(斜率为-59.5 mV/pH 单位),具有适当的重复性和重现性(校准参数的变化系数<2%),快速响应时间(<5 s),适度的中期漂移(0.7 mV h),以及响应线性范围,包括生理和异常细胞 pH 水平(6.0-8.5)。此外,在基于细胞的实验中研究了参比电极的位置和配置,以提供无偏的 pH 测量,其中指示电极和参比电极都位于同一细胞内,每个电极都位于两个相邻的细胞内,或者指示电极位于细胞内,参比电极位于细胞外(但附近)。最后,pH 纳米传感器应用于两种情况:(i)在单个 PC12 细胞内插入时,从细胞外到细胞内介质的 pH 梯度的追踪;(ii)响应外源性药物给药,监测细胞内 pH 的变化。预计所开发的 pH 纳米传感器是一种无标记的分析工具,具有很高的潜力,可以帮助研究表现出细胞 pH 失调的病理状态,而不受目标细胞类型的限制。
