He Zilong, Li Yue, Zeng Weixiong, Xu Weimin, Liu Jialing, Ma Xiangyuan, Wei Jun, Zeng Hui, Xu Zeyuan, Wang Sina, Wen Chanjuan, Wu Jiefang, Feng Chenya, Ma Mengwei, Qin Genggeng, Lu Yao, Chen Weiguo
Department of Radiology, Nanfang Hospital, Southern Medical University, Guangzhou, China.
School of Computer Science and Engineering, Sun Yat-sen University, Guangzhou, China.
Front Oncol. 2021 Dec 17;11:773389. doi: 10.3389/fonc.2021.773389. eCollection 2021.

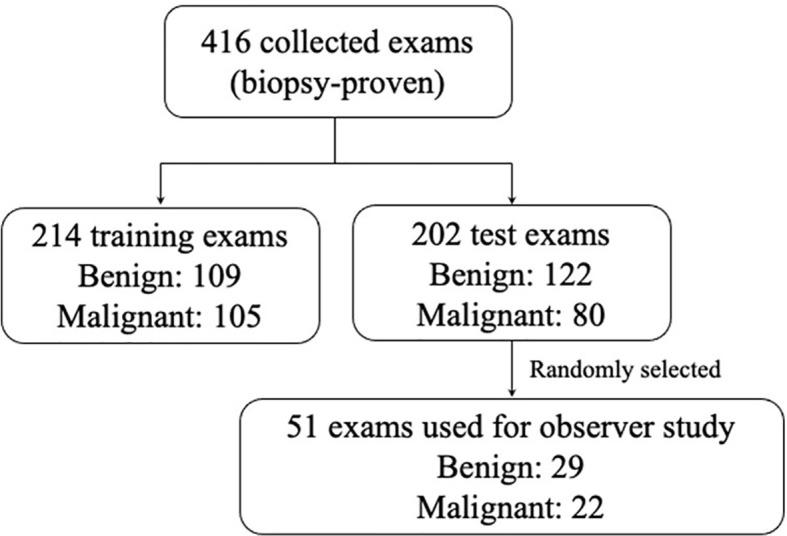

Radiologists' diagnostic capabilities for breast mass lesions depend on their experience. Junior radiologists may underestimate or overestimate Breast Imaging Reporting and Data System (BI-RADS) categories of mass lesions owing to a lack of diagnostic experience. The computer-aided diagnosis (CAD) method assists in improving diagnostic performance by providing a breast mass classification reference to radiologists. This study aims to evaluate the impact of a CAD method based on perceptive features learned from quantitative BI-RADS descriptions on breast mass diagnosis performance. We conducted a retrospective multi-reader multi-case (MRMC) study to assess the perceptive feature-based CAD method. A total of 416 digital mammograms of patients with breast masses were obtained from 2014 through 2017, including 231 benign and 185 malignant masses, from which we randomly selected 214 cases (109 benign, 105 malignant) to train the CAD model for perceptive feature extraction and classification. The remaining 202 cases were enrolled as the test set for evaluation, of which 51 patients (29 benign and 22 malignant) participated in the MRMC study. In the MRMC study, we categorized six radiologists into three groups: junior, middle-senior, and senior. They diagnosed 51 patients with and without support from the CAD model. The BI-RADS category, benign or malignant diagnosis, malignancy probability, and diagnosis time during the two evaluation sessions were recorded. In the MRMC evaluation, the average area under the curve (AUC) of the six radiologists with CAD support was slightly higher than that without support (0.896 vs. 0.850, p = 0.0209). Both average sensitivity and specificity increased (p = 0.0253). Under CAD assistance, junior and middle-senior radiologists adjusted the assessment categories of more BI-RADS 4 cases. The diagnosis time with and without CAD support was comparable for five radiologists. The CAD model improved the radiologists' diagnostic performance for breast masses without prolonging the diagnosis time and assisted in a better BI-RADS assessment, especially for junior radiologists.
放射科医生对乳腺肿块病变的诊断能力取决于其经验。初级放射科医生可能会因缺乏诊断经验而低估或高估乳腺影像报告和数据系统(BI-RADS)对肿块病变的分类。计算机辅助诊断(CAD)方法通过为放射科医生提供乳腺肿块分类参考来帮助提高诊断性能。本研究旨在评估基于从定量BI-RADS描述中学习到的感知特征的CAD方法对乳腺肿块诊断性能的影响。我们进行了一项回顾性多读者多病例(MRMC)研究,以评估基于感知特征的CAD方法。2014年至2017年共获取了416例乳腺肿块患者的数字化乳腺X线摄影图像,其中包括231例良性肿块和185例恶性肿块,我们从中随机选择214例病例(109例良性,105例恶性)来训练用于感知特征提取和分类的CAD模型。其余202例病例作为测试集进行评估,其中51例患者(29例良性和22例恶性)参与了MRMC研究。在MRMC研究中,我们将6名放射科医生分为三组:初级、中高级和高级。他们在有和没有CAD模型支持的情况下对51例患者进行了诊断。记录了两次评估期间的BI-RADS分类、良性或恶性诊断、恶性概率以及诊断时间。在MRMC评估中,有CAD支持的6名放射科医生的平均曲线下面积(AUC)略高于没有支持的情况(0.896对0.850,p = 0.0209)。平均敏感性和特异性均有所提高(p = 0.0253)。在CAD辅助下,初级和中高级放射科医生对更多的BI-RADS 4类病例调整了评估类别。5名放射科医生在有和没有CAD支持时的诊断时间相当。CAD模型提高了放射科医生对乳腺肿块的诊断性能,且未延长诊断时间,并有助于进行更好的BI-RADS评估,尤其是对初级放射科医生。
