Faculty of Kinesiology, University of Calgary, Calgary, Canada.
Elife. 2022 Jan 11;11:e65402. doi: 10.7554/eLife.65402.

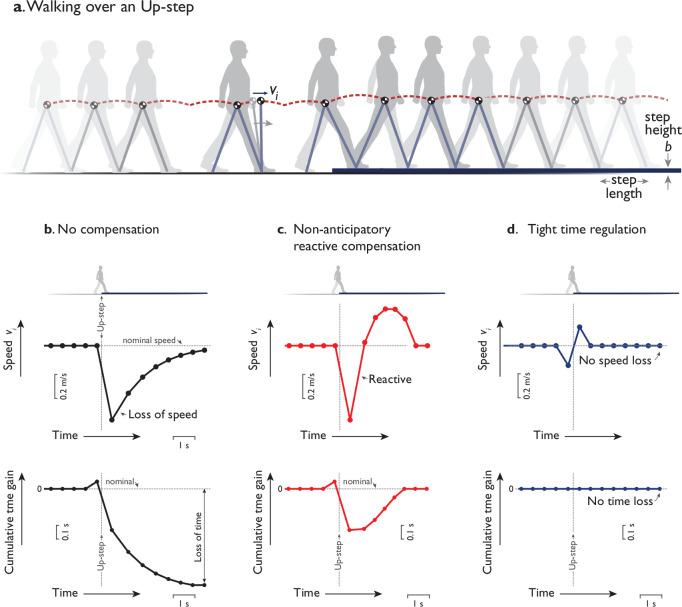

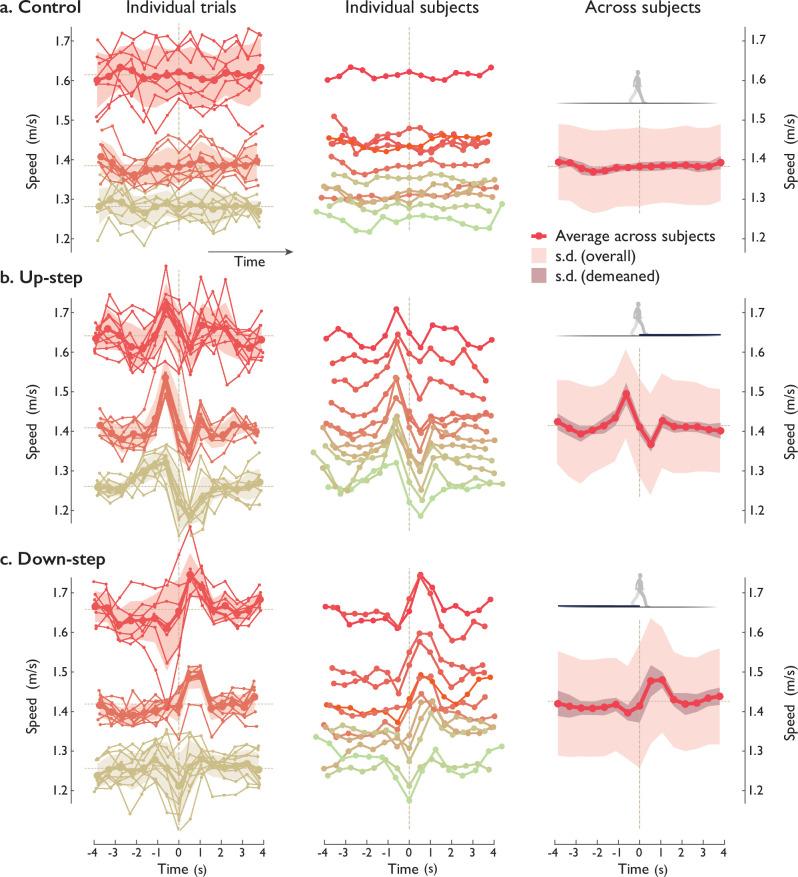

The simple task of walking up a sidewalk curb is actually a dynamic prediction task. The curb is a disturbance that could cause a loss of momentum if not anticipated and compensated for. It might be possible to adjust momentum sufficiently to ensure undisturbed time of arrival, but there are infinite possible ways to do so. Much of steady, level gait is determined by energy economy, which should be at least as important with terrain disturbances. It is, however, unknown whether economy also governs walking up a curb, and whether anticipation helps. Here, we show that humans compensate with an anticipatory pattern of forward speed adjustments, predicted by a criterion of minimizing mechanical energy input. The strategy is mechanistically predicted by optimal control for a simple model of bipedal walking dynamics, with each leg's push-off work as input. Optimization predicts a triphasic trajectory of speed (and thus momentum) adjustments, including an anticipatory phase. In experiment, human subjects ascend an artificial curb with the predicted triphasic trajectory, which approximately conserves overall walking speed relative to undisturbed flat ground. The trajectory involves speeding up in a few steps before the curb, losing considerable momentum from ascending it, and then regaining speed in a few steps thereafter. Descending the curb entails a nearly opposite, but still anticipatory, speed fluctuation trajectory, in agreement with model predictions that speed fluctuation amplitudes should scale linearly with curb height. The fluctuation amplitudes also decrease slightly with faster average speeds, also as predicted by model. Humans can reason about the dynamics of walking to plan anticipatory and economical control, even with a sidewalk curb in the way.
走上人行道路缘看似简单的任务,实际上是一个动态预测任务。路缘是一种干扰,如果没有被预测到并进行补偿,可能会导致动量损失。人们可能会通过足够的调整来保持稳定的到达时间,但有无数种可能的方法可以做到这一点。平稳的水平步态很大程度上取决于能量经济性,这在遇到地形干扰时应该至少和保持稳定一样重要。然而,目前还不清楚能量经济性是否也决定了上人行道路缘的步态,以及是否需要进行预测。在这里,我们展示了人类通过一种预测机械能量输入最小化的速度调整的预期模式来进行补偿。该策略通过对简单的双足步行动力学模型的最优控制进行机械预测,以每条腿的蹬地力为输入。优化预测了速度(因此也是动量)调整的三相轨迹,包括一个预期阶段。在实验中,人类受试者以上述预测的三相轨迹走上人工路缘,与在未受干扰的平地相比,该轨迹大致保持了整体行走速度。该轨迹包括在接近路缘前几步中加速,在上坡过程中失去相当大的动量,然后在之后的几步中恢复速度。下坡则需要一个几乎相反但仍然是预期的速度波动轨迹,这与模型预测一致,即速度波动幅度应与路缘高度呈线性比例。波动幅度也会随着平均速度的增加而略有减小,这也与模型的预测一致。即使人行道路缘在前面,人类也可以通过推理行走的动力学来规划预期和经济的控制。
