Kozicki Mateusz
Building Research Institute, Filtrowa 1 Street, 00-611 Warsaw, Poland.
Materials (Basel). 2022 Jan 26;15(3):959. doi: 10.3390/ma15030959.

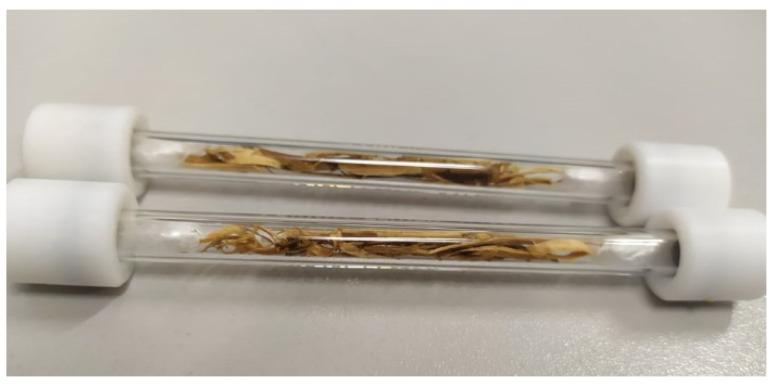

The adopted TD-GC-MS/O method helps determine the correlation between the odour signals and compounds separated on the chromatographic column, from the analysed gas mixture. It is possible to compare the retention times at which the odour signals were identified with the retention time of eluting compounds, when the test system and matrix are known. The presented study describes the details of representative samples obtained from (1) indoor air samples from a room where floor materials containing bitumen are present, (2) wooden floor staves placed in an emission chamber, and (3) fragments (chips) of the materials mentioned above, placed in glass tubes, exposed to an elevated desorption temperature. The results, presented in the paper, describe the identified odours and their intensity and assign chemical compounds to each odour, indicating their likely source of origin. The results presented in the manuscript are intended to show what methodology can be adopted to obtain intense odours from the tested samples, without losing the sensitivity derived from GC-MS. The manuscript presents representative results-case studies. The results for various types of samples were not very reproducible, related to the complex matrix of bituminous products. The enormity of compounds present in tar adhesives makes it possible to indicate only the groups of compounds that emit from these systems. They include, primarily, aliphatic, aromatic and heteroaromatic hydrocarbons, particularly Naphthalene and Phenol derivatives.
所采用的热脱附-气相色谱-质谱联用/嗅辨法有助于确定气味信号与从分析气体混合物中在色谱柱上分离出的化合物之间的相关性。当测试系统和基质已知时,可以将识别出气味信号的保留时间与洗脱化合物的保留时间进行比较。本研究描述了从以下方面获得的代表性样品的详细信息:(1)来自存在含沥青地板材料房间的室内空气样品;(2)放置在排放室中的木地板条;(3)上述材料的碎片(木屑),放置在玻璃管中,暴露于升高的解吸温度下。论文中呈现的结果描述了识别出的气味及其强度,并为每种气味确定化学化合物,指出其可能的来源。手稿中呈现的结果旨在展示可以采用何种方法从测试样品中获得强烈气味,同时又不损失气相色谱-质谱联用仪的灵敏度。手稿展示了代表性结果——案例研究。由于沥青产品的基质复杂,各类样品的结果不太具有可重复性。焦油胶粘剂中存在的大量化合物使得只能指出从这些体系中释放出的化合物类别。它们主要包括脂肪族、芳香族和杂芳香族烃类,特别是萘和酚的衍生物。
